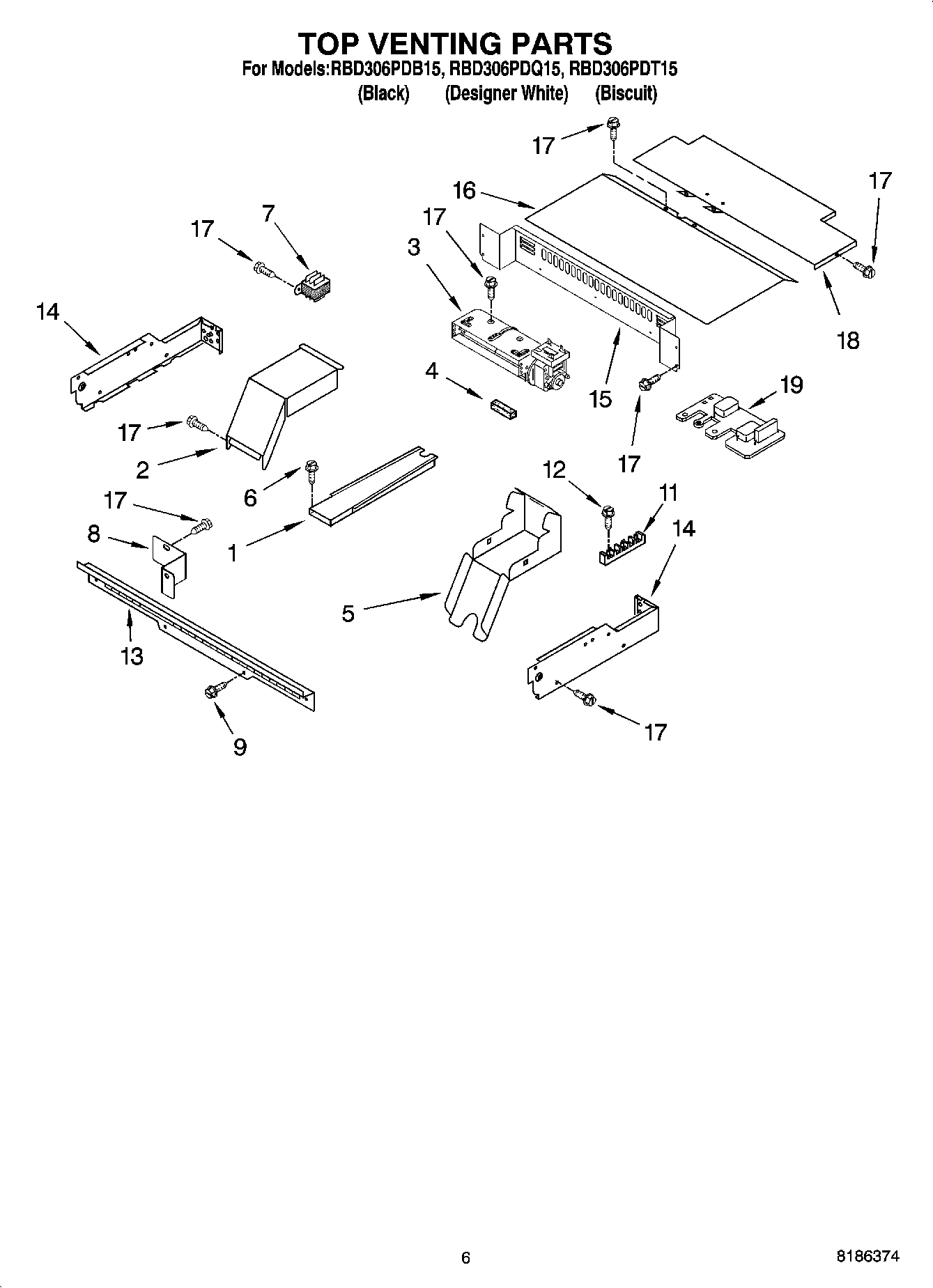

RBD306PDQ15 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI120486A
	Wire (12 Ga. 150 c Black)
	8301909 Whirlpool Oven Wire Harness
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	WPL ARI120485A
	WPL ARI120484A
	WPL 8301877
	261900 Whirlpool Microwave Spray
	WPL ARI120487A
	4451761 Whirlpool Oven Support Bracket
	WPL 591014
	1
	242831 Whirlpool Oven Wire
	Spacer, Harness
	4448664 Whirlpool Oven Mounting Bracket
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	WP112432 Whirlpool Nut Assembly
	WP4449809 Whirlpool Screw
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	4450800 Whirlpool Oven Screw
	WPW10339879 Whirlpool Wire Tie
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	16515 Whirlpool Clip
	WP482338 Whirlpool Refrigerator Adhesive
	Conduit, Double
	WP4448950 Whirlpool Screw
	814381 Whirlpool Pin
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	WPW10176670 Whirlpool Blower
3	WPW10016550 Whirlpool Blower Cooling Fan
4	W10491987 Whirlpool Foam Seal
5	4455177 Whirlpool Oven Bottom Elbow
6	Screw
7	Transformer, Control
8	8302390 Whirlpool Support Bracket
9	WP4450038 Whirlpool Screw
11	WP8203546 Whirlpool Terminal Block
12	Screw
13	Vent, Control Panel
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
15	Back, Control
16	WP4450551 Whirlpool Top Cabinet
18	WP4452367 Whirlpool Top Cover
19	SUPPRESSOR
