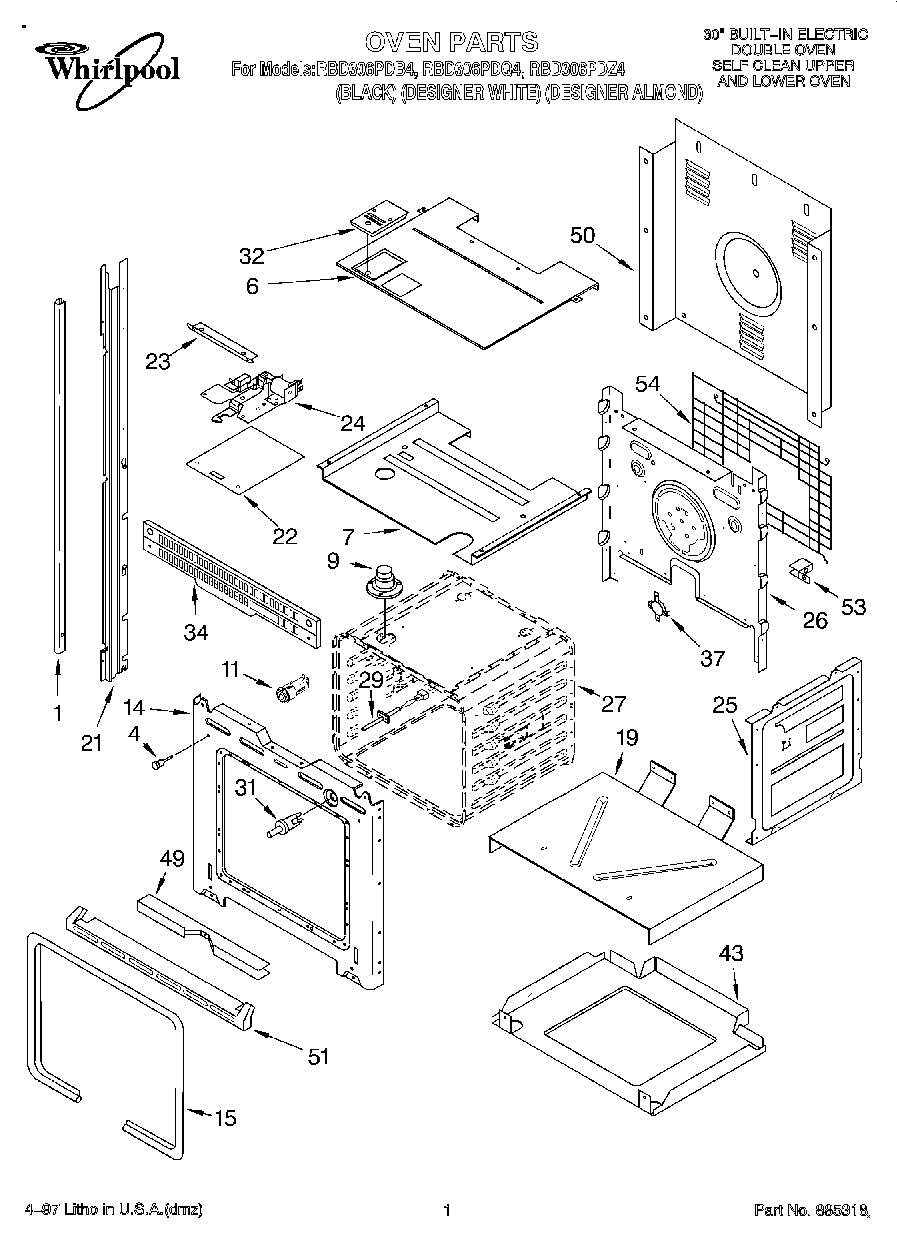

RBD306PDQ4 01 – OVEN

RBD306PDQ4 01 – OVEN

Written by

in

RBD306PDQ4 01 – OVEN

Products

PositionProduct
1Trim, Side (Left Hand)) (White Model)
1Trim, Side (Left Hand)) (Almond Model)
1Trim, Side (Right Hand) (Almond Model)
1Trim, Side (LH Black)
1Trim, Side (Right Hand) (White Model)
1Trim, Side (RH Black)
1Trim, Side (White)
1WP8281236 Whirlpool Screw
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Partition
9Tube, Vent
11WPW10734065 Whirlpool Light
14WP4450118 Whirlpool Nut
14Frame, Front
14Screw
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
21814373 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814374 Whirlpool Oven Rail Mount
22Trim, Bottom (Screw)
22Shield, Latch
23Deflector, Latch
24Latch Assy
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
31Switch, Door
32Vent Box Assy
34Vent, Center
37WP4450249 Whirlpool Thermostat
37WP4450934 Whirlpool Thermostat Assembly
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50Cover, Back
51WPL 4448862
51WPL 4448477
51WPL 4448478
51Screw, (2)
53WPL 4449845
54Spacer, Harness
54WPL 4450365
54W11684730 Whirlpool Insulation
54WP4449809 Whirlpool Screw
