RBD306PDT11 01 – OVEN, LITERATURE

Products

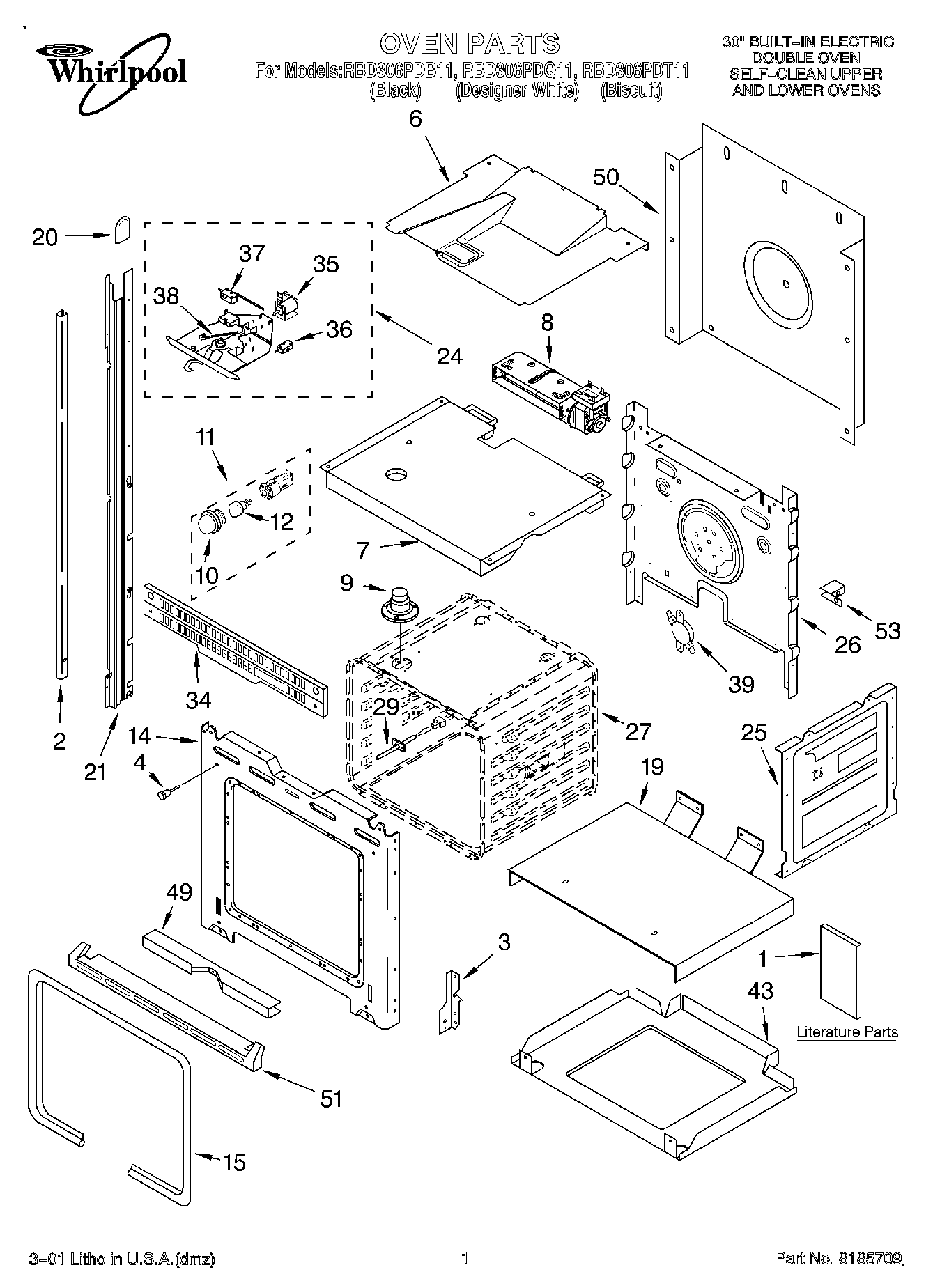

PositionProduct
1Safer Cooking Tips
1Literature Parts (Use & Care Guide (Oven))
1Literature Parts (Tech Sheet)
1Literature Parts (Installation Instructions)
2Trim, Side (Left Hand)) (White Model)
2Trim, Side (LH Black)
2Trim, Side (RH Biscuit)
2Trim, Side (Right Hand) (White Model)
2Trim, Side (RH Black)
2Trim, Side (White)
2Trim, Side (LH Biscuit)
2WP8281236 Whirlpool Screw
3Reciever, Hinge (Left Hand)
3Reciever, Hinge (Right Hand)
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Top, Chassis
8WPW10016550 Whirlpool Blower Cooling Fan
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Screw
14Frame, Front
14WP4450118 Whirlpool Nut
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
20Cap, Spacer
21814373 Whirlpool Oven Rail Mount
21814374 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
24Latch Assembly
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29WPW10131825 Whirlpool Oven Temperature Sensor
34Vent, Center
35Solenoid
36Microswitch N.C.
37Microswitch
38Spring, Latch
39WP9759242 Whirlpool Thermostat
39WP9759243 Whirlpool Thermostat
43WPL 4455530
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51WPL 4452415
51WP3400832 Whirlpool Screw
51WPL 4448478
51WPL 4448477
53W11684730 Whirlpool Insulation
53WPL 4449845
53WP4449809 Whirlpool Screw
53WPL 4450365
