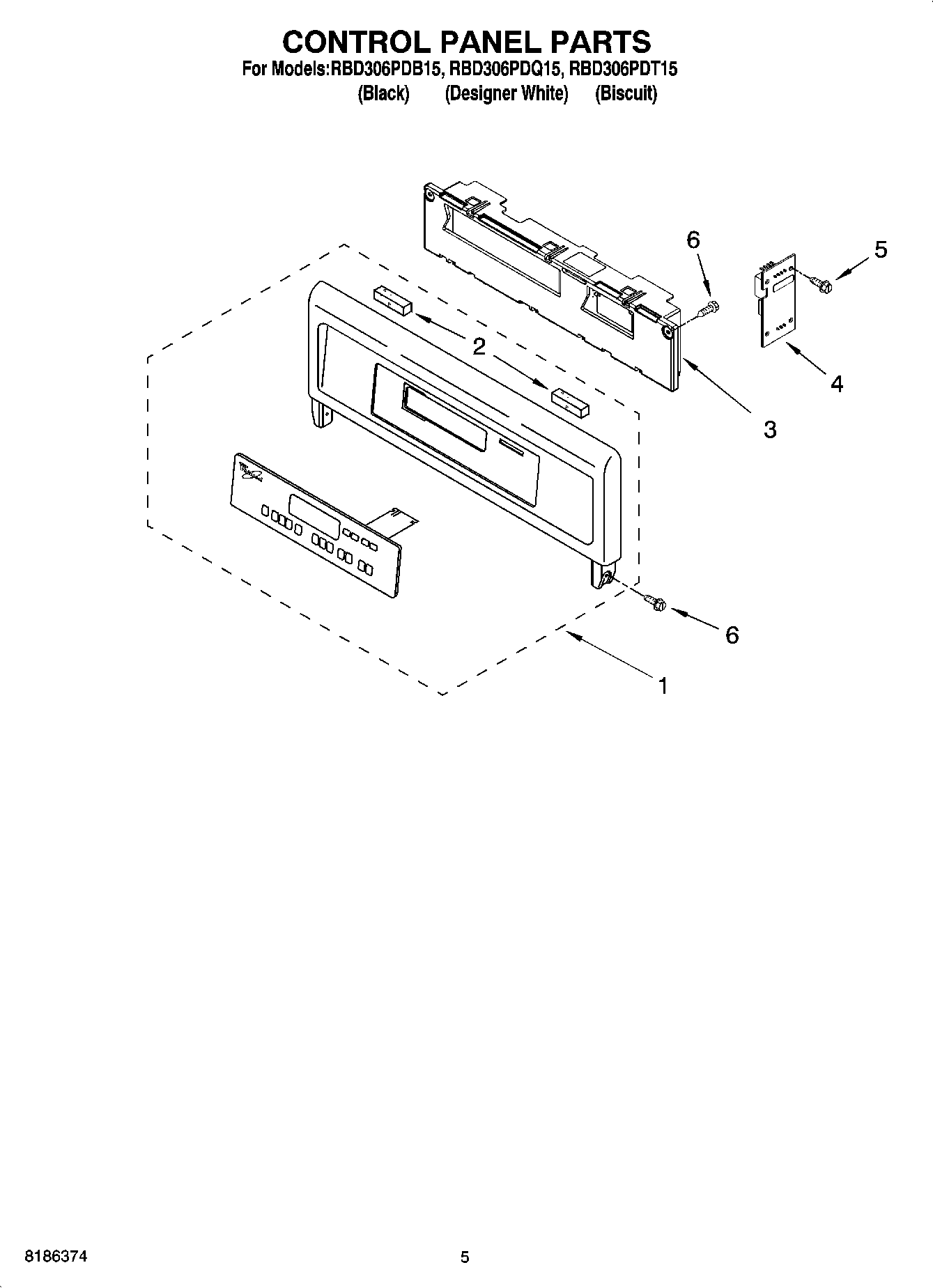

RBD306PDT15 04 – CONTROL PANEL PARTS

RBD306PDT15 04 – CONTROL PANEL PARTS

Written by

in

RBD306PDT15 04 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel Assy. W/Membrane Switch (Black Model)
1Control Panel Assy. W/Membrane Switch (White Model)
1Control Panel Assy. W/Membrane Switch (Biscuit Model)
2Gasket, Control Panel
3Assy, Control
4Latch, Sister Board
5WP4449745 Whirlpool Screw
6WP3400832 Whirlpool Screw
