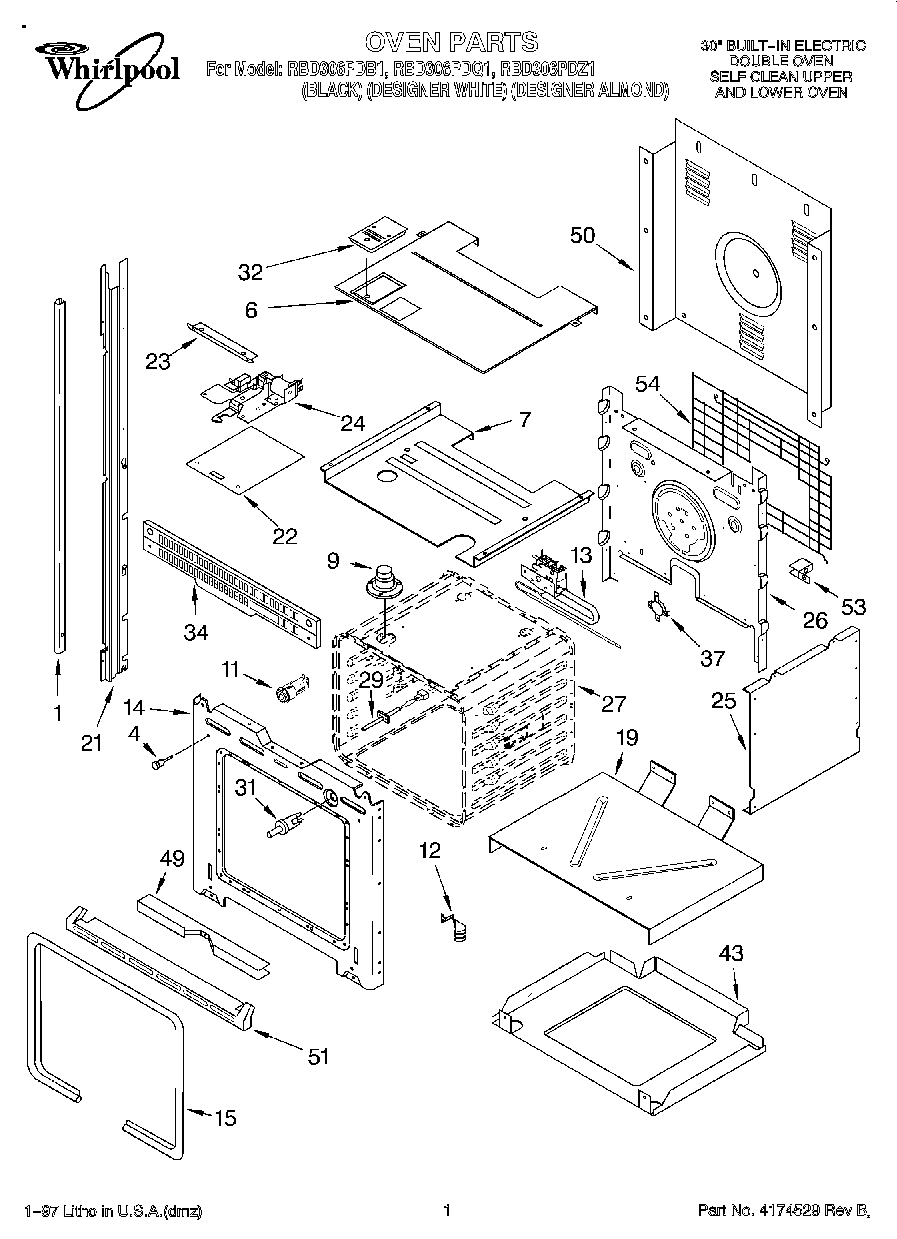

RBD306PDZ1 01 – OVEN

Products

PositionProduct
1Trim, Side (Left Hand)) (White Model)
1WP8281236 Whirlpool Screw
1Trim, Side (White)
1Trim, Side (Left Hand)) (Almond Model)
1Trim, Side (Right Hand) (Almond Model)
1Trim, Side (RH Black)
1Trim, Side (Right Hand) (White Model)
1Trim, Side (LH Black)
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Partition
9Tube, Vent
11WPW10734065 Whirlpool Light
1298005642 Whirlpool Clip
13Safety Switch (Oven Temp)
14Screw
14Frame, Front
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
21814373 Whirlpool Oven Rail Mount
21814374 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
22Shield, Latch
22Trim, Bottom (Screw)
23Deflector, Latch
24Latch, Assy
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
31Switch, Door
32Vent Box Assy
34WP4450934 Whirlpool Thermostat Assembly
34Vent, Center
34WP4450249 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50Cover, Back
51WPL 4448862
51WPL 4448477
51WPL 4448478
53WPL 4449845
54WP4449809 Whirlpool Screw
54Spacer, Harness
54WPL 4450365
54W11684730 Whirlpool Insulation
