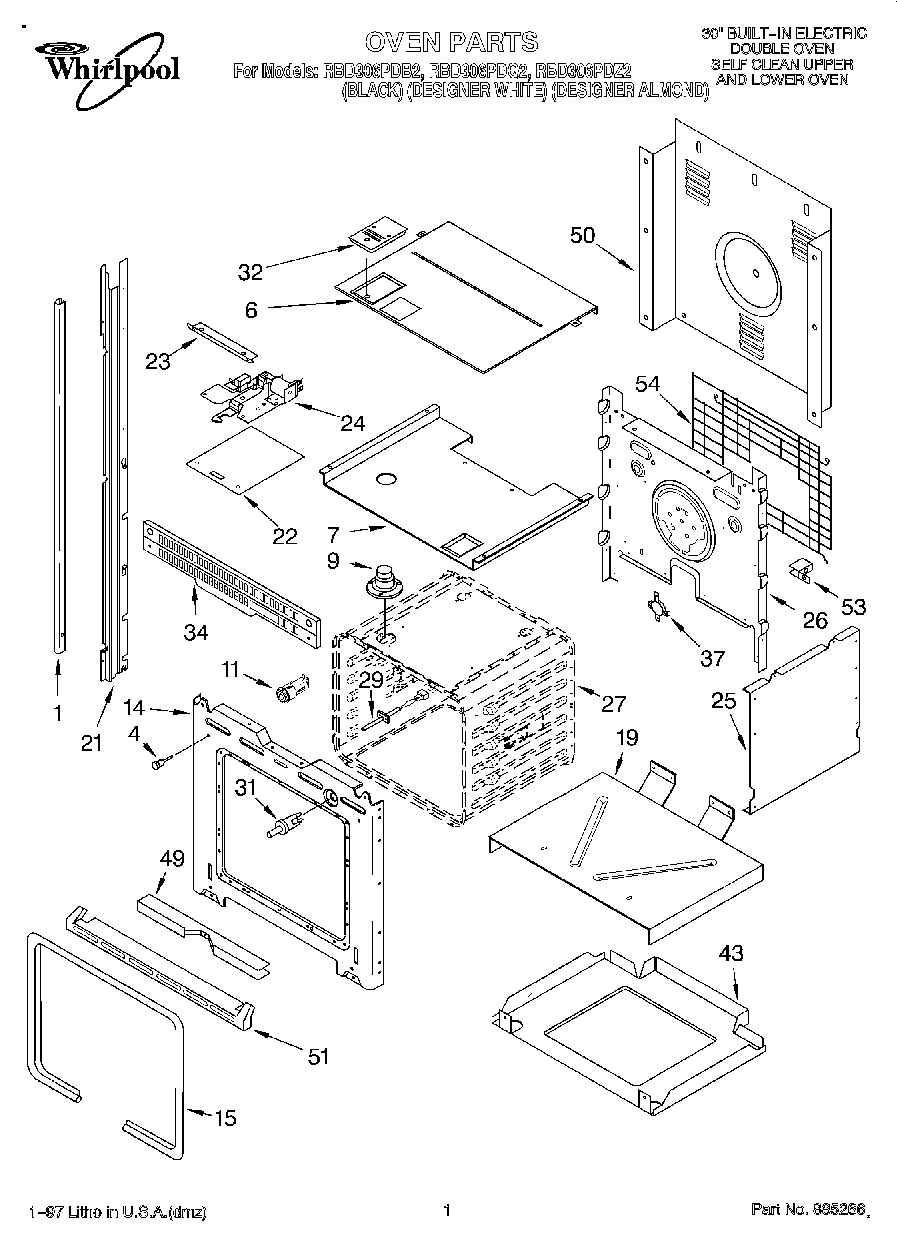

RBD306PDZ2 01 – OVEN

Products

Position	Product
1	Trim, Side (RH Black)
1	Trim, Side (Left Hand)) (Almond Model)
1	Trim, Side (Right Hand) (Almond Model)
1	Trim, Side (Left Hand)) (White Model)
1	Trim, Side (LH Black)
1	Trim, Side (Right Hand) (White Model)
1	Trim, Side (White)
1	WP8281236 Whirlpool Screw
4	4448520 Whirlpool Oven Bumper
6	Divider, Vent
7	Partition
9	Tube, Vent
11	WPW10734065 Whirlpool Light
14	Screw
14	Frame, Front
15	W11675844 Whirlpool Oven Gasket
19	Support, Insulation
21	814373 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
21	814374 Whirlpool Oven Rail Mount
22	Trim, Bottom (Screw)
22	Shield, Latch
23	Deflector, Latch
24	Latch Assy
25	Side, Chassis (R.H. & L.H.)
26	Back, Module
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
31	Switch, Door
32	Vent Box Assy
34	Vent, Center
37	WP4450934 Whirlpool Thermostat Assembly
37	WP4450249 Whirlpool Thermostat
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	Cover, Back
51	WPL 4448862
51	WPL 4448478
51	WPL 4448477
53	WPL 4449845
54	Spacer, Harness
54	W11684730 Whirlpool Insulation
54	WP4449809 Whirlpool Screw
54	WPL 4450365
