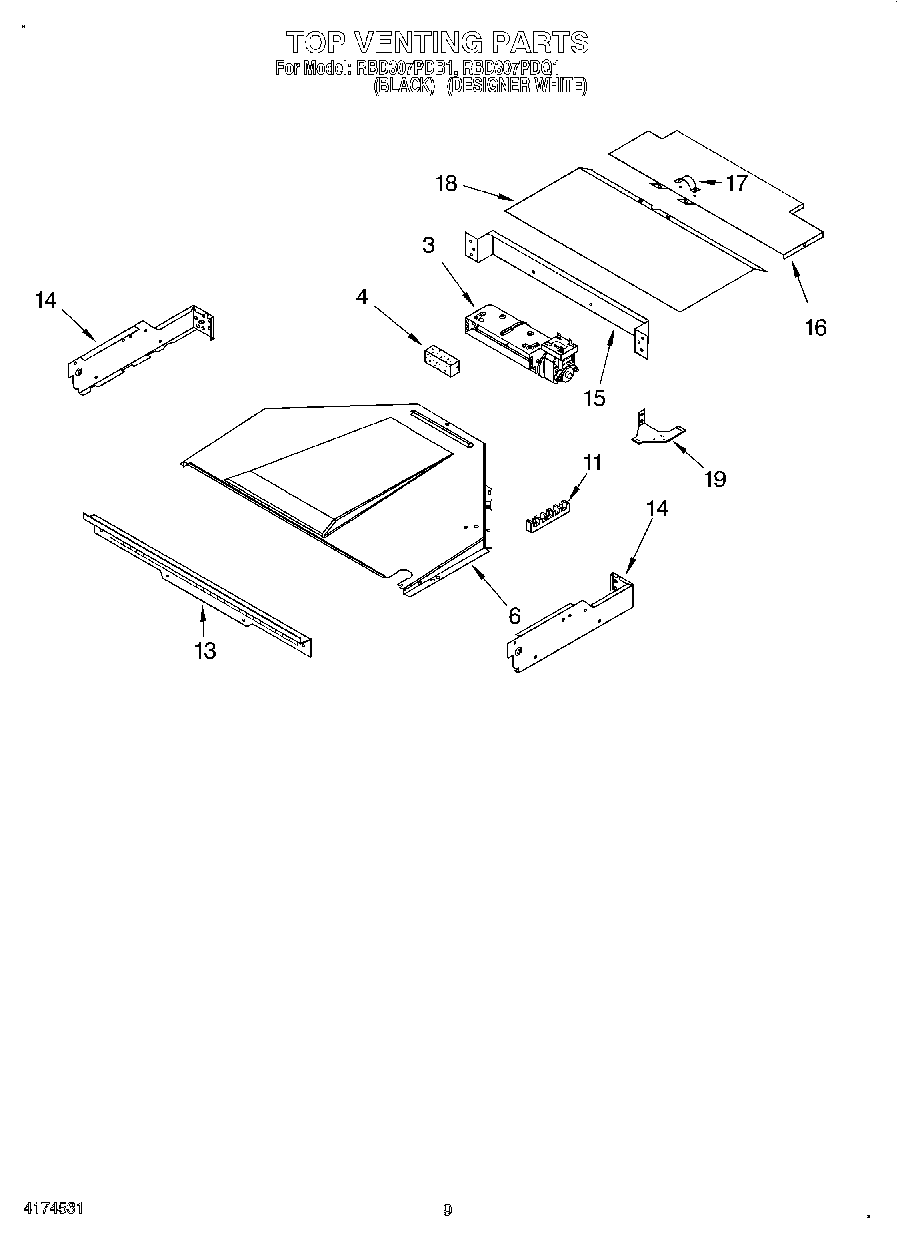

RBD307PDQ1 07 – TOP VENTING, OPTIONAL

Products

Position	Product
3	Blower
4	Seal, Foam
6	Exhaust Duct
11	WP8203546 Whirlpool Terminal Block
11	WP3387230 Whirlpool Screw
13	WP4450038 Whirlpool Screw
13	Vent, Control Panel
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
15	Back, Control
16	WP4450551 Whirlpool Top Cabinet
18	WP4452367 Whirlpool Top Cover
19	18 Ga. 80~c Rating (Red)
19	Wire (14 Ga. 200 c Brown)
19	Bracket, Blower
19	1
19	WPL 591014
19	Harness, Wire (Door Switch)
19	Harness, Wire (Latch)
19	Roll Tape, Exhaust Duct
19	261900 Whirlpool Microwave Spray
19	WP4451042 Whirlpool Thermal Fuse
19	Harness, Wire (Main)
19	Wire (12 Ga. 150 c Black)
19	Wire (14 Ga. 150 c Yellow)
19	Wire (14 Ga. 150 c Orange)
19	4450800 Whirlpool Oven Screw
19	4448664 Whirlpool Oven Mounting Bracket
19	Wire, 25`` Roll (White 14 GA.)
19	Wire, 25` Roll (Red 14 Ga.)
19	Wire, 25` Roll (Black 14 Ga.)
19	350930 Whirlpool White Spray Paint
19	WP112432 Whirlpool Nut Assembly
19	WP488366 Whirlpool Refrigerator Clamp
19	WP4449809 Whirlpool Screw
19	285006 Whirlpool Spray
19	72032 Whirlpool Touch Up Paint Black
19	Wire (14 Ga. 150 c Green)
19	Wire (14 Ga. 150 c Brown)
19	Wire (14 Ga. 150 c Blue)
19	WP261869 Whirlpool Microwave Paint
19	242831 Whirlpool Oven Wire
19	Conduit, Double
19	WP4448950 Whirlpool Screw
19	814381 Whirlpool Pin
19	WP482338 Whirlpool Refrigerator Adhesive
19	72017 Whirlpool Appliance Touch-Up Paint White
