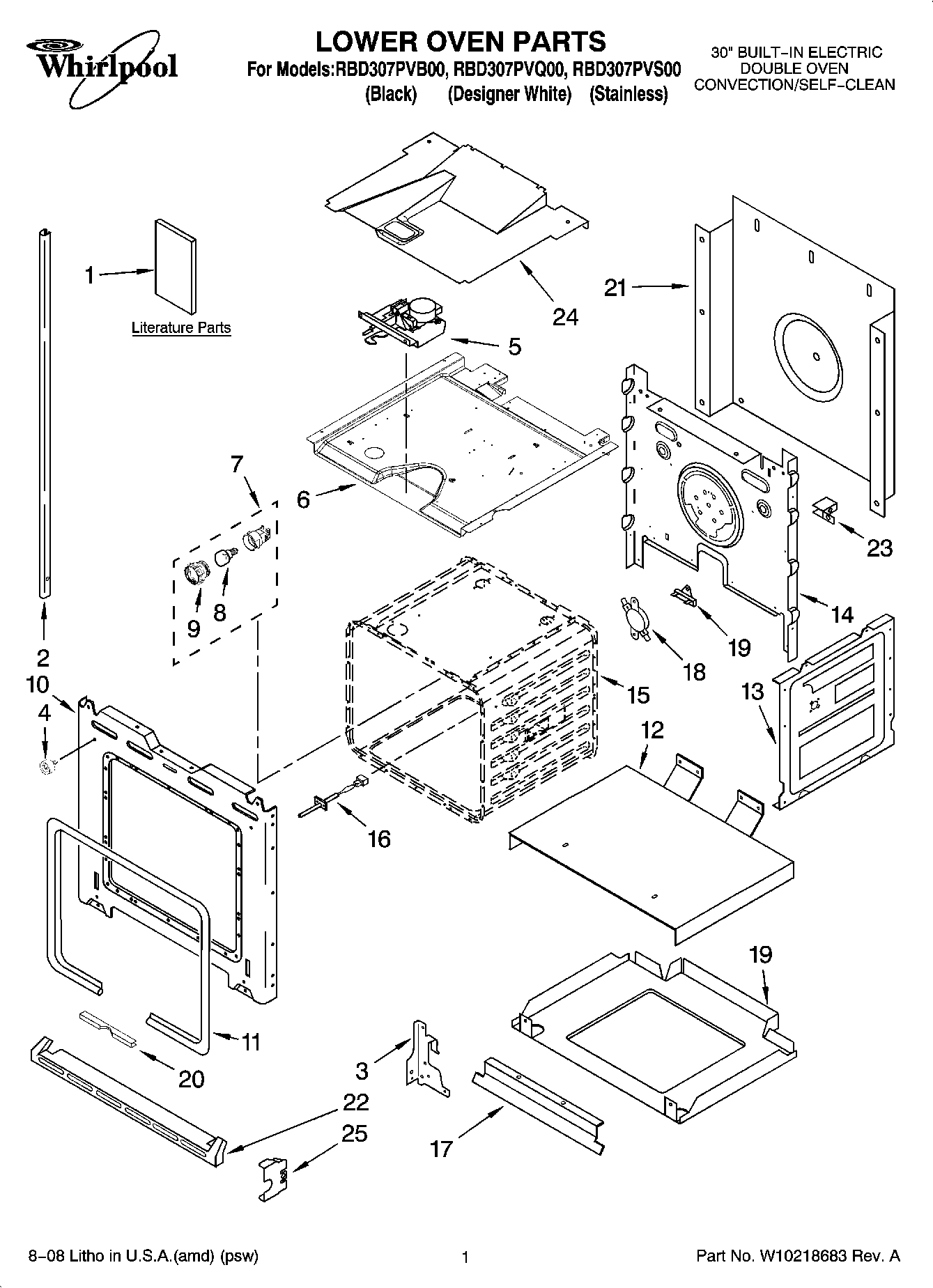

RBD307PVB00 01 – LOWER OVEN PARTS

Products

Position	Product
	WPL 4450365
	W11684730 Whirlpool Insulation
	Insulation
	Following Parts Not Illustrated
1	Tech Sheet (Oven)
1	Installation Instructions
1	Use & Care Guide
2	Trim, Side Right (White)
2	Trim, Side Right (Stainless)
2	TRIM, SIDELEFT (STAINLESS)
2	WPW10339500 Whirlpool Trim
2	WPW10339502 Whirlpool Trim Kit
2	WPW10339499 Whirlpool Trim Assembly
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	W10105790 Whirlpool Bumper
5	WP9760889 Whirlpool Door Latch
6	Top Chassis
7	WPW10734065 Whirlpool Light
8	WP4173175 Whirlpool Light Bulb
9	Lens, Light (2)
10	Screw
10	WPW10115831 Whirlpool Front Frame
10	WP4450118 Whirlpool Nut
11	W11675844 Whirlpool Oven Gasket
12	Support, Insulation
13	W10782197 Whirlpool Side Panel
14	Back, Chassis
15	Liner, Oven (Not serviceable)
16	WPW10131825 Whirlpool Oven Temperature Sensor
17	9760677 Whirlpool Oven Vent Deflector
18	WP9759242 Whirlpool Thermostat
19	Base, Chassis
20	WP4448933 Whirlpool Retainer
20	WP4449154 Whirlpool Screw
21	WP4451747 Whirlpool Rear Cover
22	Trim, Bottom Vent
22	WP3400832 Whirlpool Screw
22	WPW10207689 Whirlpool Trim Kit
23	WP4449809 Whirlpool Screw
23	WPL 4449845
24	Divider, Vent
25	4452152 Whirlpool Oven Mounting Bracket
