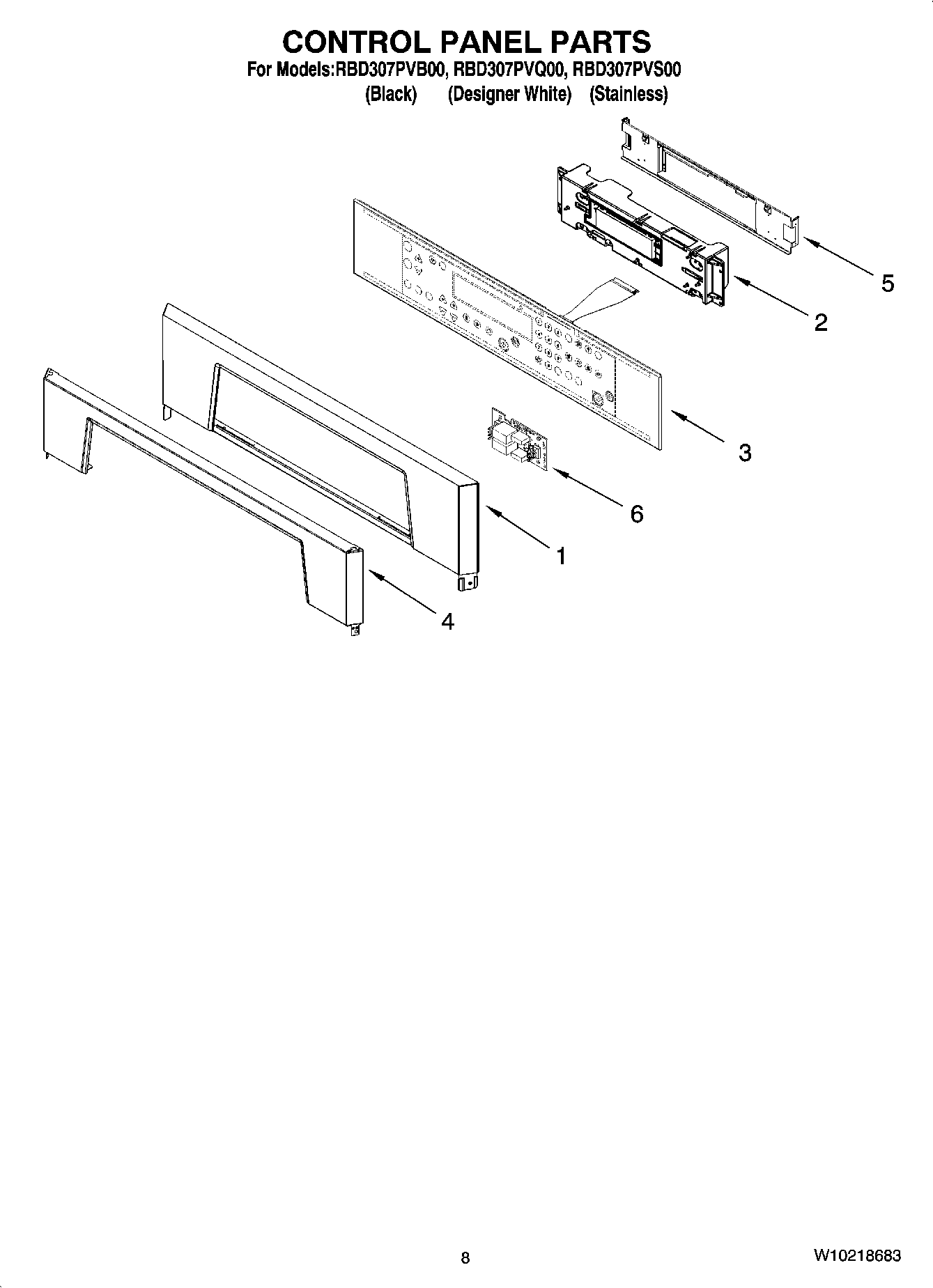

RBD307PVB00 06 – CONTROL PANEL PARTS

RBD307PVB00 06 – CONTROL PANEL PARTS

Written by

in

RBD307PVB00 06 – CONTROL PANEL PARTS

Products

PositionProduct
1WP8302848 Whirlpool Control Panel
1WP8302849 Whirlpool Control Panel
2Assy, Control
3Assembly, Membrane (White)
3Assembly, Membrane (Black)
4WPW10172165 Whirlpool Trim Panel
4Trim, Control Panel (White)
4WPW10172167 Whirlpool Trim Panel
5Backer, Control Panel
6Latch, Sister Board
