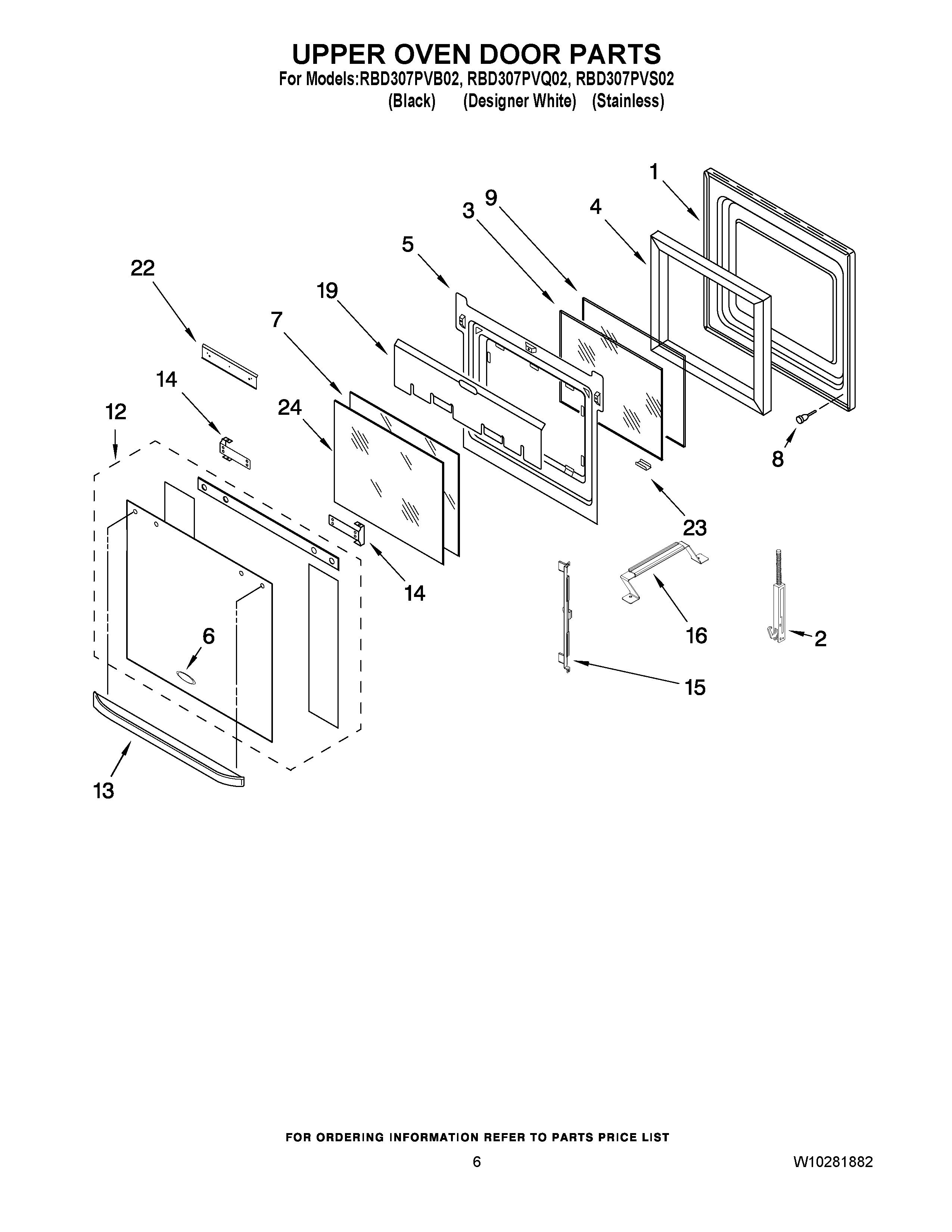

RBD307PVB02 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	Hinge, Door (For Stainless Model Only) (Right)
2	WP9760576 Whirlpool Door Hinge (Left)
2	HINGE-DOOR LH/SS DOOR SPRING
2	WP4449743 Whirlpool Screw
2	HINGE-DOOR
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	WP4457132 Whirlpool Retainer
6	NAMEPLATE
7	WP9759225 Whirlpool Inner Door Glass
8	4448520 Whirlpool Oven Bumper
9	Glass, Inner
12	Assembly, Door Glass (White)
12	Assembly, Door Glass (Black)
12	W10401225 Whirlpool Oven Outer Door Glass
13	Door Handle (Black)
13	Door Handle (White)
13	Door Handle (Stainless)
14	Bracket, Handle (L.Hand)
14	4455803 Whirlpool Oven Bracket
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	SHIELD, HEAT TOP
19	WP4449809 Whirlpool Screw
22	4457114 Whirlpool Oven Heat Shield
23	Retainer, Clip (Stainless)
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
24	WP9759227 Whirlpool Glass Door
