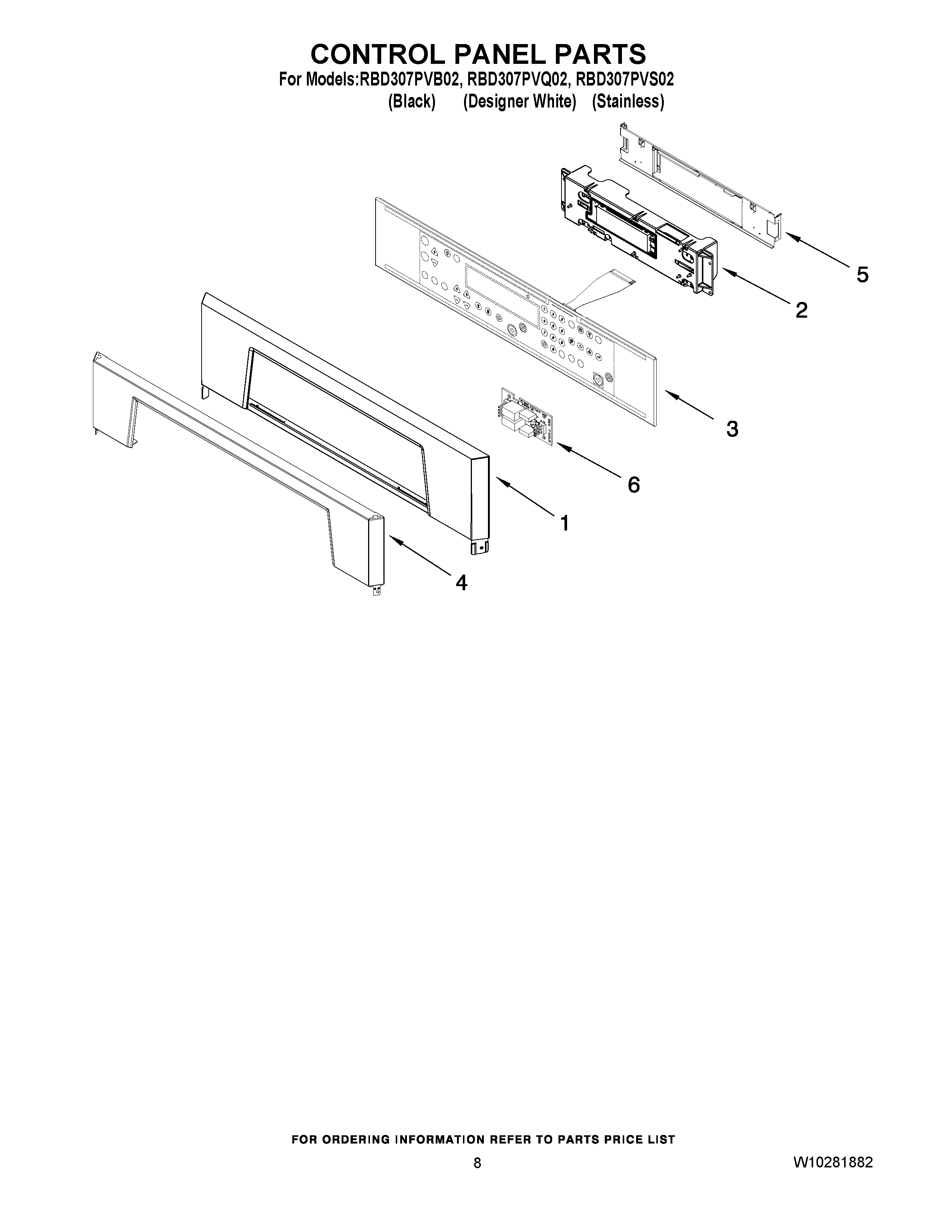

RBD307PVB02 06 – CONTROL PANEL PARTS

RBD307PVB02 06 – CONTROL PANEL PARTS

Written by

in

RBD307PVB02 06 – CONTROL PANEL PARTS

Products

Position	Product
1	WP8302848 Whirlpool Control Panel
1	WP8302849 Whirlpool Control Panel
2	Assy, Control
3	Assembly, Membrane (White)
3	Assembly, Membrane (Black)
4	Trim, Control Panel (White)
4	WPW10172167 Whirlpool Trim Panel
4	WPW10172165 Whirlpool Trim Panel
5	BACKER, CONTROL PANEL
6	Latch, Sister Board
