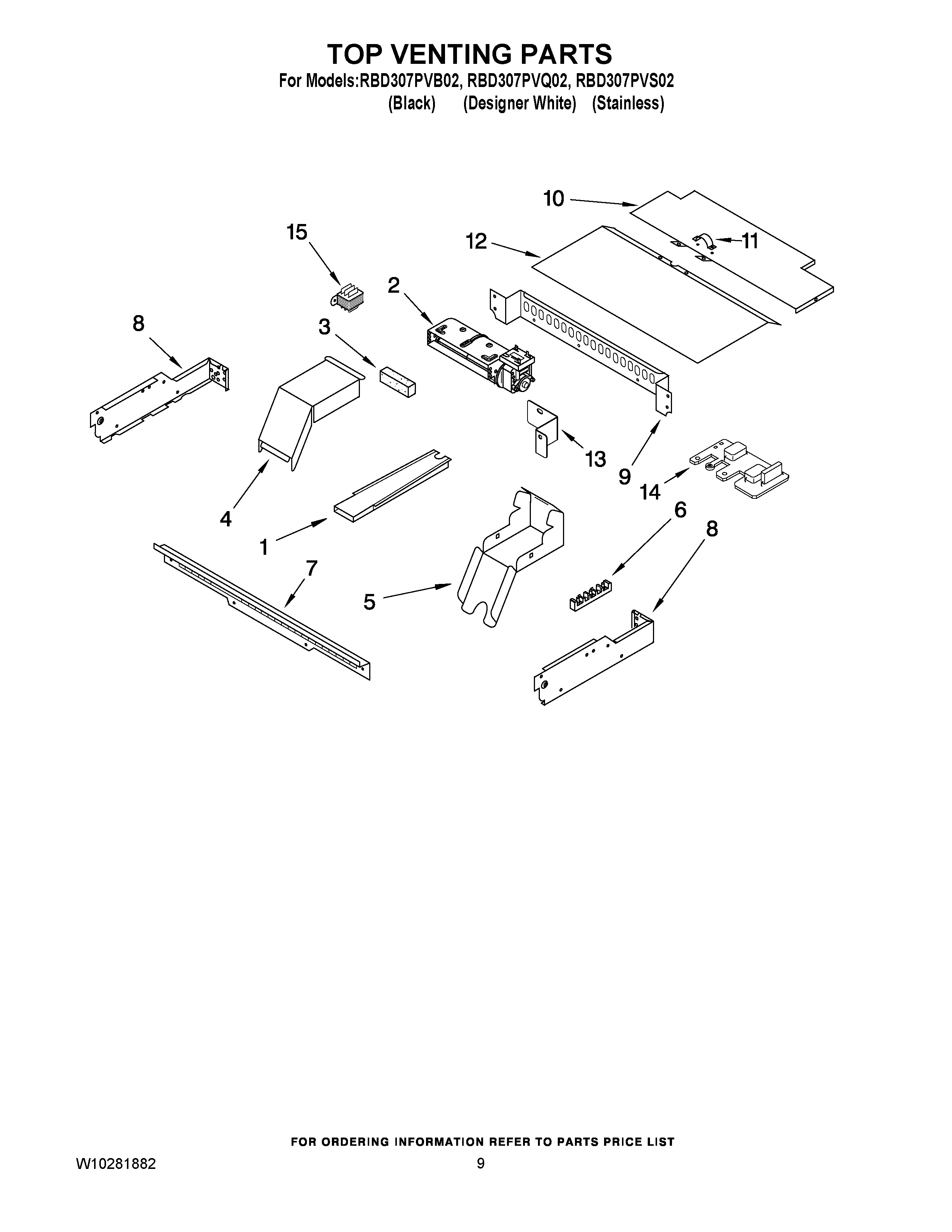

RBD307PVB02 07 – TOP VENTING PARTS

Products

Position	Product
1	Screw
1	4451759 Whirlpool Oven Exhaust Vent
2	WPW10016550 Whirlpool Blower Cooling Fan
2	4455191 Whirlpool Oven Mounting Plate
2	WPW10176670 Whirlpool Blower
3	W10491987 Whirlpool Foam Seal
4	4455178 Whirlpool Oven Top Elbow
5	4455177 Whirlpool Oven Bottom Elbow
6	BLOCK, TERMINAL
6	Screw
7	WP4450038 Whirlpool Screw
7	8303497 Whirlpool Oven Vent Control
8	W10790240 Whirlpool Side Assembly Complete
8	W10755214 Whirlpool Side Complete
9	Back, Control
10	WP4450551 Whirlpool Top Cabinet
11	WP112432 Whirlpool Nut Assembly
11	4448664 Whirlpool Oven Mounting Bracket
12	WP4452367 Whirlpool Top Cover
12	WP4449809 Whirlpool Screw
13	8302390 Whirlpool Support Bracket
14	SUPPRESSOR
15	Transformer
