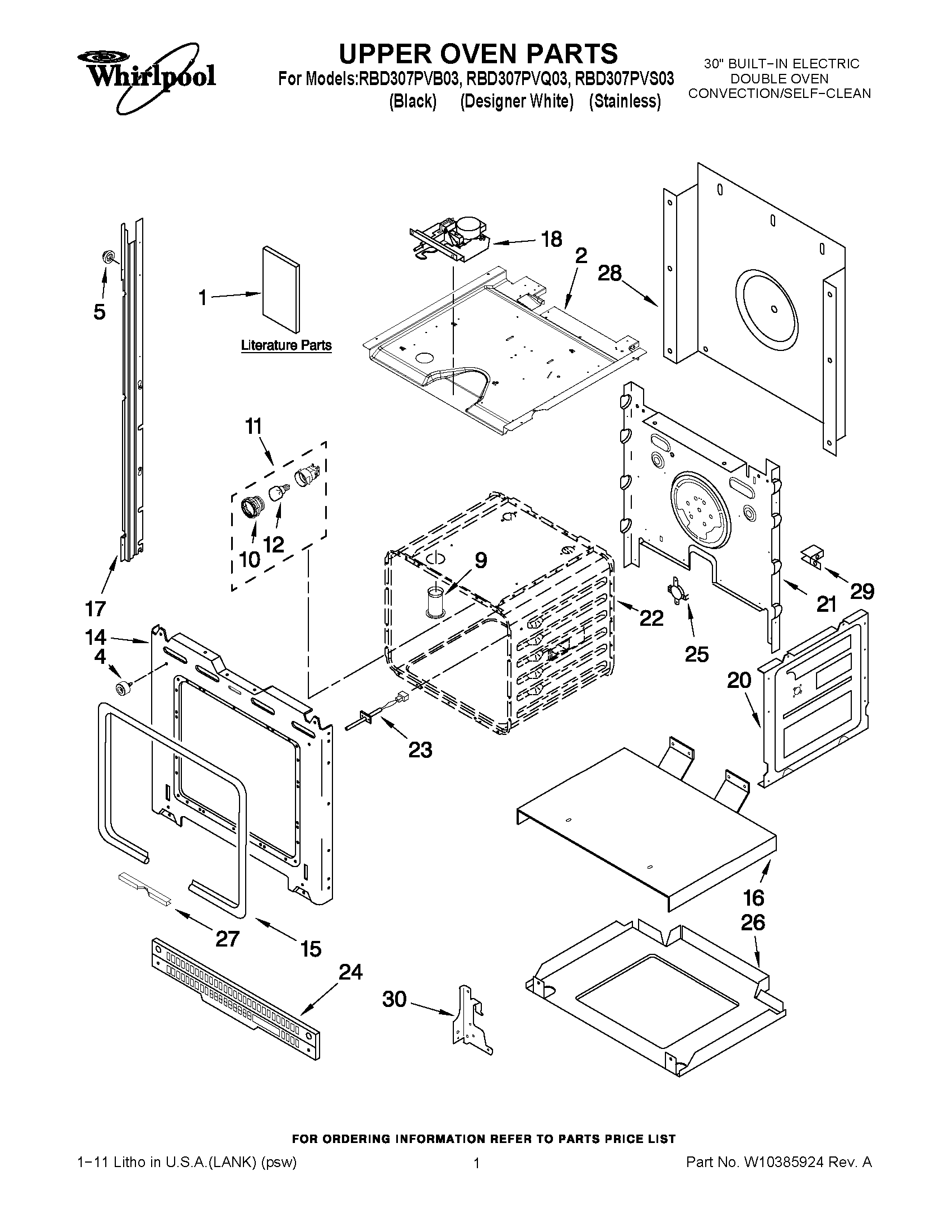

RBD307PVB03 01 – UPPER OVEN PARTS

RBD307PVB03 01 – UPPER OVEN PARTS

Written by

in

RBD307PVB03 01 – UPPER OVEN PARTS

Products

PositionProduct
NIWPL 4450365
NIW11684730 Whirlpool Insulation
1Use & Care Guide
1Installation Instructions
1Installation Instructions (Bottom Trim)
1INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1TECH SHEET
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
2Top Chassis
4W10105790 Whirlpool Bumper
5WP4448444 Whirlpool Grommet
9W10861715 Whirlpool Vent Tube
10Lens, Light (2)
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Screw
14WPW10115831 Whirlpool Front Frame
15W11675844 Whirlpool Oven Gasket
16Support, Insulation
17Rail, Side (Left)
17WP8302793 Whirlpool Mounting Rail
18WPW10195934 Whirlpool Door Latch
20W10782197 Whirlpool Side Panel
21Back, Chassis
22CABINET (NOT A SERVICEABLE PART)
23WPW10131825 Whirlpool Oven Temperature Sensor
24Vent, Center
25WP9759243 Whirlpool Thermostat
26Base, Chassis
27WP4449154 Whirlpool Screw
27WP4448933 Whirlpool Retainer
28WP4451747 Whirlpool Rear Cover
29WPL 4449845
29SCREW
30WP4455605 Whirlpool Left Hand Hinge
30WP4455606 Whirlpool Right Hand Hinge
