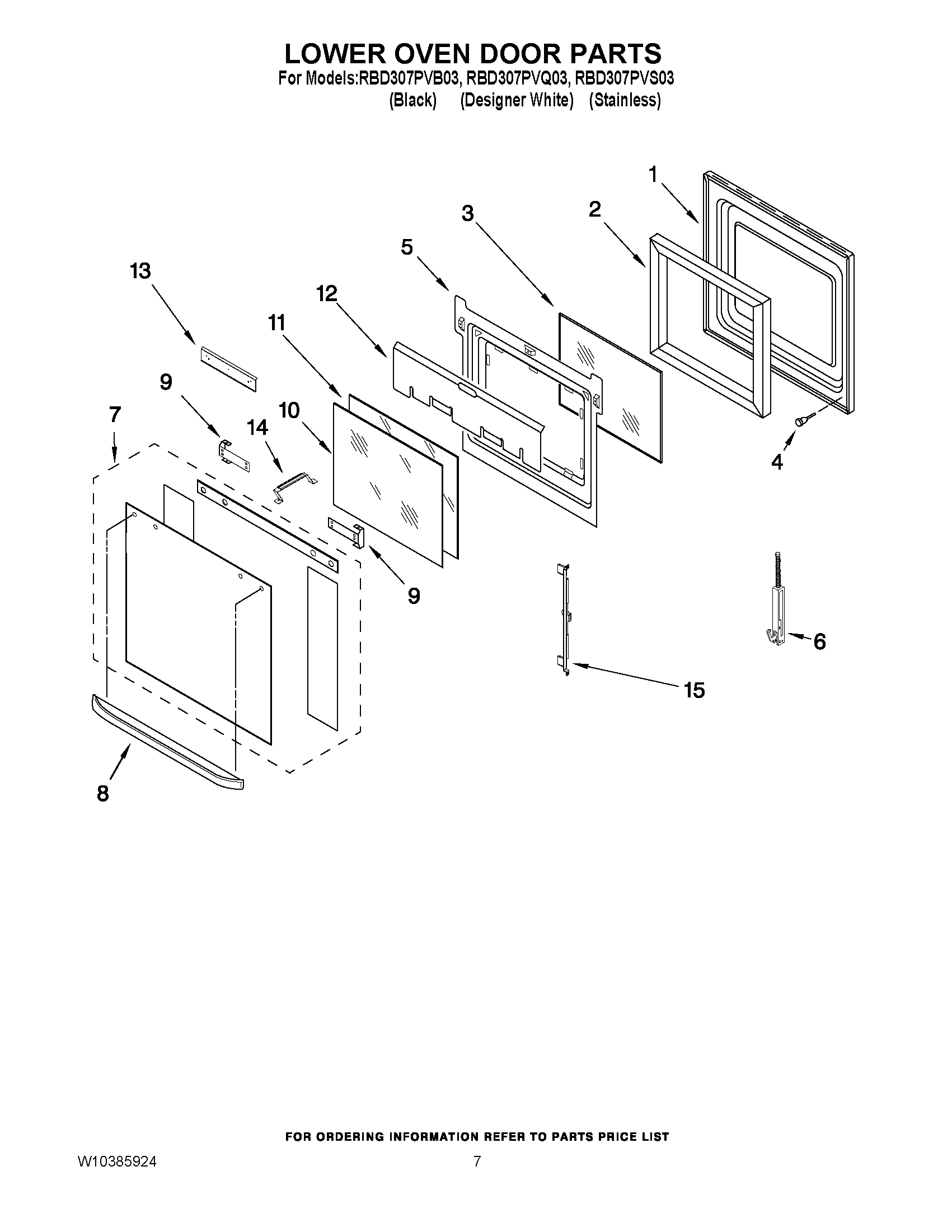

RBD307PVB03 05 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP4451722 Whirlpool Door Insulation Assembly
3	WP4449259 Whirlpool Glass Window
4	W10105790 Whirlpool Bumper
5	SCREW
5	WP4457132 Whirlpool Retainer
6	WP9760576 Whirlpool Door Hinge (Left)
6	HINGE-DOOR
6	WP4449743 Whirlpool Screw
7	Assembly, Door Glass (White)
7	Assembly, Door Glass (Black)
7	W10401225 Whirlpool Oven Outer Door Glass
8	Door Handle (Stainless)
8	Door Handle (Black)
8	Door Handle (White)
9	4455803 Whirlpool Oven Bracket
9	Bracket, Handle (L.Hand)
10	WP9759225 Whirlpool Inner Door Glass
11	Glass, Inner
12	SHIELD, HEAT TOP
13	4457114 Whirlpool Oven Heat Shield
14	Bracket (3rd Glsss)
15	WP9759229 Whirlpool Mounting Bracket
