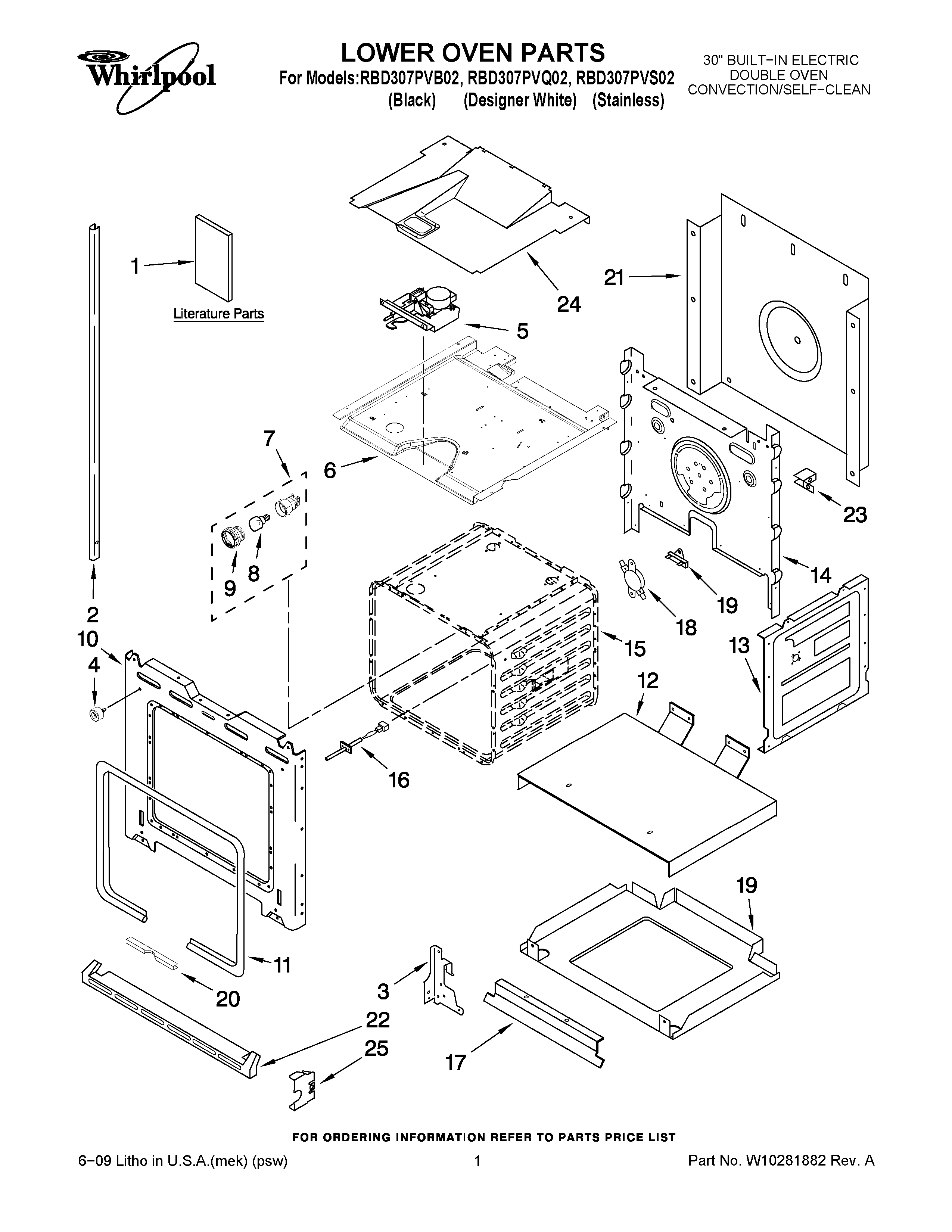

RBD307PVQ02 01 – LOWER OVEN PARTS

RBD307PVQ02 01 – LOWER OVEN PARTS

Written by

in

RBD307PVQ02 01 – LOWER OVEN PARTS

Products

PositionProduct
NIW11684730 Whirlpool Insulation
NIWPL 4450365
1INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1Installation Instructions
1Tech Sheet (Oven)
1Use & Care Guide
1Installation Instructions (Bottom Trim)
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
2Trim, Side Right (White)
2Trim, Side Right (Stainless)
2WPW10339499 Whirlpool Trim Assembly
2WPW10339502 Whirlpool Trim Kit
2TRIM, SIDELEFT (STAINLESS)
2WPW10339500 Whirlpool Trim
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
4W10105790 Whirlpool Bumper
5WPW10195934 Whirlpool Door Latch
6Top Chassis
7WPW10734065 Whirlpool Light
8WP4173175 Whirlpool Light Bulb
9Lens, Light (2)
10WPW10115831 Whirlpool Front Frame
10Screw
10WP4450118 Whirlpool Nut
11W11675844 Whirlpool Oven Gasket
12Support, Insulation
13W10782197 Whirlpool Side Panel
14Back, Chassis
15CABINET (NOT A SERVICEABLE PART)
16WPW10131825 Whirlpool Oven Temperature Sensor
179760677 Whirlpool Oven Vent Deflector
18WP9759242 Whirlpool Thermostat
19Base, Chassis
20WP4448933 Whirlpool Retainer
20WP4449154 Whirlpool Screw
21WP4451747 Whirlpool Rear Cover
22WP3400832 Whirlpool Screw
22Trim, Bottom Vent (Stainless)
22WPW10207689 Whirlpool Trim Kit
23WPL 4449845
23WP4449809 Whirlpool Screw
24Divider, Vent
254452152 Whirlpool Oven Mounting Bracket
