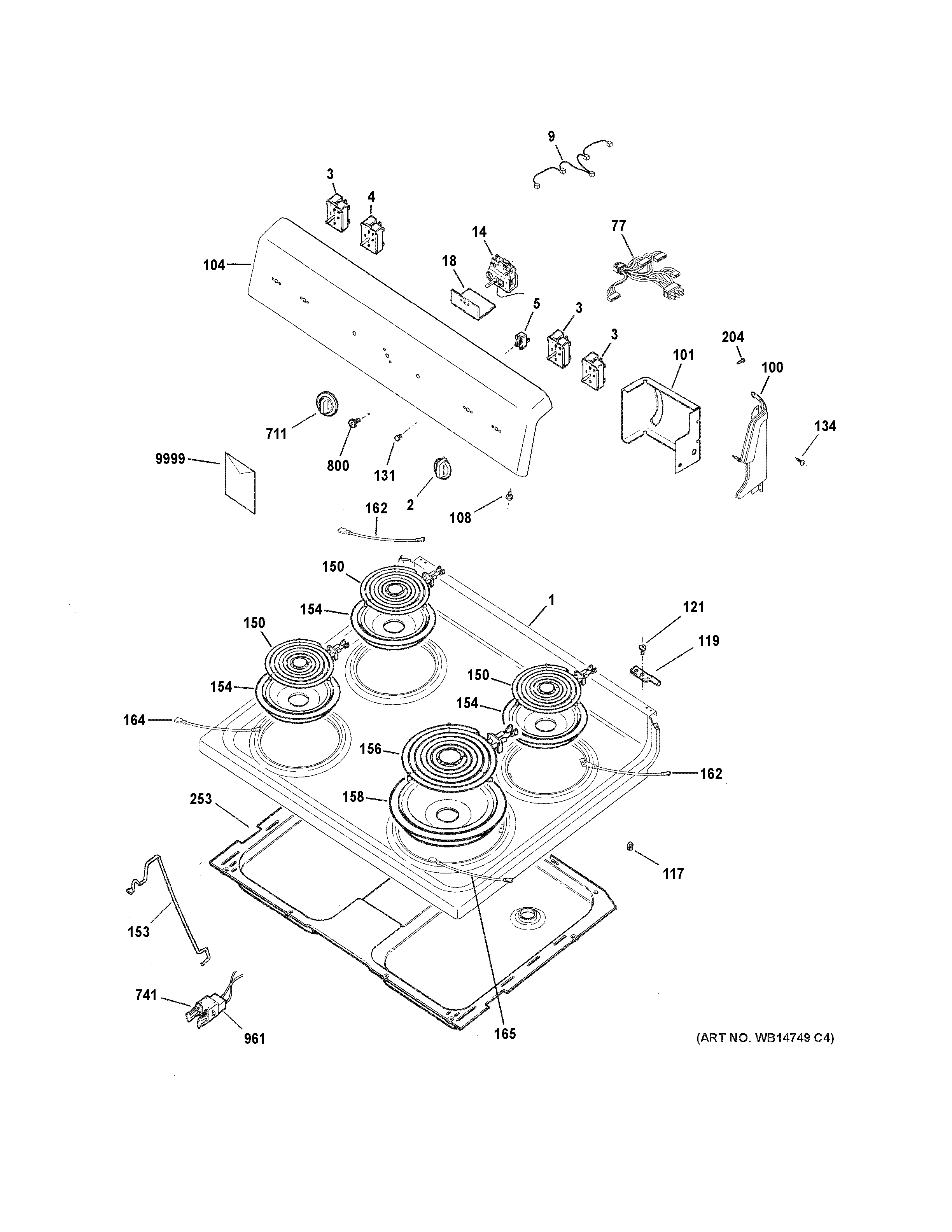

RBS160DM1BB CONTROL PANEL & COOKTOP

RBS160DM1BB CONTROL PANEL & COOKTOP

Written by

in

RBS160DM1BB CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10086 GE Oven Control Thermostat
2WB03K10301 GE Oven Knob
3WB24T10022 GE Oven Infinite Switch
4WB24T10025 SWITCH INFIN(2500W)
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
9WB18X31425 GE Lamp Pilot Harness
14WB20K10026 GE Oven Thermostat
18WB02K10070 GE Oven Thermostat Carton Cover
77WB18X31421 GE Main Harness
100WB07K10193 GE Oven End Support Gloss Black
100WB07K10194 GE Oven End Support Gloss Black
101WB37X20193 GE Cooktop Bracket
104WB36X22504 GE Oven Control Trim
108GEN WB01X5716
117GEN WB02K0017
117WB02K10075 GE Oven Plastic Nail
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
131WB25T10041 GE Oven Lens
134WB1X5364 GE Oven Mounting Screw
150WB31X46067 GE 6" Surface Burner
153WB02K10026 GE Oven Rod Support
154WB31T10014 GE Oven 6-Inch Black Drip Bowl
156WB31X46066 GE Surface Burner 8"
158WB31T10015 8" BOWL BLACK REAR BUBBLE
162WB18X27485 GE Surface Unit Harness
164WB18X27487 GE Oven Surface Unit Harness
165WB18X27488 GE Oven Surface Unit Harness
204WB01K10091 GE Oven Screw
253WB64K10009 GE Oven Cooktop Box
711WB03X22503 GE Oven Thermostat Knob Assembly
741WB02K10133 GE Oven Receptacle Clip
800WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
961WB17T10006 GE Oven Burner Receptacle Block
9999WB49X21392 GE Oven Hinge Service Kit
