RBS160DM3WW CONTROL PANEL & COOKTOP

RBS160DM3WW CONTROL PANEL & COOKTOP

Written by

in

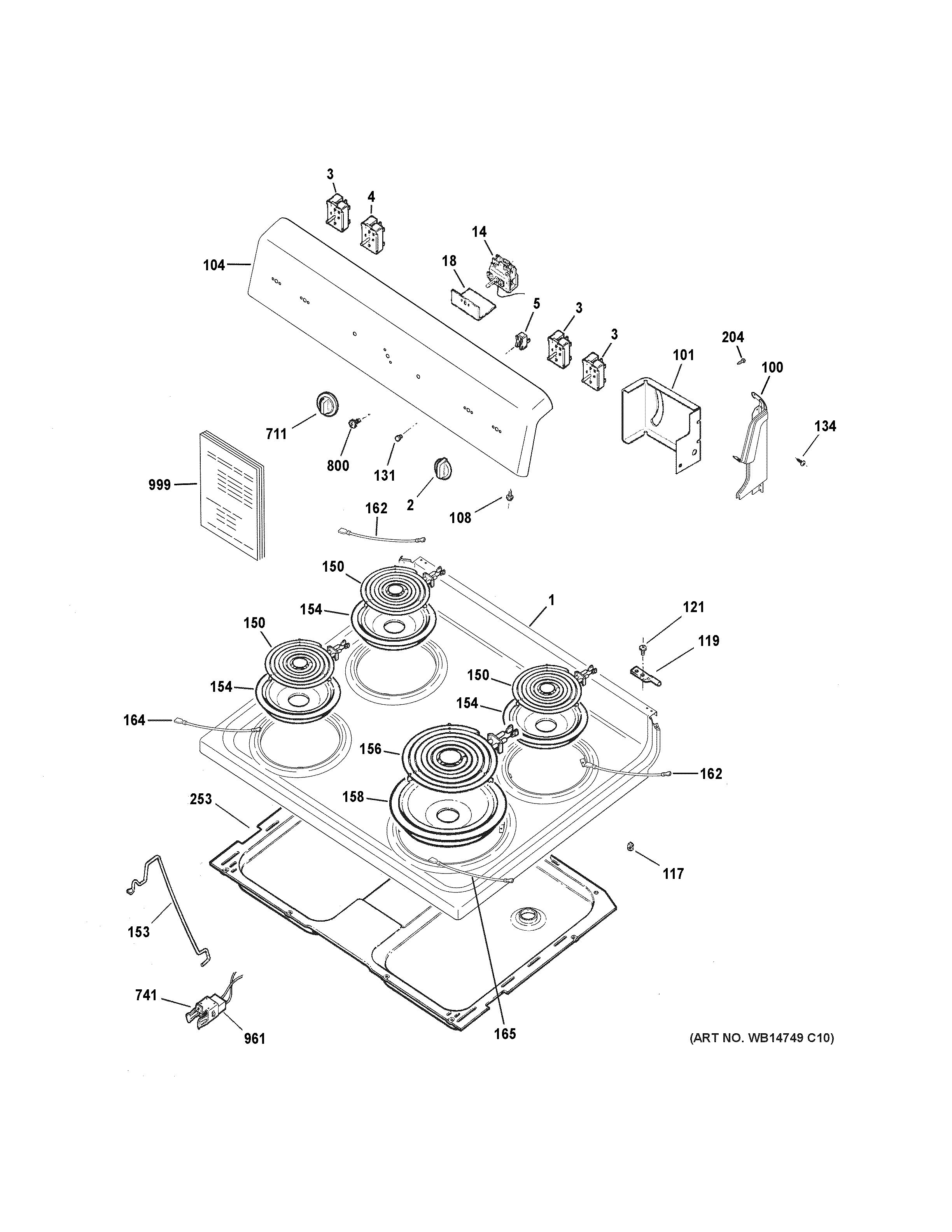

RBS160DM3WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10083 GE Oven White Cooktop O/S1
2WB03T10282 GE Oven Infinite Knob (White)
3WB24T10022 GE Oven Infinite Switch
4WB24T10025 SWITCH INFIN(2500W)
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
14WB20K10026 GE Oven Thermostat
18WB02K10070 GE Oven Thermostat Carton Cover
100WB07K10195 GE Oven Right White End Support
100WB07K10196 GE Oven Left End Support (White)
101WB37X20193 GE Cooktop Bracket
104WB36X22561 GE Oven Control Trim
108GEN WB01X5874
117WB02K10075 GE Oven Plastic Nail
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
131WB25T10041 GE Oven Lens
134WB1X5364 GE Oven Mounting Screw
150WB31X46067 GE 6" Surface Burner
153WB02K10026 GE Oven Rod Support
154BOWL BURNER 6 (CH)
156WB31X46066 GE Surface Burner 8"
158BOWL BURNER 8 (CH)
162WB18X27485 GE Surface Unit Harness
164WB18X27487 GE Oven Surface Unit Harness
165WB18X27488 GE Oven Surface Unit Harness
204WB01K10091 GE Oven Screw
253WB64K10009 GE Oven Cooktop Box
711THERMOSTAT KNOB ASSM
741WB02K10133 GE Oven Receptacle Clip
800WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
961WB17T10006 GE Oven Burner Receptacle Block
999PM QUICK OWNERS MANUAL
999PM OWNERS MANUAL
999PM INSERT INSTRUCTIONS
999PM MINI MANUAL AND WIRING
