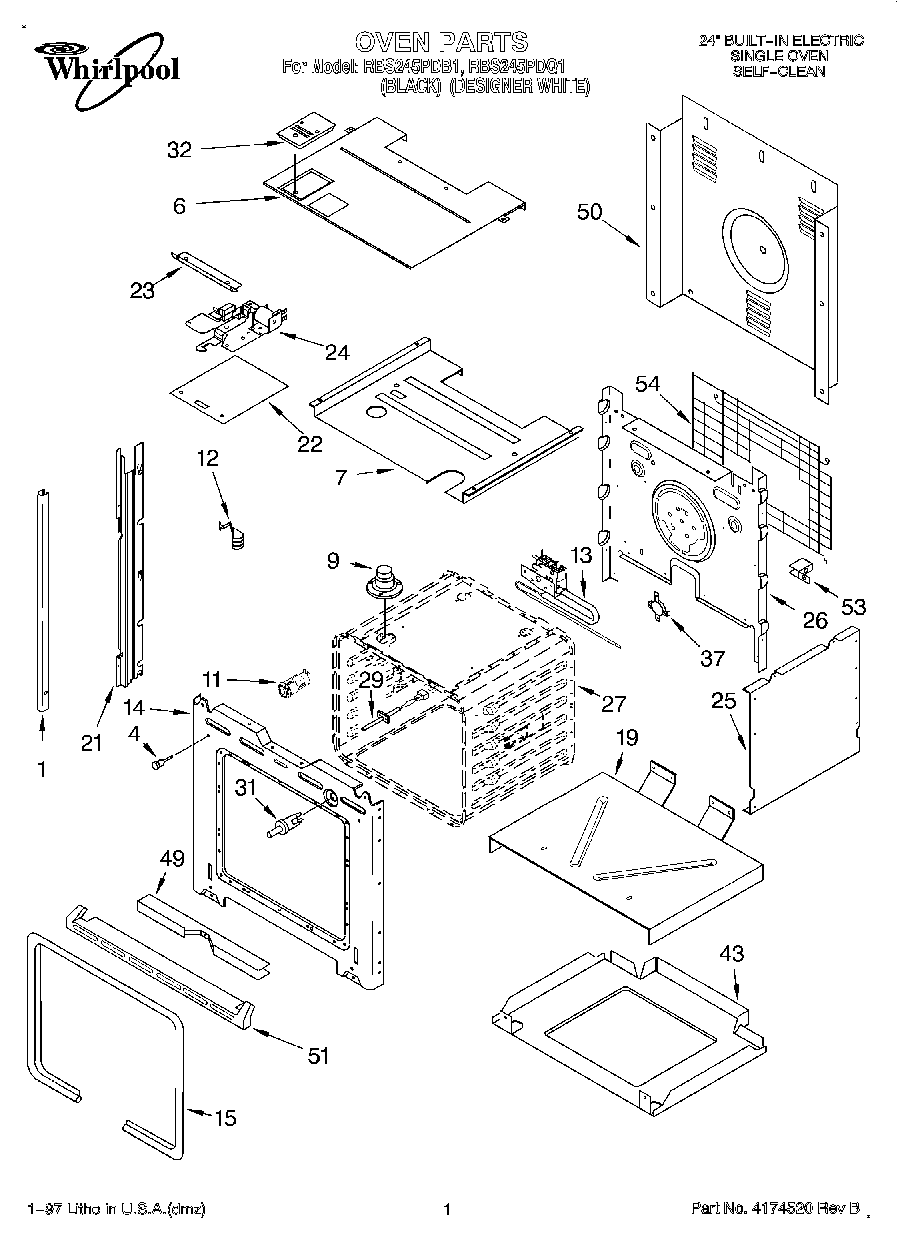

RBS245PDB1 01 – OVEN

Products

Position	Product
1	Trim, Side (LH Black)
1	Trim, Side (LH White Screw)
1	Trim, Side (White, Right)
1	Trim, Side (RH Black)
1	Trim, Side (White)
1	WP8281236 Whirlpool Screw
4	4448520 Whirlpool Oven Bumper
6	Divider, Vent
7	Partition
9	Tube, Vent
11	WPW10734065 Whirlpool Light
12	98005642 Whirlpool Clip
13	Safety Switch (Oven Temp)
14	Screw
14	Frame, Front
15	WP4455380 Whirlpool Door Gasket
19	4451476 Whirlpool Support
21	814371 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
21	814372 Whirlpool Oven Rail Mount
22	Trim, Bottom (Screw)
22	Shield, Latch
23	Deflector, Latch
24	Latch, Assy
25	Side, Chassis (R.H. & L.H.)
26	4452232 Whirlpool Oven Rear Cover
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
31	Switch, Door
32	Vent Box Assy
37	WP4450934 Whirlpool Thermostat Assembly
43	4450525 Whirlpool Oven Bottom Assembly
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	Cover, Back
51	WPL 4448473
51	WPL 4448474
51	Screw, (2)
53	WPL 4449845
54	WP4450363 Whirlpool Insulation
54	WP4449809 Whirlpool Screw
54	Spacer, Harness
54	WP4449314 Whirlpool Insulation
