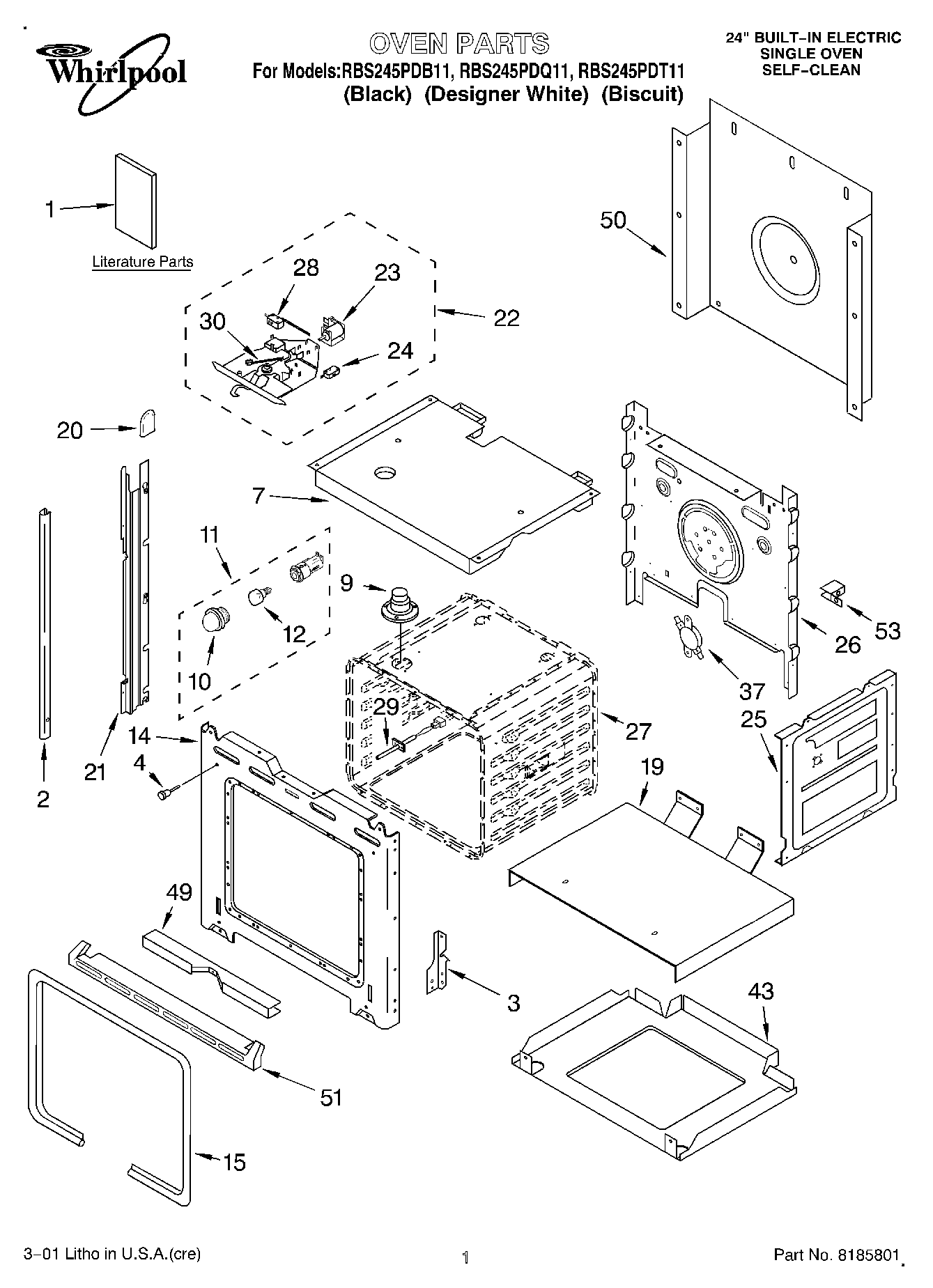

RBS245PDB11 01 – OVEN, LITERATURE
Written by
in
RBS245PDB11 01 – OVEN, LITERATURE
Products
Position
Product
1
Safer Cooking Tips
1
Literature Parts (Tech Sheet)
1
Literature Parts (Use & Care Guide (Oven))
1
Literature Parts (Installation/ MWO Trim Kit)
1
Literature Parts (Installation/ Undercounter)
1
Literature Parts (Installation Instructions)
2
Trim, Side (LH White Screw)
2
WP3400832 Whirlpool Screw
2
Trim, Side (LH Black)
2
Trim, Side (White, Right)
2
Trim, Side (RH Black)
2
Trim, Side (LH Biscuit)
2
Trim, Side (White)
2
Trim, Side (RH Biscuit)
3
Reciever, Hinge (Right Hand)
3
Reciever, Hinge (Left Hand)
4
4448520 Whirlpool Oven Bumper
7
4455863 Whirlpool Oven Top Assembly
9
SCREW
9
W10861715 Whirlpool Vent Tube
10
Lens, Light
11
WPW10734065 Whirlpool Light
12
WP4173175 Whirlpool Light Bulb
14
WP4450118 Whirlpool Nut
14
Screw
14
9760754 Whirlpool Oven Front Frame
15
WP4455380 Whirlpool Door Gasket
19
4451476 Whirlpool Support
20
Cap, Spacer
21
WP4448444 Whirlpool Grommet
21
814372 Whirlpool Oven Rail Mount
21
814371 Whirlpool Oven Rail Mount
22
Latch Assembly
23
Solenoid
24
Microswitch N.C.
25
W10782197 Whirlpool Side Panel
26
4452232 Whirlpool Oven Rear Cover
27
Liner, Oven (Not a Serviceable Part)
28
Microswitch
29
WPW10131825 Whirlpool Oven Temperature Sensor
30
Spring, Latch
37
WP9759243 Whirlpool Thermostat
43
4450525 Whirlpool Oven Bottom Assembly
49
WP4449154 Whirlpool Screw
49
WP4448933 Whirlpool Retainer
50
WP4451747 Whirlpool Rear Cover
51
Trim, Bottom (Biscuit Model)
51
WPL 4448474
51
WP4449745 Whirlpool Screw
51
WPL 4448473
53
WP4450363 Whirlpool Insulation
53
WP4449314 Whirlpool Insulation
53
WP4449809 Whirlpool Screw
53
WPL 4449845
←
