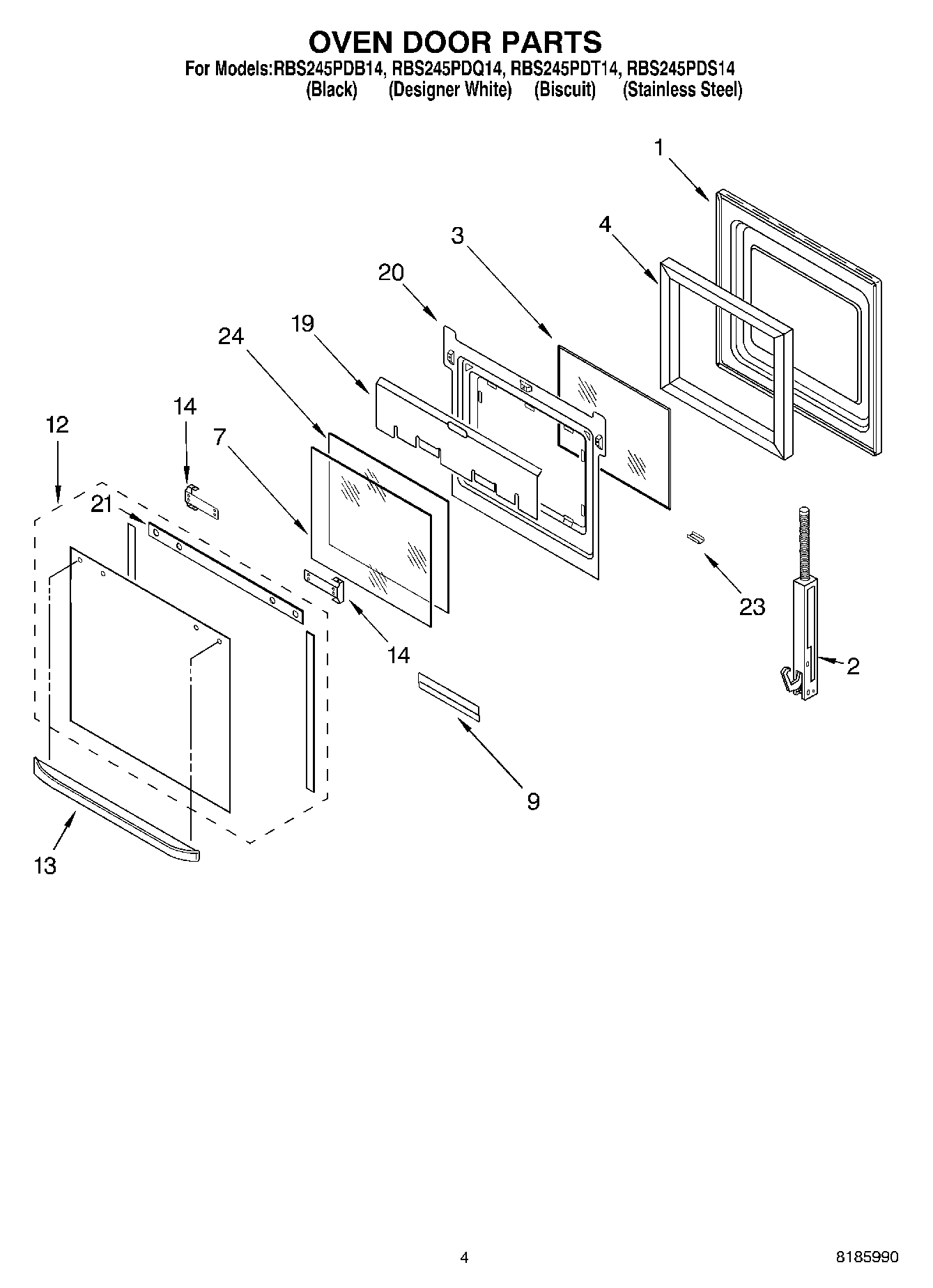

RBS245PDB14 03 – OVEN DOOR

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
2	WP9760571 Whirlpool Door Hinge
2	WP9760572 Whirlpool Door Hinge
2	Hinge, Door (Right Side)
2	Hinge, Door (Left Side)
3	WP4449247 Whirlpool Inner Door Glass
4	W11688413 Whirlpool Insulation
7	Glass, Inner
9	Retainer, Glass
12	Door Glass Assy (Biscuit Model)
12	Door Glass Assy (White Model)
12	Door Glass Assy (Black Model)
12	Door Glass, Assy. (S. Steel)
13	Door Handle (White Model)
13	Door Handle (Biscuit Model)
13	Door Handle (Black Model)
14	Bracket, Handle
14	WP4449743 Whirlpool Screw
14	Screw
19	Shield, Heat
20	4457130 Whirlpool Oven Retainer
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
23	Clip, Retainer (Black Model)
23	WP3400832 Whirlpool Screw
23	Clip, Retainer (White Model)
24	Glass, Inner
