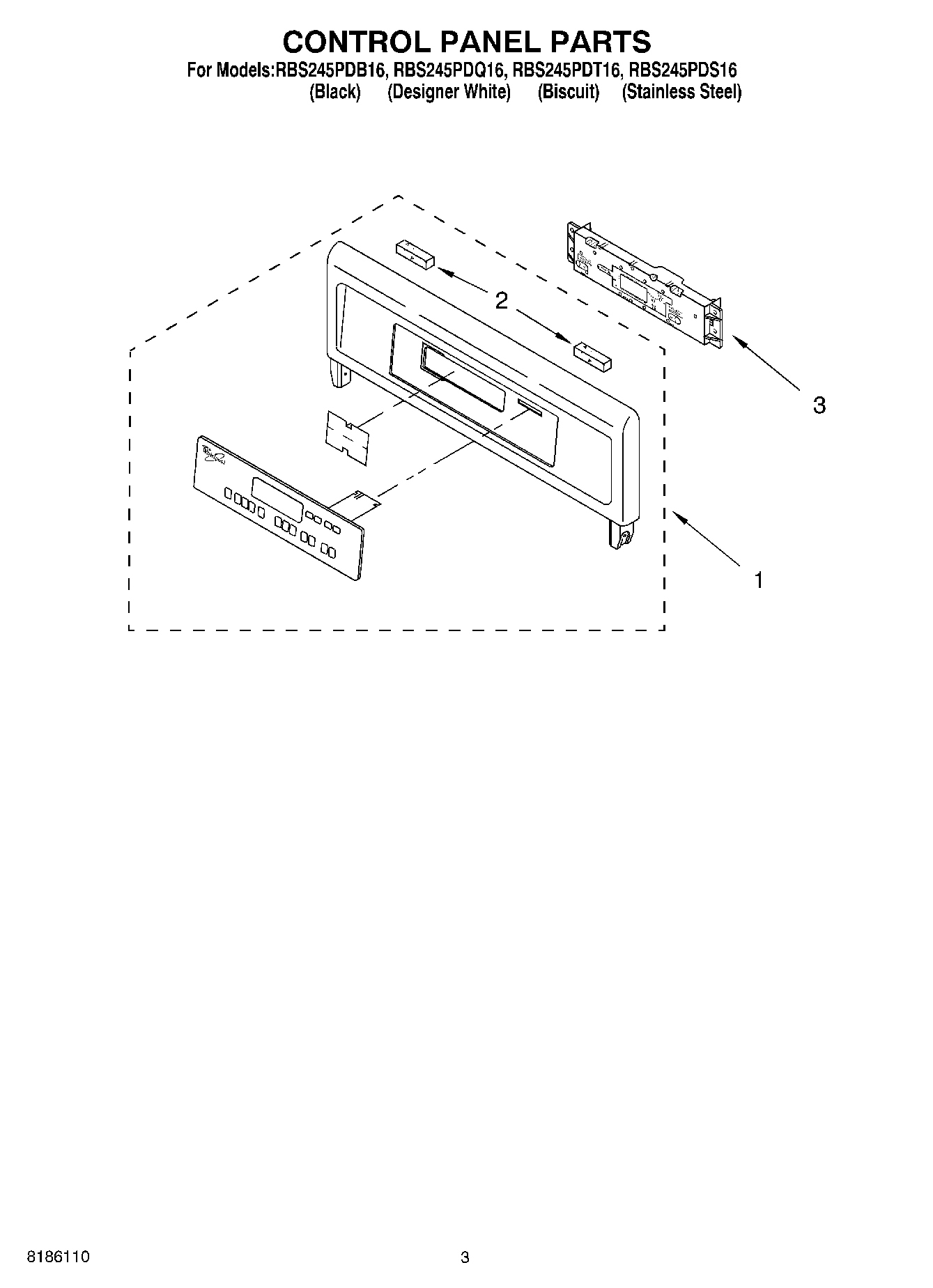

RBS245PDB16 02 – CONTROL PANEL PARTS

Products

PositionProduct
NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1Control Panel Assy. W/Membrane Switch (White Model)
1Control Panel Assy. W/Membrane Switch (Black Model)
1Control Panel Assy. W/Membrane Switch (Biscuit Model)
2Gasket, Control Panel
3WP3400832 Whirlpool Screw
3WP4449745 Whirlpool Screw
3Assy, Control
