RBS245PDB4 01 – OVEN

RBS245PDB4 01 – OVEN

Written by

in

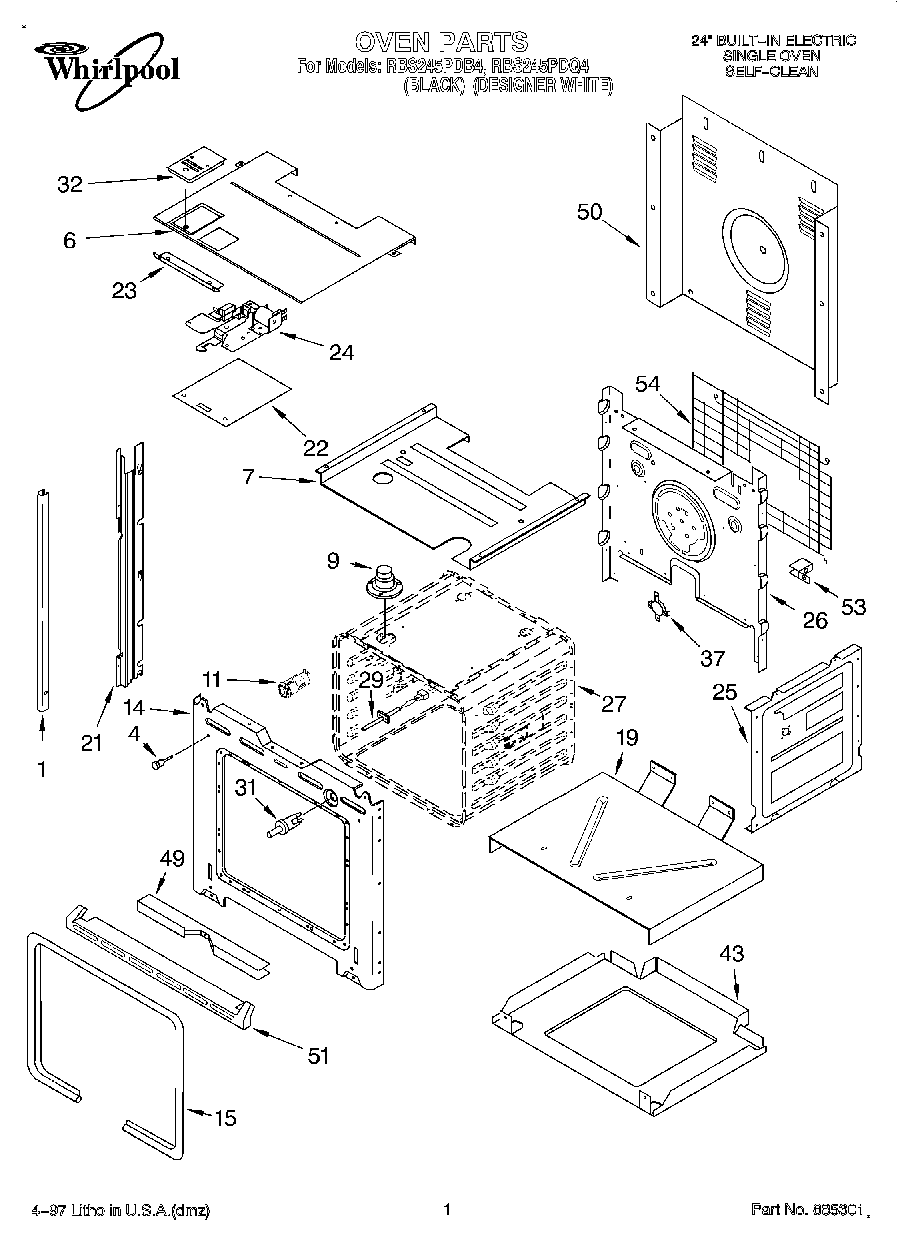

RBS245PDB4 01 – OVEN

Products

PositionProduct
1Trim, Side (LH White Screw)
1Trim, Side (LH Black)
1Trim, Side (White, Right)
1Trim, Side (RH Black)
1Trim, Side (White)
1WP8281236 Whirlpool Screw
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Partition
9Tube, Vent
11WPW10734065 Whirlpool Light
14Frame, Front
14WP4450118 Whirlpool Nut
14Screw
15WP4455380 Whirlpool Door Gasket
194451476 Whirlpool Support
21WP4448444 Whirlpool Grommet
21814372 Whirlpool Oven Rail Mount
21814371 Whirlpool Oven Rail Mount
22Trim, Bottom (Screw)
22Shield, Latch
23Deflector, Latch
24Latch Assy
25Side, Chassis (R.H. & L.H.)
264452232 Whirlpool Oven Rear Cover
27Liner, Oven (Not a Serviceable Part)
29Sensor
31Switch, Door
32Vent Box Assy
37WP4450934 Whirlpool Thermostat Assembly
434450525 Whirlpool Oven Bottom Assembly
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50Cover, Back
51WPL 4448474
51WPL 4448473
51Screw, (2)
53WPL 4449845
54Spacer, Harness
54WP4450363 Whirlpool Insulation
54WP4449809 Whirlpool Screw
54WP4449314 Whirlpool Insulation
