RBS245PDB6 01 – OVEN

RBS245PDB6 01 – OVEN

Written by

in

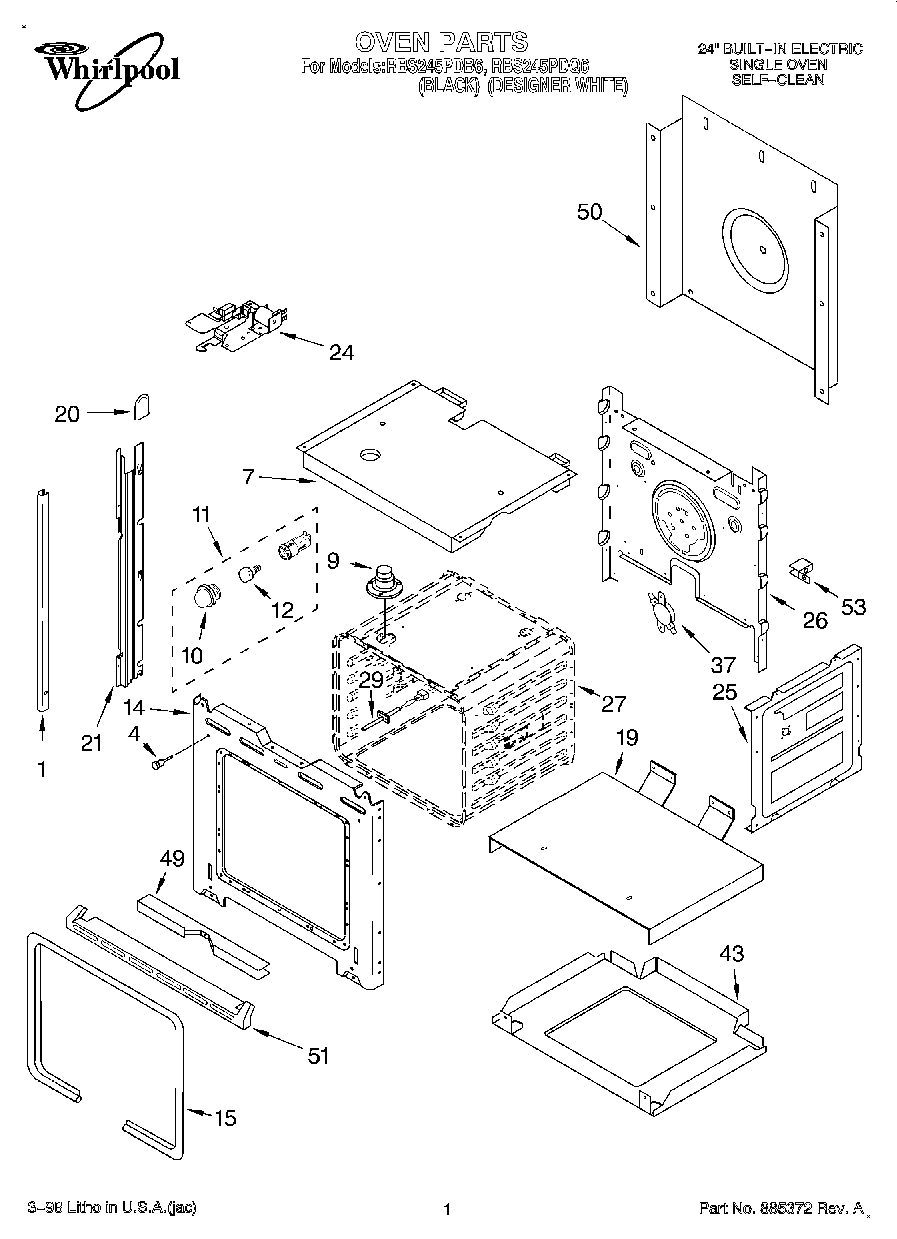

RBS245PDB6 01 – OVEN

Products

PositionProduct
1Trim, Side (White, Right)
1Trim, Side (LH White Screw)
1Trim, Side (LH Black)
1Trim, Side (RH Black)
1Trim, Side (White)
1WP8281236 Whirlpool Screw
44448520 Whirlpool Oven Bumper
74455863 Whirlpool Oven Top Assembly
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Screw
149760754 Whirlpool Oven Front Frame
14WP4450118 Whirlpool Nut
15WP4455380 Whirlpool Door Gasket
194451476 Whirlpool Support
20Cap, Spacer
21814372 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814371 Whirlpool Oven Rail Mount
24Solenoid
24Latch Assembly
24Micro Switch N.C.
24Microswitch
25Side, Chassis (R.H. & L.H.)
264452232 Whirlpool Oven Rear Cover
27Liner, Oven (Not a Serviceable Part)
29Sensor
37WP9759243 Whirlpool Thermostat
434450525 Whirlpool Oven Bottom Assembly
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51WPL 4448474
51WPL 4448473
51WP4449745 Whirlpool Screw
53WP4449314 Whirlpool Insulation
53WP4450363 Whirlpool Insulation
53WP4449809 Whirlpool Screw
53WPL 4449845
