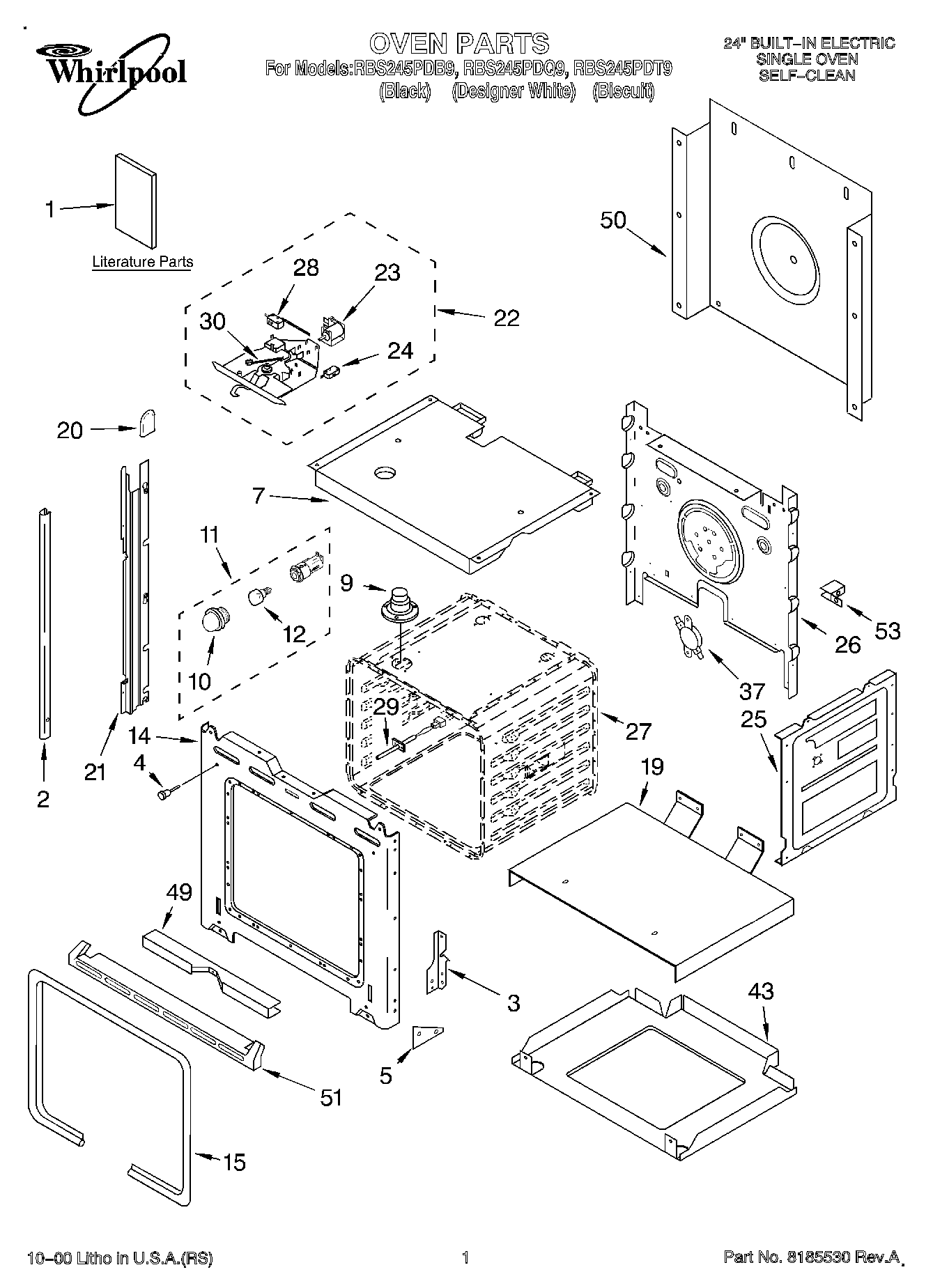

RBS245PDB9 01 – OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Installation/ Undercounter
1Literature Parts (Use & Care Guide (Oven))
1Literature Parts (Tech Sheet)
1Literature Parts (Installation/ MWO Trim Kit)
1Literature Parts (Installation Instructions)
2WP8281236 Whirlpool Screw
2Trim, Side (LH White Screw)
2Trim, Side (LH Black)
2Trim, Side (White, Right)
2Trim, Side (LH Biscuit)
2Trim, Side (RH Black)
2Trim, Side (White)
2Trim, Side (RH Biscuit)
3Reciever, Hinge (Right Hand)
3Reciever, Hinge (Left Hand)
44448520 Whirlpool Oven Bumper
5WP4455509 Whirlpool Support Bracket
74455863 Whirlpool Oven Top Assembly
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Screw
14WP4450118 Whirlpool Nut
149760754 Whirlpool Oven Front Frame
15WP4455380 Whirlpool Door Gasket
194451476 Whirlpool Support
20Cap, Spacer
21WP4448444 Whirlpool Grommet
21814371 Whirlpool Oven Rail Mount
21814372 Whirlpool Oven Rail Mount
22Latch Assembly
23Solenoid
24Microswitch N.C.
25Side, Chassis (R.H. & L.H.)
264452232 Whirlpool Oven Rear Cover
27Liner, Oven (Not a Serviceable Part)
28Microswitch
29WPW10131825 Whirlpool Oven Temperature Sensor
30Spring, Latch
37WP9759243 Whirlpool Thermostat
434450525 Whirlpool Oven Bottom Assembly
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51Trim, Bottom (Biscuit Model)
51WP4449745 Whirlpool Screw
51WPL 4448473
51WPL 4448474
53WP4449314 Whirlpool Insulation
53WP4449809 Whirlpool Screw
53WPL 4449845
53WP4450363 Whirlpool Insulation
