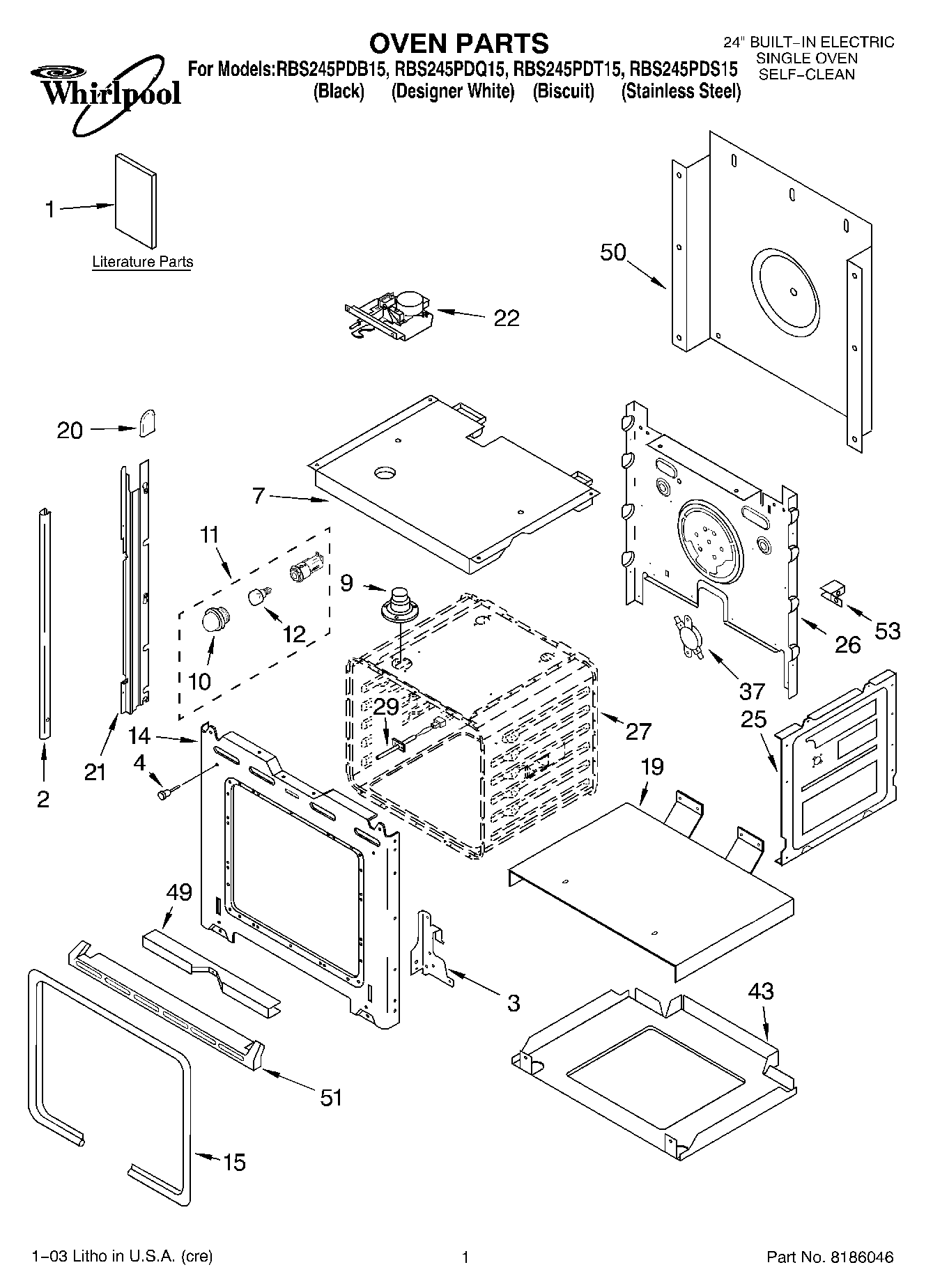

RBS245PDS15 01 – OVEN PARTS

RBS245PDS15 01 – OVEN PARTS

Written by

in

RBS245PDS15 01 – OVEN PARTS

Products

PositionProduct
WPL ARI120638A
WPL ARI120639A
1Safer Cooking Tips
1Literature Parts (Installation/ Undercounter)
1Literature Parts (Installation/ MWO Trim Kit)
1Literature Parts (Installation Instructions)
1Literature Parts (Tech Sheet)
1Literature Parts (Use & Care Guide (English))
2Trim, Side (RH Biscuit)
2Trim, Side (LH Biscuit)
2Trim, Side (LH White Screw)
2Trim, Side (White, Right)
2Trim, Side (LH Black)
2WP8281236 Whirlpool Screw
2Trim, Side (RH Black)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
74455863 Whirlpool Oven Top Assembly
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Screw
149760754 Whirlpool Oven Front Frame
14WP4450118 Whirlpool Nut
15WP4455380 Whirlpool Door Gasket
194451476 Whirlpool Support
20Cap, Spacer
21814372 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814371 Whirlpool Oven Rail Mount
22WP9760889 Whirlpool Door Latch
25W10782197 Whirlpool Side Panel
264452232 Whirlpool Oven Rear Cover
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
37WP9759243 Whirlpool Thermostat
434450525 Whirlpool Oven Bottom Assembly
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51Trim, Bottom (Biscuit Model)
51WP4449745 Whirlpool Screw
51WPL 4448473
51WPL 4448474
53WPL ARI120641A
53WP4450363 Whirlpool Insulation
53WP4449809 Whirlpool Screw
53WPL 4449845
53WP4449314 Whirlpool Insulation
