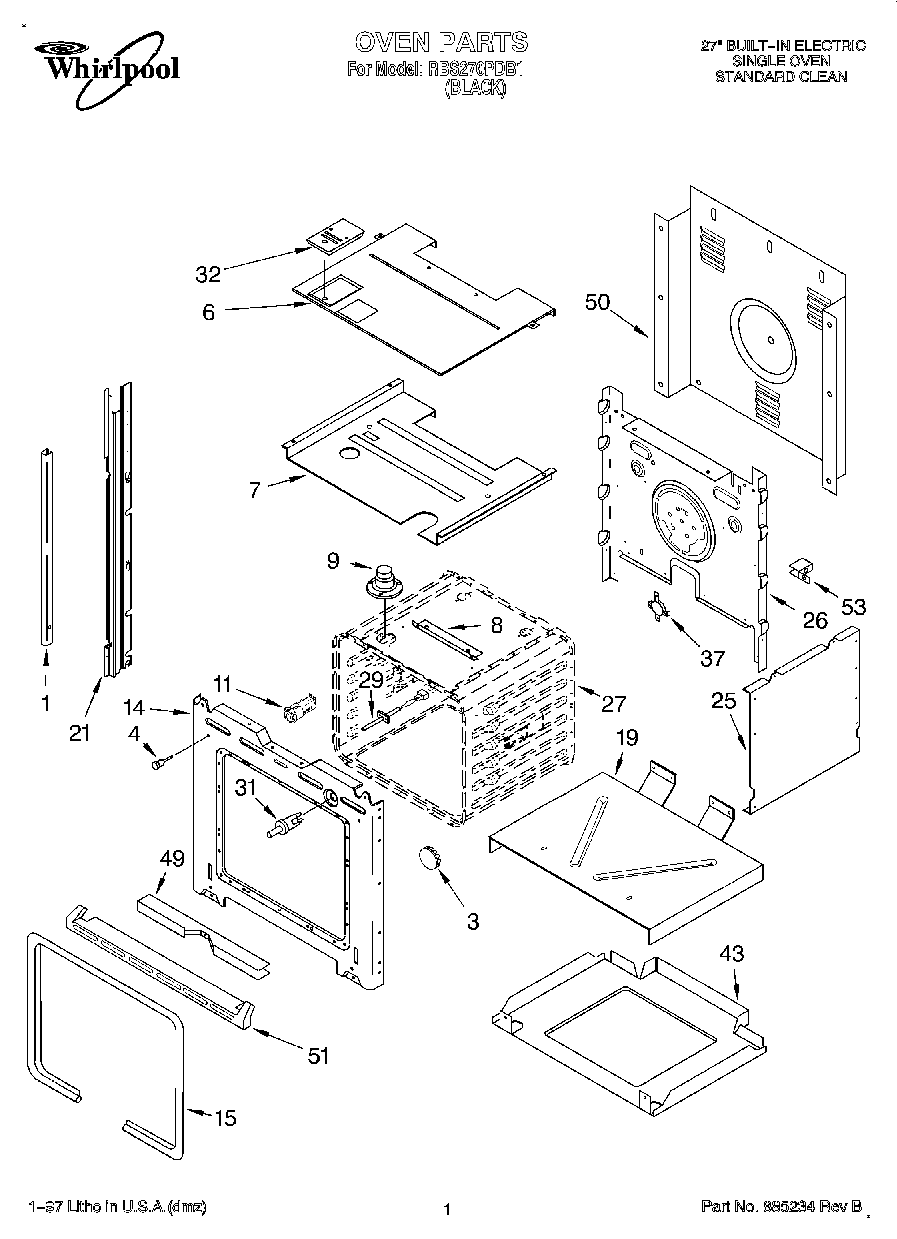

RBS270PDB1 01 – OVEN

RBS270PDB1 01 – OVEN

Written by

in

RBS270PDB1 01 – OVEN

Products

PositionProduct
1WP8281236 Whirlpool Screw
1Trim, Side (RH Black)
1Trim, Side (LH Black)
3Plug, Button
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Partition
8Deflector, Latch
9Tube, Vent
11WPW10734065 Whirlpool Light
14Frame, Front
14Screw
15Gasket, Door
19Support, Insulation
21814371 Whirlpool Oven Rail Mount
21814372 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
31Switch, Door
32Vent Box Assy
37WP4450934 Whirlpool Thermostat Assembly
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4449809 Whirlpool Screw
50Cover, Back
51Tri
51Screw, (2)
53WPL 4449315
53WPL 4449845
53WPL 4450364
53WP4449154 Whirlpool Screw
