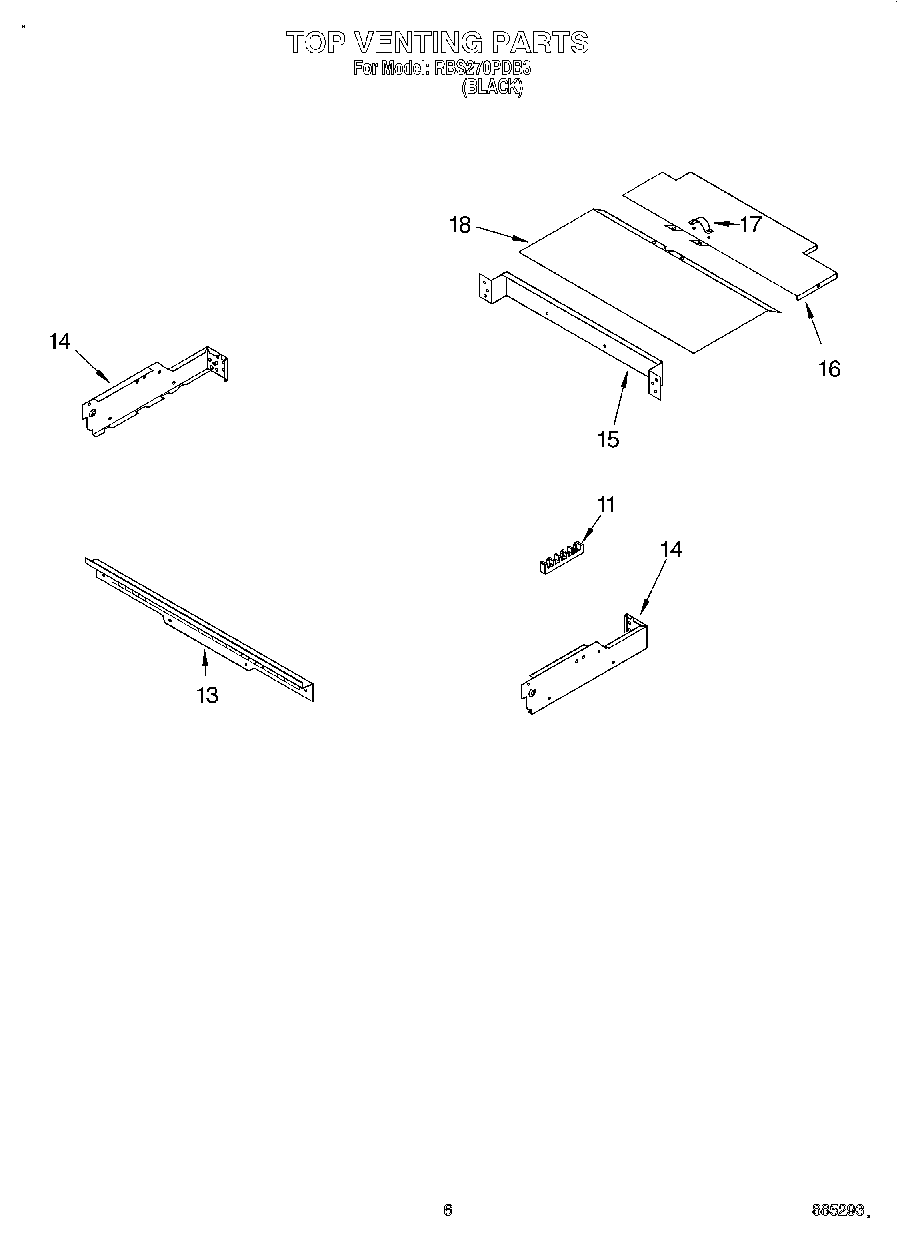

RBS270PDB3 05 – TOP VENTING, OPTIONAL

RBS270PDB3 05 – TOP VENTING, OPTIONAL

Written by

in

RBS270PDB3 05 – TOP VENTING, OPTIONAL

Products

PositionProduct
11WP3387230 Whirlpool Screw
11WP8203546 Whirlpool Terminal Block
13Vent, (Control Panel)
13WP4450038 Whirlpool Screw
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16Cover, Top Rear
18WP4450952 Whirlpool Conduit
18Wire (14 Ga. 150 c Yellow)
18Wire (12 Ga. 150 c Black)
1818 Ga. 80~c Rating (Red)
18Wire (14 Ga. 200 c Brown)
181
18Cover, Top Front
18Harness, Wire (Main)
18WPL 591014
18Harness, STD (Door Switch)
18Roll Tape, Exhaust Duct
18261900 Whirlpool Microwave Spray
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Green)
184448664 Whirlpool Oven Mounting Bracket
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18350930 Whirlpool White Spray Paint
18WP112432 Whirlpool Nut Assembly
18WP488366 Whirlpool Refrigerator Clamp
18WP4449809 Whirlpool Screw
184450800 Whirlpool Oven Screw
18285006 Whirlpool Spray
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18WP261869 Whirlpool Microwave Paint
18242831 Whirlpool Oven Wire
18WP4448950 Whirlpool Screw
18814381 Whirlpool Pin
18WP482338 Whirlpool Refrigerator Adhesive
1872032 Whirlpool Touch Up Paint Black
1872017 Whirlpool Appliance Touch-Up Paint White
