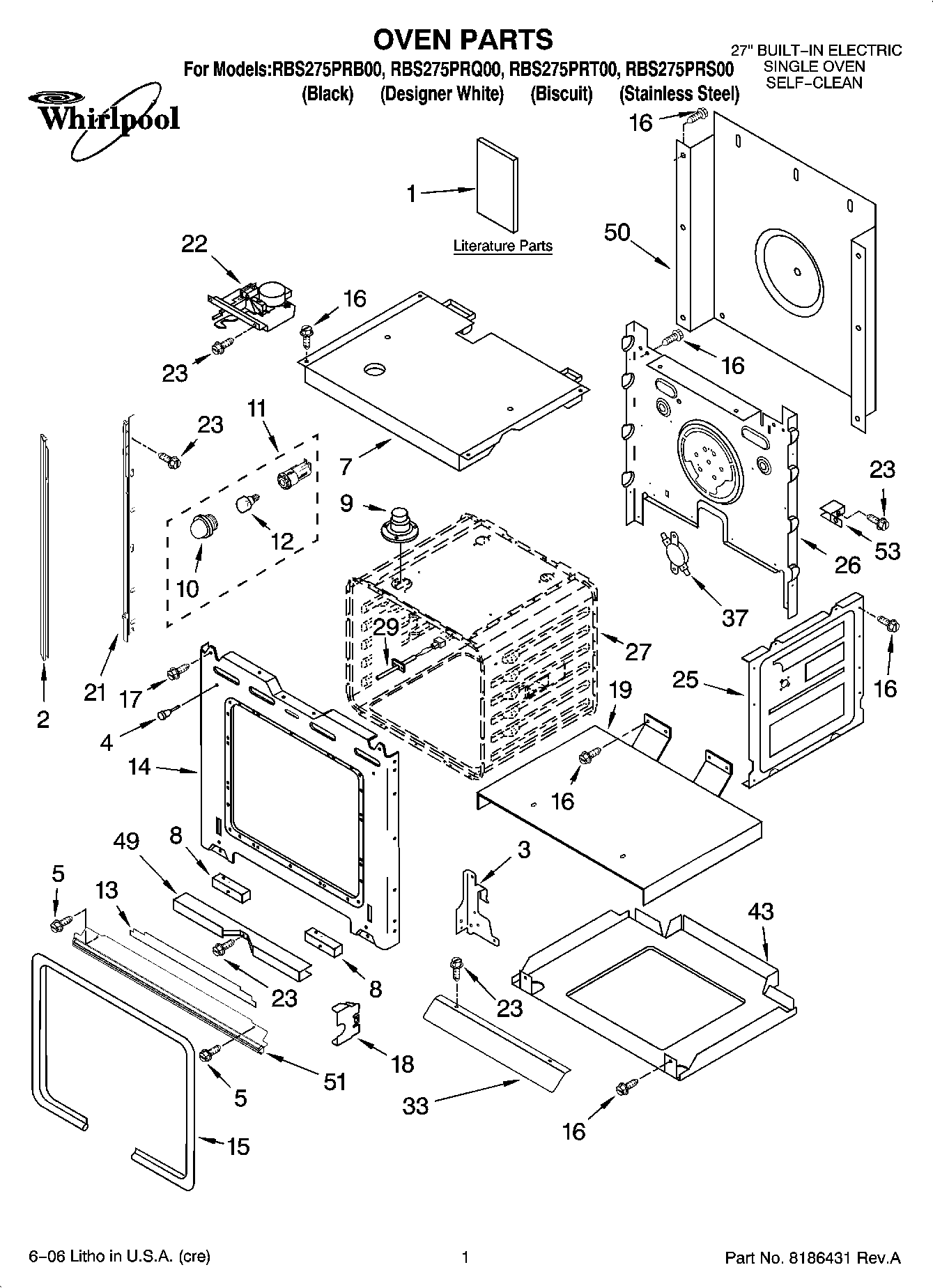

RBS275PRT00 01 – OVEN PARTS

RBS275PRT00 01 – OVEN PARTS

Written by

in

RBS275PRT00 01 – OVEN PARTS

Products

PositionProduct
1Safe Cooking Tips
1Safe Cooking Tips (French)
1Installation, MWO Trim Kit
1Installation Instructions (Undercounter, Oven)
1Installation Instructions
1Tech Sheet
1Use & Care Guide (Oven)
2WPW10339493 Whirlpool Trim Assembly
2Trim, Side (RH Biscuit)
2Trim, Side (LH Biscuit)
2Trim, Side (LH S.Steel)
2Trim, Side (RH S.Steel)
2Trim, Side (RH White)
2Trim, Side (RH Black)
2Trim, Side (LH White)
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
44448520 Whirlpool Oven Bumper
5WP3400832 Whirlpool Screw
5WP3400805 Whirlpool Screw Assembly
7Top, Chassis
8Spacer, Foam
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Insulation, Bottom Vent
14Frame, Front
15WP4455381 Whirlpool Door Gasket
16WP4449809 Whirlpool Screw
17Screw
184452152 Whirlpool Oven Mounting Bracket
19Support, Insulation
218303116 Whirlpool Oven Mounting Rail
218303115 Whirlpool Oven Mounting Rail
22WP9760889 Whirlpool Door Latch
23WP4449154 Whirlpool Screw
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
33Deflector, Vent
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51WPL 8302940
51WPL 8302939
51Trim,
51Trim, Bottom (Black Model)
53FOLLOWING PARTS NOT ILLUSTRATED INSULATION
53WPL 4449845
53WPL 4449315
53WPL 4450364
