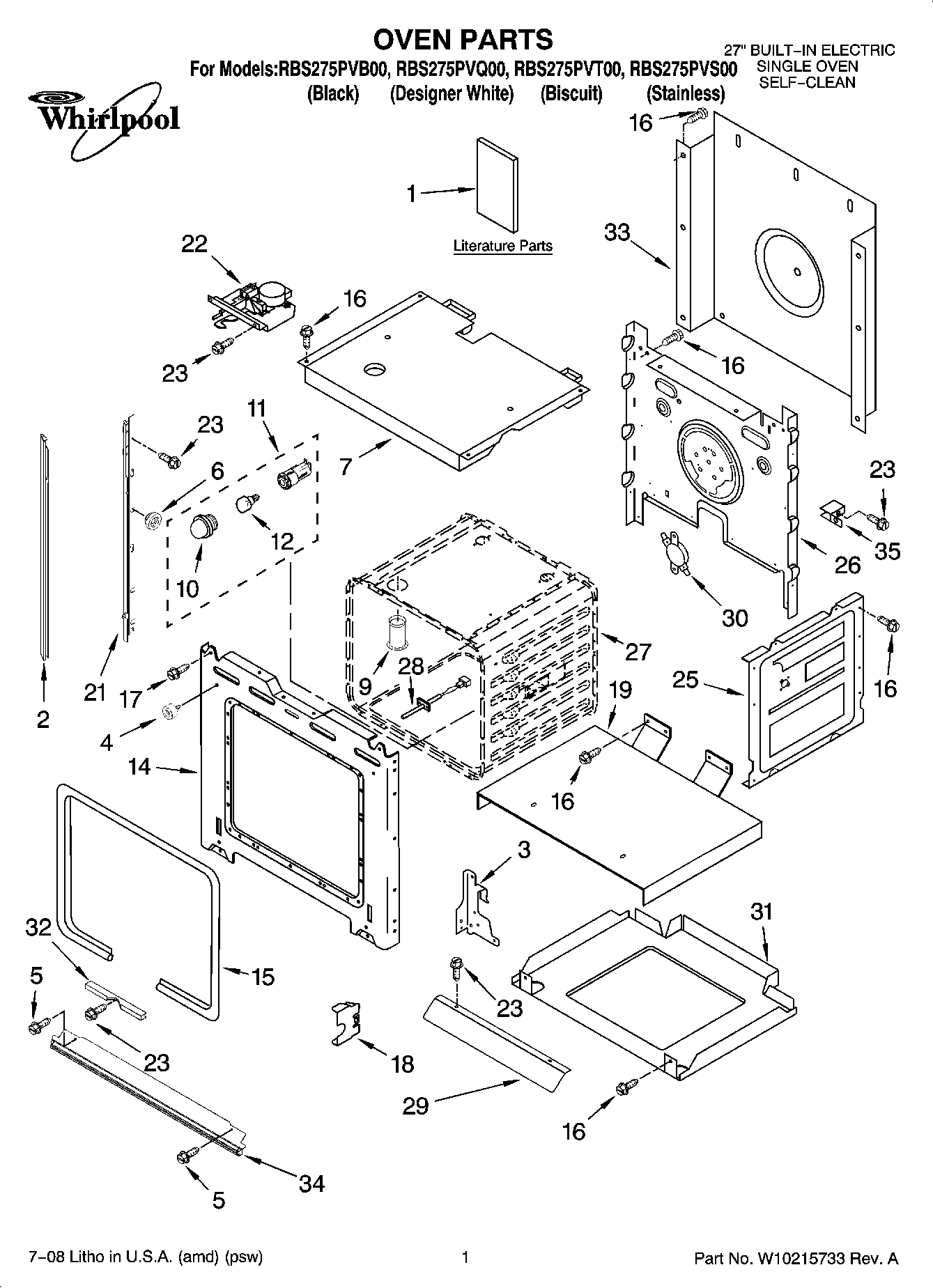

RBS275PVB00 01 – OVEN PARTS
Written by
in
RBS275PVB00 01 – OVEN PARTS
Products
Position
Product
WPL 4449315
WPL 4450364
WPL ARI120928A
Followin
1
Use & Care Guide
1
Installation Instructions (Undercounter Oven)
1
Tech Sheet
1
Installation Instructions
1
Safe Cooking Tips (French)
1
Safe Cooking Tips
1
Installation, MWO Trim Kit
2
Trim, Side Right (Black)
2
Trim, Side Right (Stainless)
2
WPW10339493 Whirlpool Trim Assembly
2
Trim, Side Right (White)
2
Trim, Side Left (White)
2
Trim, Side Right (Biscuit)
2
Trim, Side Left (Biscuit)
2
Trim, Side Left (Stainless)
3
WP4455605 Whirlpool Left Hand Hinge
3
WP4455606 Whirlpool Right Hand Hinge
4
W10105790 Whirlpool Bumper
5
WP3400832 Whirlpool Screw
5
WP3400805 Whirlpool Screw Assembly
6
WP4448444 Whirlpool Grommet
7
Top, Chassis
9
SCREW
9
W10861715 Whirlpool Vent Tube
10
Lens, Light (2)
11
WPW10734065 Whirlpool Light
12
WP4173175 Whirlpool Light Bulb
14
Frame, Front
15
WP4455381 Whirlpool Door Gasket
16
WP4449809 Whirlpool Screw
17
Screw
18
4452152 Whirlpool Oven Mounting Bracket
19
Support, Insulation
21
8303116 Whirlpool Oven Mounting Rail
21
8303115 Whirlpool Oven Mounting Rail
22
WP9760889 Whirlpool Door Latch
23
WP4449154 Whirlpool Screw
25
W10782197 Whirlpool Side Panel
26
Back, Chassis
27
Liner, Oven (Not serviceable)
28
WPW10131825 Whirlpool Oven Temperature Sensor
29
Deflector, Vent
30
WP9759243 Whirlpool Thermostat
31
Base, Chassis
32
WP4448933 Whirlpool Retainer
33
WP4451747 Whirlpool Rear Cover
34
Trim, Bottom Vent (Stainless)
34
Trim, Bottom Vent (Black)
34
Trim, Bottom Vent (White)
34
Trim, Bottom Vent (Biscuit)
35
WPL 4449845
←
