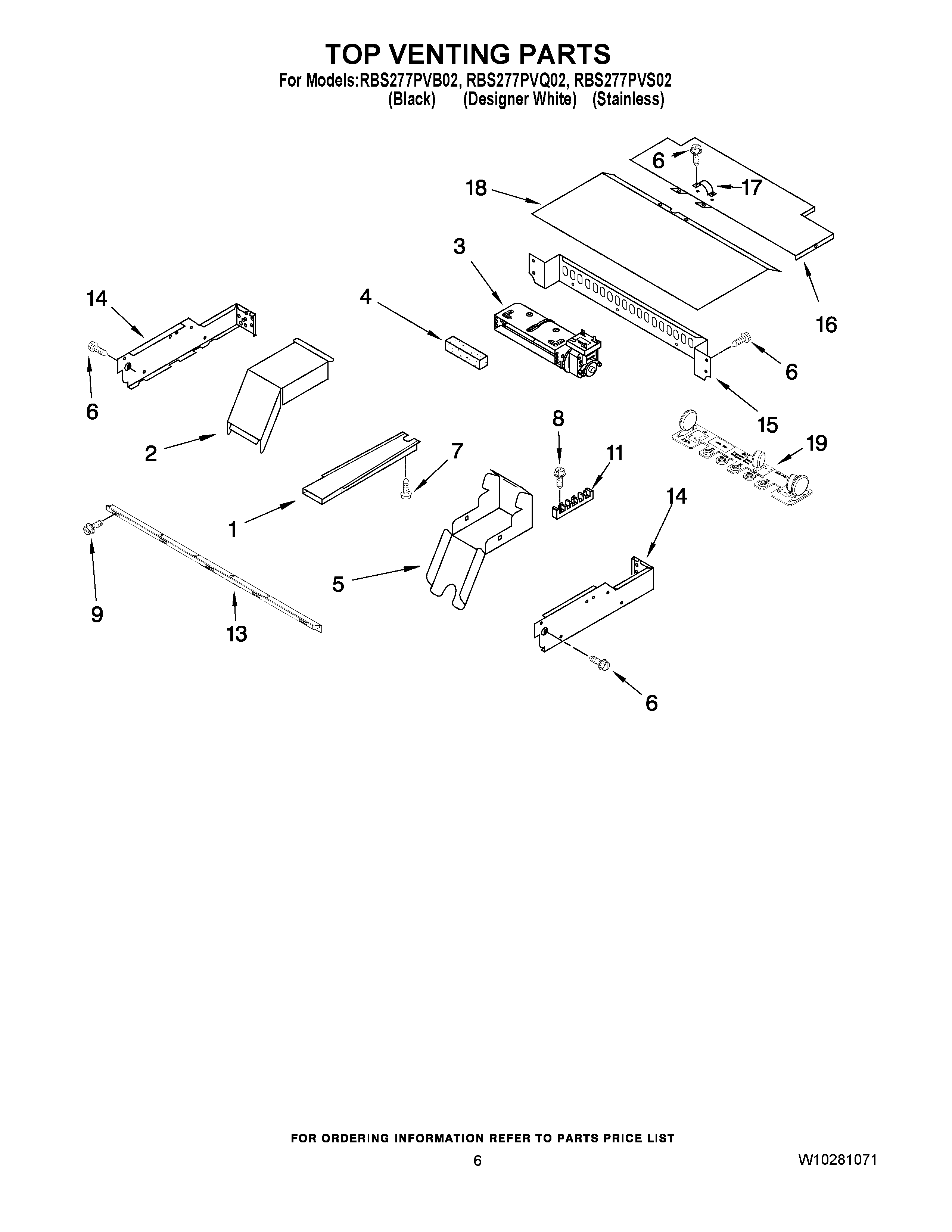

RBS277PVQ02 05 – TOP VENTING PARTS

RBS277PVQ02 05 – TOP VENTING PARTS

Written by

in

RBS277PVQ02 05 – TOP VENTING PARTS

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3WPW10176670 Whirlpool Blower
4W10491987 Whirlpool Foam Seal
54455177 Whirlpool Oven Bottom Elbow
6WP4449809 Whirlpool Screw
7Screw
8Screw
9WP4450038 Whirlpool Screw
11BLOCK, TERMINAL
13VENT, CONTROL PANEL
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16Cover, Top Rear
174448664 Whirlpool Oven Mounting Bracket
18Cover, Top Front
19WP4451985 Whirlpool Noise Filter Board
