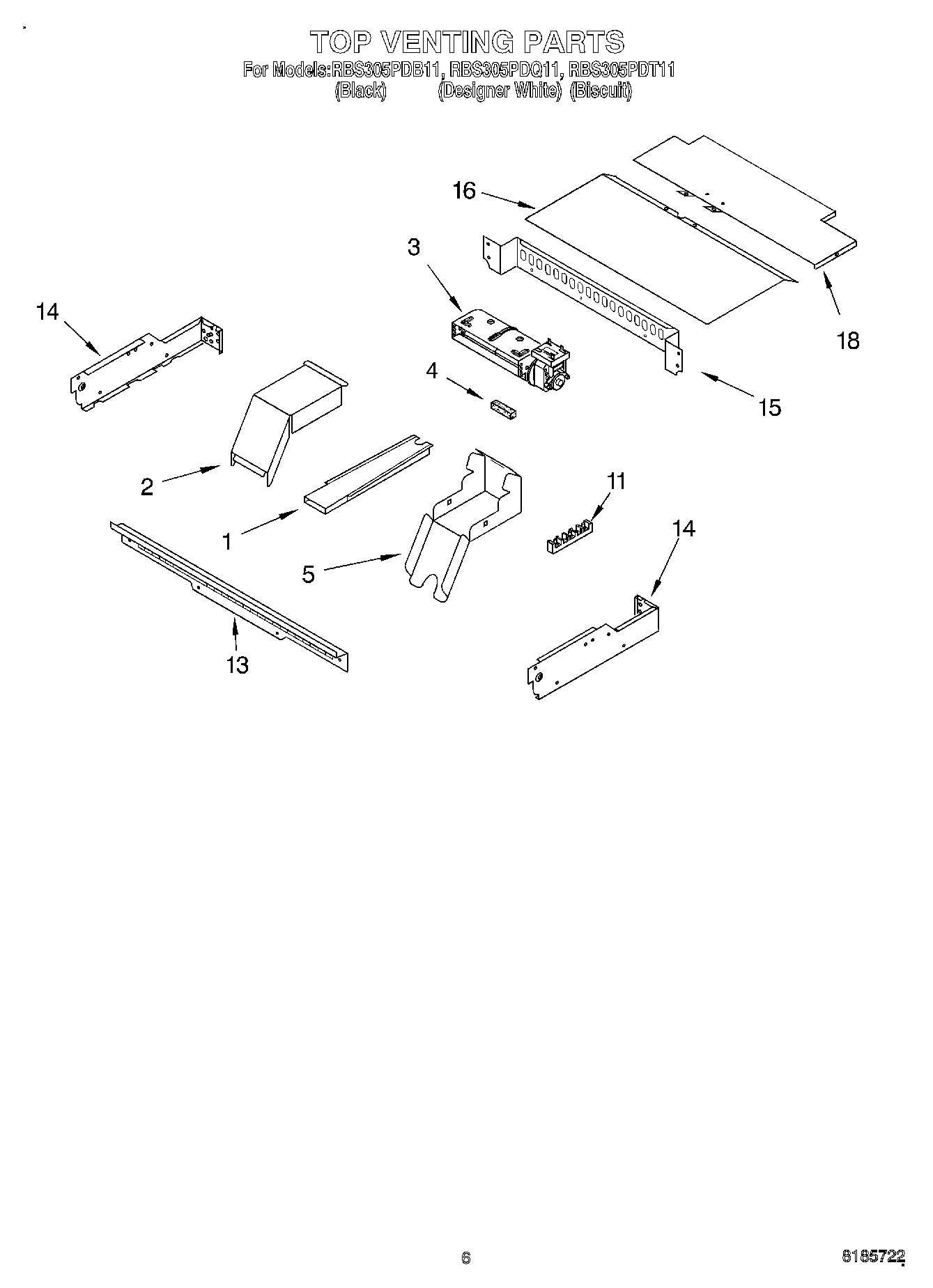

RBS305PDB11 05 – TOP VENTING, OPTIONAL

RBS305PDB11 05 – TOP VENTING, OPTIONAL

Written by

in

RBS305PDB11 05 – TOP VENTING, OPTIONAL

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
1Screw
24455178 Whirlpool Oven Top Elbow
3Blower
3WP4455352 Whirlpool Mounting Bracket
4W10491987 Whirlpool Foam Seal
54455177 Whirlpool Oven Bottom Elbow
11WP8203546 Whirlpool Terminal Block
11Screw
13WP4450038 Whirlpool Screw
13Vent, Control Panel
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
18261900 Whirlpool Microwave Spray
18WP4450952 Whirlpool Conduit
1818 Ga. 80~c Rating (Red)
18Wire (12 Ga. 150 c Black)
18Wire (14 Ga. 200 c Brown)
181
18WPL 591014
18WP4452367 Whirlpool Top Cover
184451761 Whirlpool Oven Support Bracket
18Wire, 25` Roll (Red 14 Ga.)
18Harness, Wire (EDC)
18Wire (14 Ga. 150 c Yellow)
18285006 Whirlpool Spray
18WPW10339879 Whirlpool Wire Tie
184450800 Whirlpool Oven Screw
184448664 Whirlpool Oven Mounting Bracket
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Black 14 Ga.)
18WP112432 Whirlpool Nut Assembly
18WP4449809 Whirlpool Screw
1872017 Whirlpool Appliance Touch-Up Paint White
1872032 Whirlpool Touch Up Paint Black
18WP482338 Whirlpool Refrigerator Adhesive
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18WP261869 Whirlpool Microwave Paint
18242831 Whirlpool Oven Wire
18Spacer, Harness
18WP4448950 Whirlpool Screw
18814381 Whirlpool Pin
18350930 Whirlpool White Spray Paint
