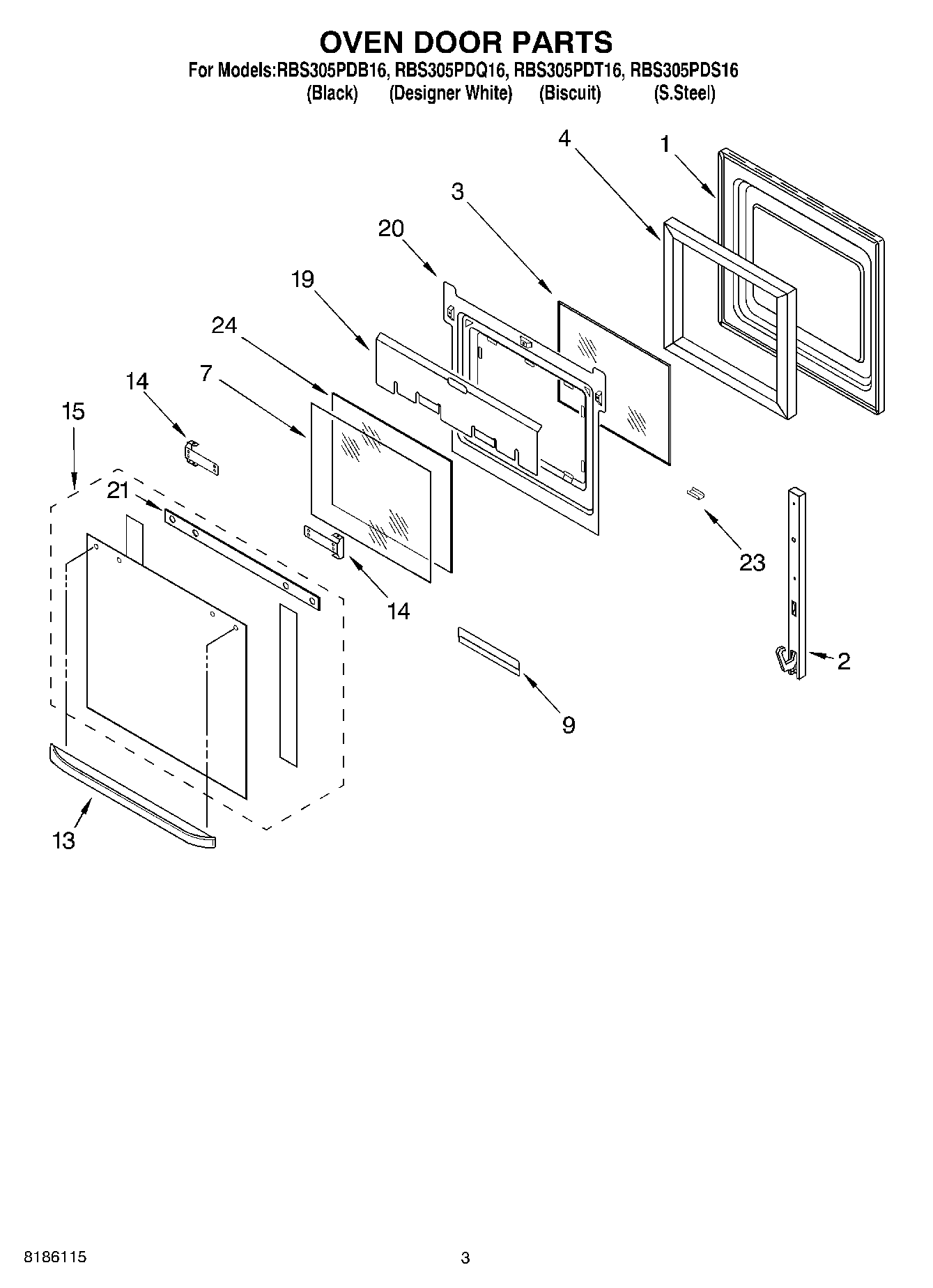

RBS305PDB16 02 – OVEN DOOR PARTS

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	WP9759413 Whirlpool Door Liner
2	Hinge, Door (R.Side)
2	WP9760572 Whirlpool Door Hinge
2	WP9760571 Whirlpool Door Hinge
2	HINGE-DOOR LH/SS DOOR SPRING
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
7	WP4449263 Whirlpool Inner Door Glass
9	Retainer, Glass
13	Door Handle (White Model)
13	Door Handle (Black Model)
13	Door Handle (Biscuit)
14	Screw
14	Bracket, Handle
15	WP9759074 Whirlpool Outer Door Glass
15	WP9759641 Whirlpool Outer Door Glass
15	Door Glass (White Model)
15	Door Glass (Biscuit)
19	Shield, Heat
19	WP4449809 Whirlpool Screw
20	Retainer, Glass
20	WP3400832 Whirlpool Screw
21	Seal, Door Top
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (Black Model)
23	WP4449743 Whirlpool Screw
23	Clip, Retainer (White Model)
24	Glass, Inner
