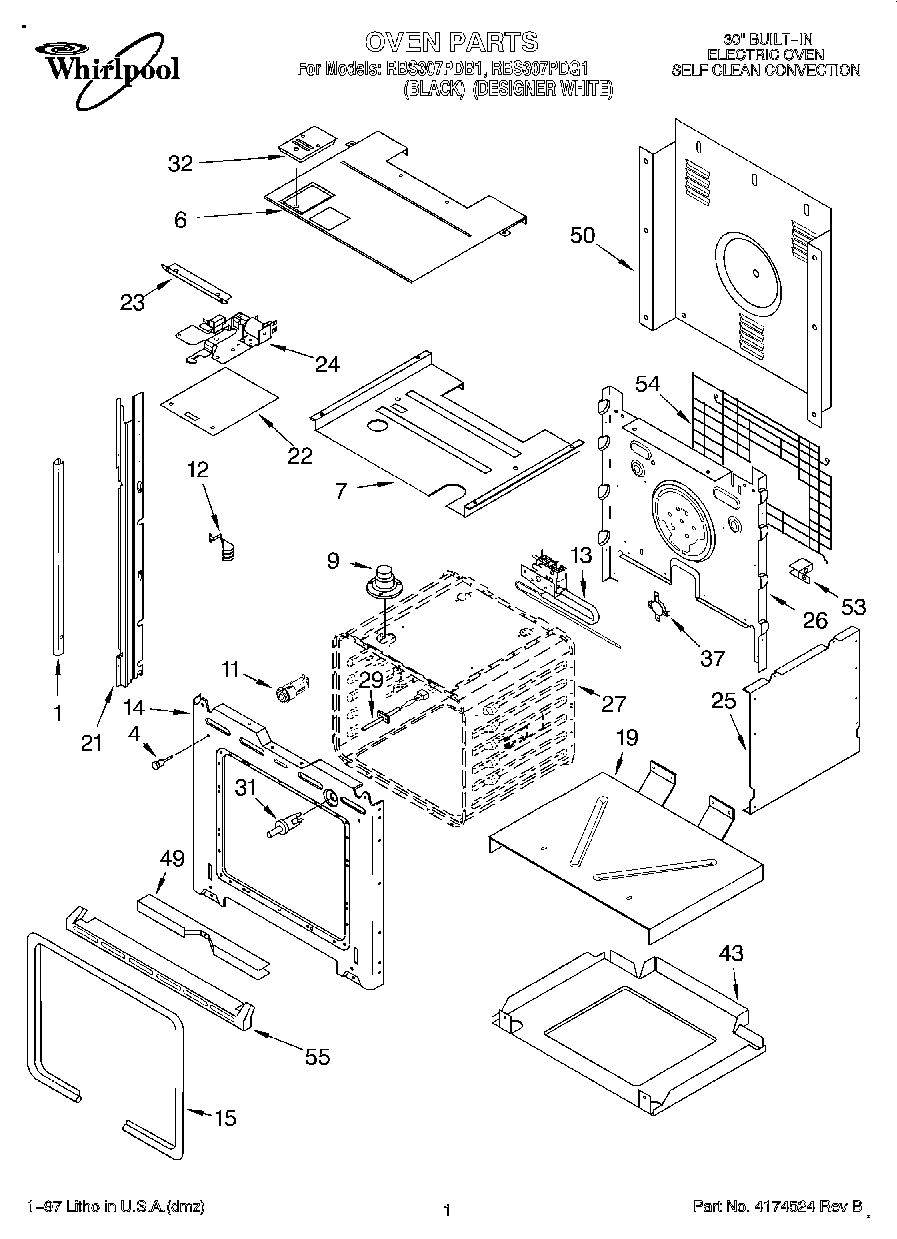

RBS307PDB1 01 – OVEN

Products

Position	Product
1	WP8281236 Whirlpool Screw
1	Trim, Side (White)
1	Trim, Side (LH White Screw)
1	Trim, Side (RH Black)
1	Trim, Side (White, Right)
1	Trim, Side (LH Black)
4	4448520 Whirlpool Oven Bumper
6	Divider, Vent
7	Partition
9	Tube, Vent
11	WPW10734065 Whirlpool Light
12	98005642 Whirlpool Clip
13	Safety Switch (Oven Temp)
14	Frame, Front
14	Screw
15	W11675844 Whirlpool Oven Gasket
19	Support, Insulation
21	814371 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
21	814372 Whirlpool Oven Rail Mount
22	Trim, Bottom (Screw)
22	Shield, Latch
23	Deflector, Latch
24	Latch, Assy
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
31	Switch, Door
32	Vent Box Assy
37	WP4450934 Whirlpool Thermostat Assembly
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	Cover, Back
53	WPL 4449845
54	WP4449809 Whirlpool Screw
54	Spacer, Harness
55	W11684730 Whirlpool Insulation
55	WPL 4448477
55	WPL 4448478
55	WPL 4450365
55	Screw, (2)
