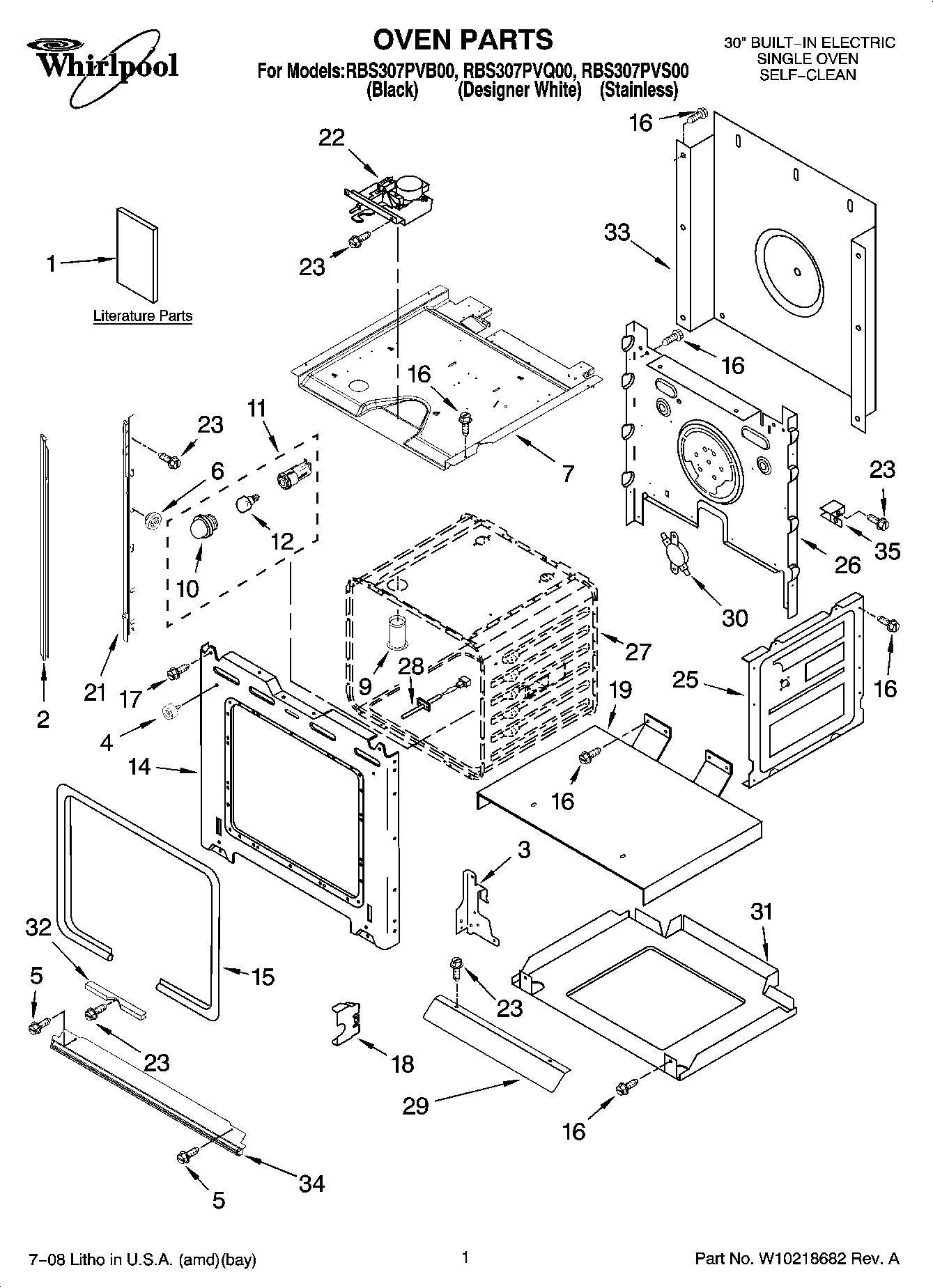

RBS307PVB00 01 – OVEN PARTS

Products

Position	Product
	W11684730 Whirlpool Insulation
	Follo
	WPL ARI121143A
	WPL 4450365
1	French
1	Installation Instructions
1	Installation, MWO Trim Kit
1	Installation Instructions (Undercounter Oven)
1	Safe Cooking Tips
1	Safe Cooking Tips (French)
1	Tech Sheet
1	Use & Care Guide
2	Trim, Side Right (Biscuit)
2	Trim, Side Left (White)
2	Trim, Side Right (White)
2	Trim, Side Right (Black)
2	Trim, Side Left (Biscuit)
2	WPW10339493 Whirlpool Trim Assembly
2	Trim, Side Left (Stainless)
2	Trim, Side Right (Stainless)
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	W10105790 Whirlpool Bumper
5	WP3400832 Whirlpool Screw
5	WP3400805 Whirlpool Screw Assembly
6	WP4448444 Whirlpool Grommet
7	Top Chassis
9	SCREW
9	W10861715 Whirlpool Vent Tube
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
14	WPW10115831 Whirlpool Front Frame
15	WP4455381 Whirlpool Door Gasket
16	WP4449809 Whirlpool Screw
17	Screw
18	4452152 Whirlpool Oven Mounting Bracket
19	Support, Insulation
21	8303116 Whirlpool Oven Mounting Rail
21	8303115 Whirlpool Oven Mounting Rail
22	WP9760889 Whirlpool Door Latch
23	WP4449154 Whirlpool Screw
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
28	WPW10131825 Whirlpool Oven Temperature Sensor
29	9760677 Whirlpool Oven Vent Deflector
30	WP9759243 Whirlpool Thermostat
31	Base, Chassis
32	WP4448933 Whirlpool Retainer
33	WP4451747 Whirlpool Rear Cover
34	WPW10207689 Whirlpool Trim Kit
34	Trim, Bottom Vent (Stainless)
35	WPL 4449845
