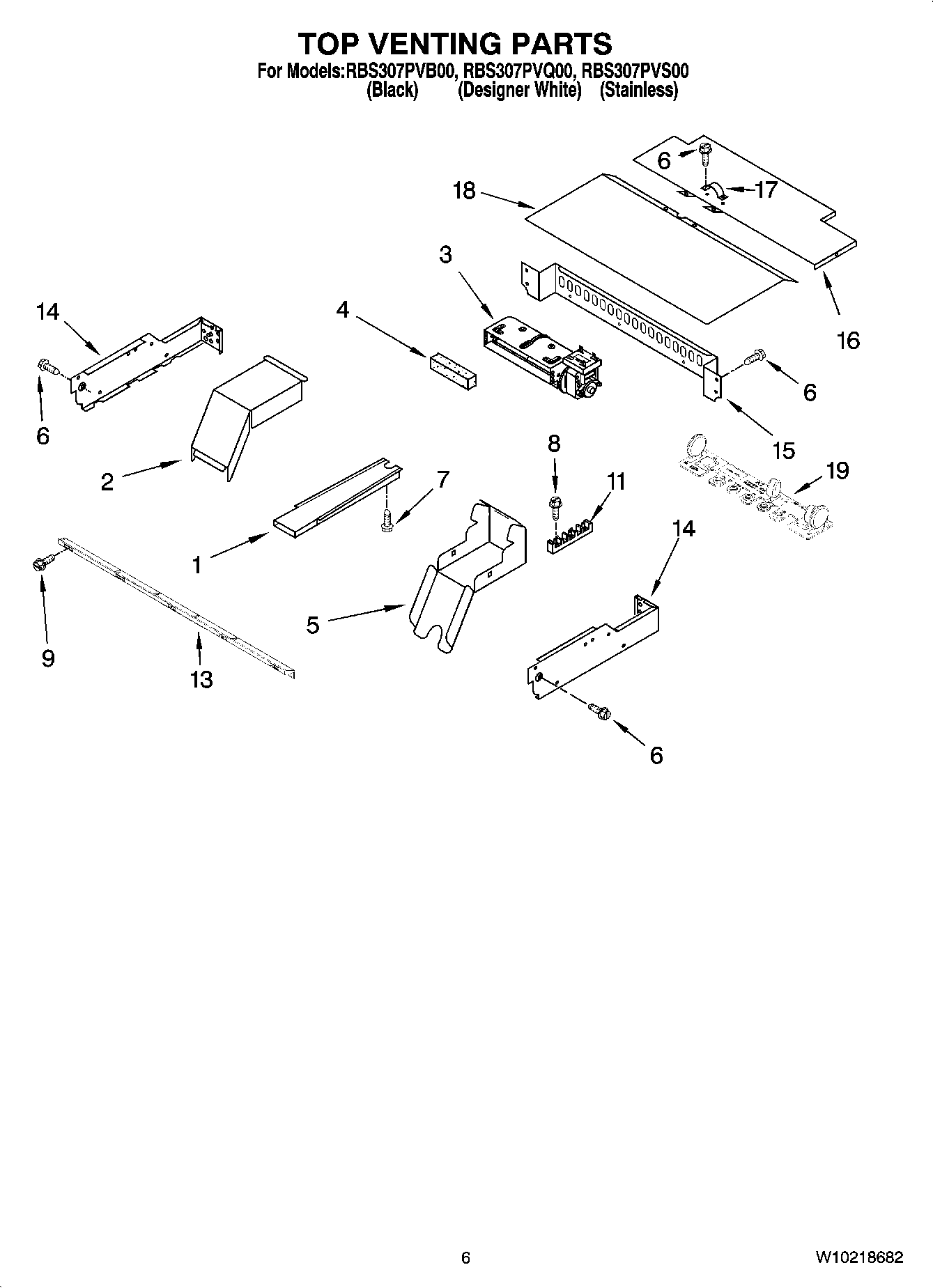

RBS307PVB00 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
WP261869 Whirlpool Microwave Paint
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
ADHESIVE
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
8301399 Whirlpool Oven Wire Harness
WPL 591014
261900 Whirlpool Microwave Spray
Miscellaneous
WP4450952 Whirlpool Conduit
242831 Whirlpool Oven Wire
4452400 Whirlpool Microwave Wire Harness
72017 Whirlpool Appliance Touch-Up Paint White
WIRING HARNESS PARTS
SPLICING WIRES–25FT. LENGTH
Nut
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
4448664 Whirlpool Oven Mounting Bracket
4450800 Whirlpool Oven Screw
WPW10339879 Whirlpool Wire Tie
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
8528351 Whirlpool Clip
WP4448950 Whirlpool Screw
4451761 Whirlpool Oven Support Bracket
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3WPW10176670 Whirlpool Blower
4W10491987 Whirlpool Foam Seal
54455177 Whirlpool Oven Bottom Elbow
6WP4449809 Whirlpool Screw
7Screw
8Screw
9WP4450038 Whirlpool Screw
11WP8203546 Whirlpool Terminal Block
138303497 Whirlpool Oven Vent Control
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
18WP4452367 Whirlpool Top Cover
19WP4451985 Whirlpool Noise Filter Board
