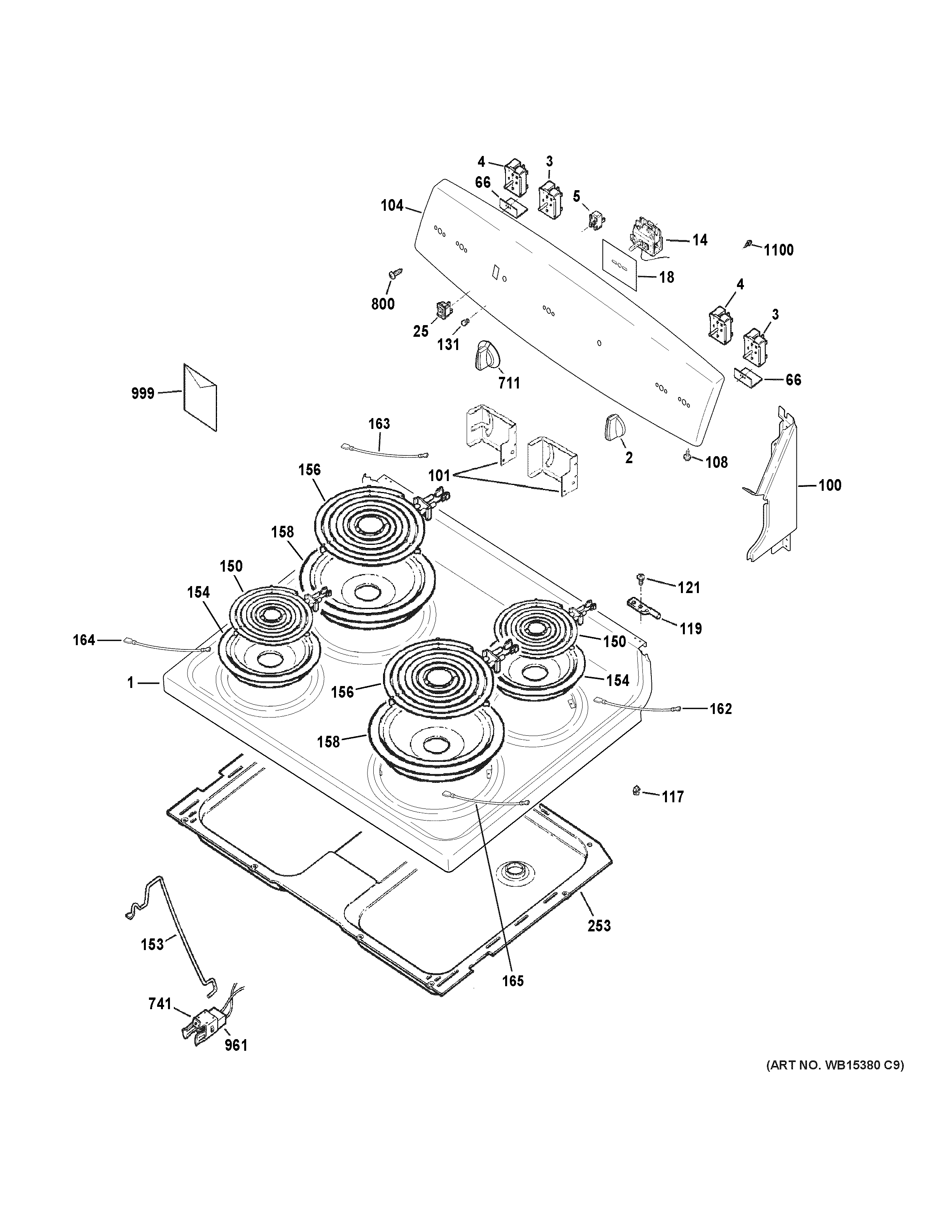

RBS330DR3WW CONTROL PANEL & COOKTOP

RBS330DR3WW CONTROL PANEL & COOKTOP

Written by

in

RBS330DR3WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62X21353 GE Range Top
2KNOB VALVE
3WB24T10025 SWITCH INFIN(2500W)
4WB24T10022 GE Oven Infinite Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
14WB24X21192 GE Oven Electric Thermostat
18CARTON COVER THERMOSTAT
25WB24X20459 GE Oven Rocker Switch Sealed
66COVER THERMOSTAT
100WB07X20277 GE Range Right End Support
100END SUPPORT LEFT
101WB37X20196 GE Cooktop Bracket
101WB37X20193 GE Cooktop Bracket
104WHITE TRIM CONTROL
108WB01K10091 GE Oven Screw
117WB02K10075 GE Oven Plastic Nail
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WZ4X345D GE Screw Package 12 C92
131WB25T10041 GE Oven Lens
150WB31X46067 GE 6" Surface Burner
153WB02K10026 GE Oven Rod Support
154BOWL BURNER 6 (CH)
156WB31X46066 GE Surface Burner 8"
158BOWL BURNER 8 (CH)
162WB18X27485 GE Surface Unit Harness
163WB18X27486 GE Surface Unit Harness
164WB18X27487 GE Oven Surface Unit Harness
165WB18X27488 GE Oven Surface Unit Harness
253WB64K10009 GE Oven Cooktop Box
711WB03X21365 GE Oven Knob Thermostat Assembly
741WB02K10133 GE Oven Receptacle Clip
800WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
961WB17T10006 GE Oven Burner Receptacle Block
999PM INSERT INSTRUCTIONS
999PM OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
999PM MINI MANUAL AND WIRING
999PM QUICK OWNERS MANUAL
1100GEN WB01X5874
