RBS360DM2WW CONTROL PANEL & COOKTOP

RBS360DM2WW CONTROL PANEL & COOKTOP

Written by

in

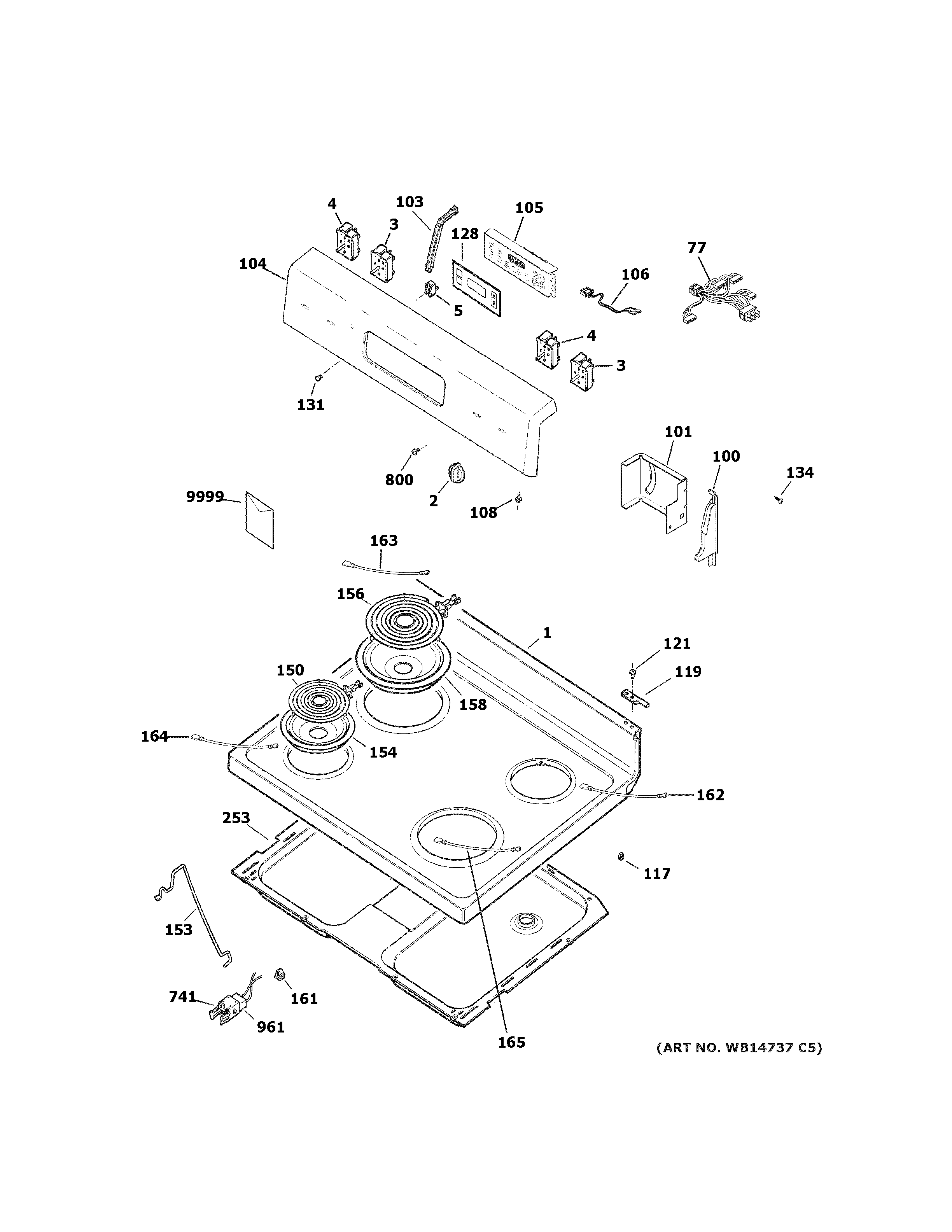

RBS360DM2WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62X21353 GE Range Top
2WB03T10282 GE Oven Infinite Knob (White)
3WB24T10025 SWITCH INFIN(2500W)
4WB24T10022 GE Oven Infinite Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
77WB18X32877 GE Main Harness
100WB07K10195 GE Oven Right White End Support
100WB07K10196 GE Oven Left End Support (White)
101BRACKET COOK TOP
101WB37X20193 GE Cooktop Bracket
103GEN WB02K10076
104WB36X22806 GE Oven Control Trim
105CONTROL OVEN TO9 (ELEC)
106WB18X31489 GE Control Harness
108WB1X536 GE Oven Screw
117GEN WB02K0017
117WB02K10075 GE Oven Plastic Nail
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
128WB07X31447 GE White Overlay T09
131WB25T10041 GE Oven Lens
134GEN WB01X5874
150WB31X46067 GE 6" Surface Burner
153WB02K10026 GE Oven Rod Support
154BOWL BURNER 6 (CH)
156WB31X46066 GE Surface Burner 8"
158BOWL BURNER 8 (CH)
161CLIP WIRE
162WB18X27485 GE Surface Unit Harness
163WB18X27486 GE Surface Unit Harness
164WB18X27487 GE Oven Surface Unit Harness
165WB18X27488 GE Oven Surface Unit Harness
253WB64K10009 GE Oven Cooktop Box
741WB02K10133 GE Oven Receptacle Clip
800WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
961WB17T10006 GE Oven Burner Receptacle Block
9999PM INSTALL INSTRUCTIONS
9999WB49X21392 GE Oven Hinge Service Kit
