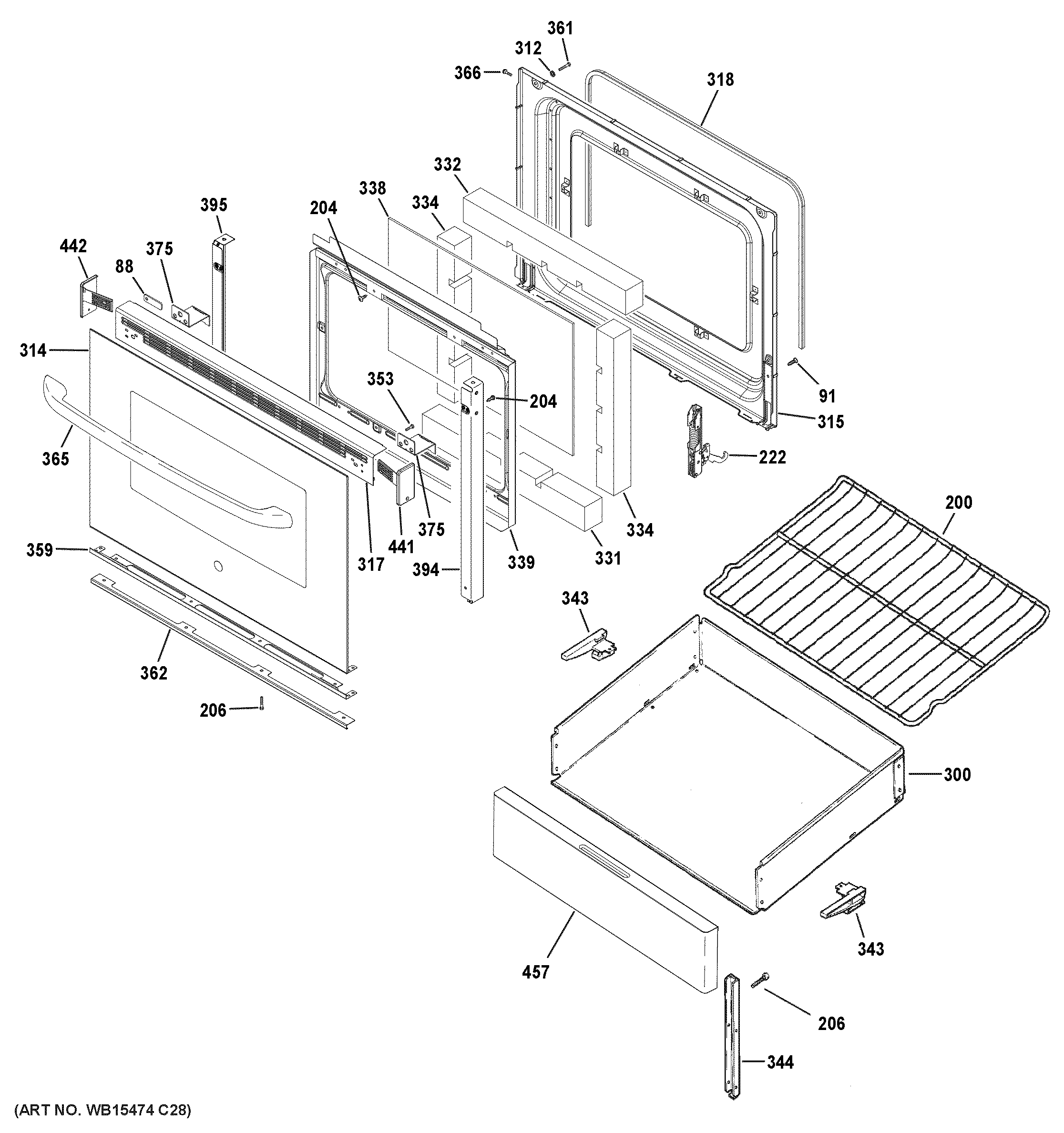

RBS400GM1SH DOOR & DRAWER PARTS

RBS400GM1SH DOOR & DRAWER PARTS

Written by

in

RBS400GM1SH DOOR & DRAWER PARTS

Products

PositionProduct
88GEN WB02K0062
91WB01T10008 GE Oven Screw 10-32
200OVEN RACK
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
222WB10X21979 GE Oven Door Hinge
300WB58K10015 GE Oven Drawer Body
312WB01K10093 GE Oven Speednut
314WB57K4 GE Oven Black Glass Door
315WB56X20206 GE Range Door Panel
317WB07K10200 GE Oven Vent Trim Assembly
318WB35X29720 GE Oven Door Gasket
331WB35K10147 GE Oven Bottom Insulation Door
332WB35K10148 GE Oven Door Top Insulation
334WB35K10146 GE Door Side Insulation
338WB56X23809 GE Oven Range Door Crystal Window
339WB56K10033 GE Oven Insulation Guard
343WB02K10061 GE Oven Drawer Glide
343WB02K10062 GE Oven Drawer Glide
344WB02K10398 GE Range Mounting Bracket Drawer
353GEN WB01K0078
359WB07K10232 GE Oven Bottom Trim Assembly
361WB01K10012 GE Oven Screw 8-22 PL 1HX
362WB07X20288 GE Oven Barrier Door
365WB15K10099 GE Oven Handle
366WB1K62 GE Oven Door Assembly
375WB02K10245 GE Oven Door Bracket
394WB07X23479 GE Right Trim Post
395WB07X23478 GE Trim Post Left
441WB7K263 GE Oven Door Endcap
442WB7K264 GE Oven Door Endcap
457PRO STEEL PANEL DRAWER
