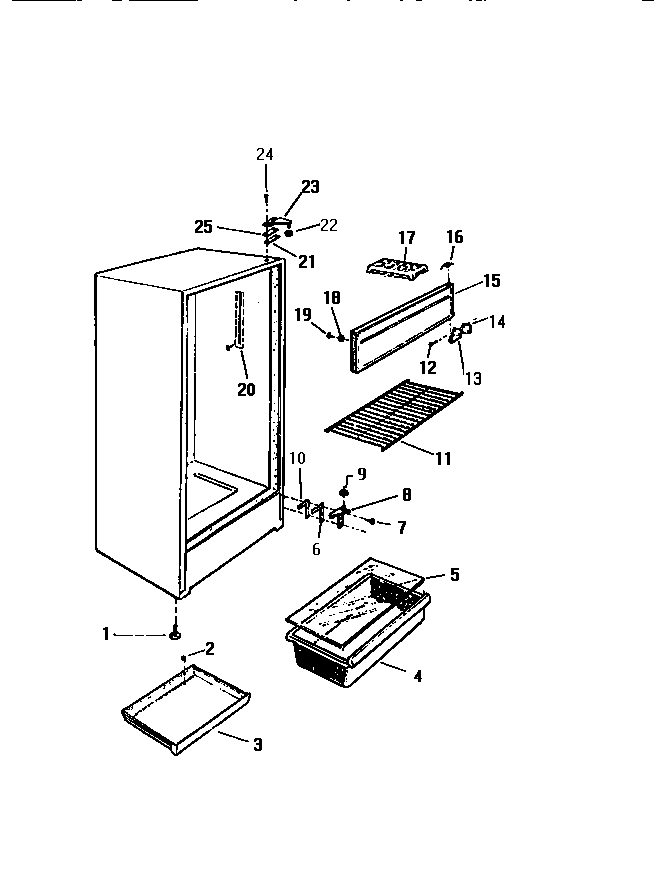

RC101GLH6 03 – CABINET, SHELVES, DIVIDER, FAN ASSE

RC101GLH6 03 – CABINET, SHELVES, DIVIDER, FAN ASSE

Written by

in

RC101GLH6 03 – CABINET, SHELVES, DIVIDER, FAN ASSE

Products

PositionProduct
1WCI F155435
2WCI F86920
3WCI F164342
4WCI F156704-71
5WCI F161253
6WCI F84945
6AWCI F84946
7154518001 Frigidaire Refrigerator Screw
8WCI F84943
8AWCI F86501
10WCI F84948
11WCI F161107
12216858001 Frigidaire Refrigerator Screw
13AWCI 154008
13WCI 152874
14WCI F152943
15BWCI F161351
15WCI F156541-6
15AWCI F1613501
16WCI F152877
16AWCI F152878
17ICE TRAY
18WCI F160966
19WCI F152876
20WCI F154126
21PLATE-TOP
22BEARING, HINGE (3)
23AWCI F93192
23WCI F93193
24SCREW-HINGE-FRONT
25WCI F900123
