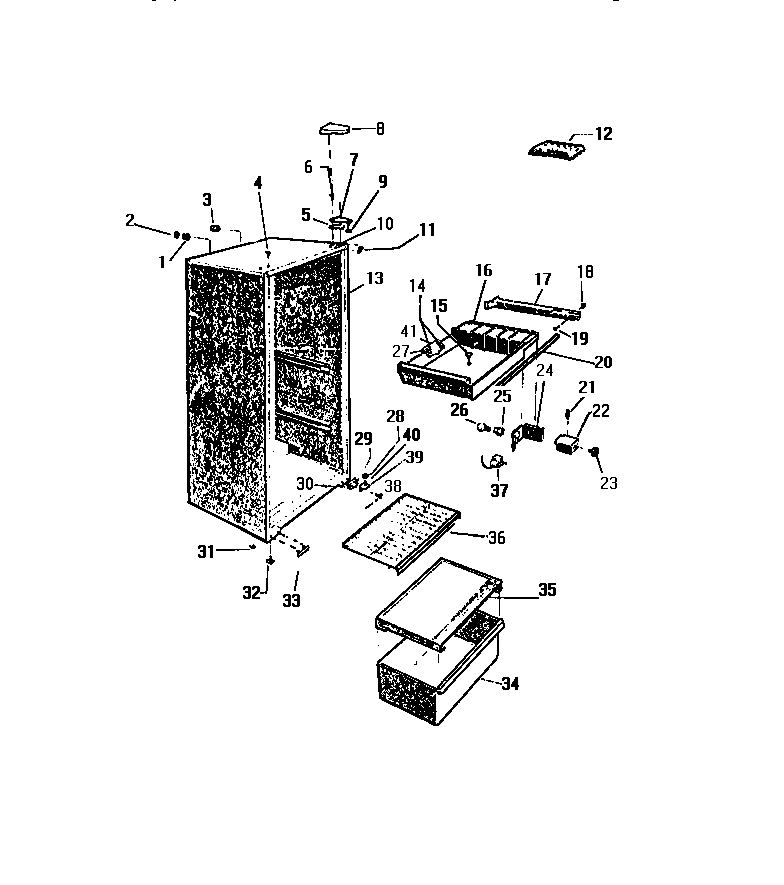

RC131GCF1 03 – CABINET, SHELVES, DIVIDER, FAN ASSE

Products

PositionProduct
1WCI G174733
2WCI G174734
3TUBE, INSULATION (2)
4WCI G174747-10
5WCI G183861
6241710601 Frigidaire Refrigerator Screw
7BRACKET, TOP HINGE
8COVER HINGE, COFFEE
9WCI G103903
10WCI G15759
11TRIM, COFFEE
12ICE TRAY
13WCI Q162892-01
14CLIP-CANOE (2) (NON-ILLUSTRATED)
15STOPPER-RUBBER
16DRIP TRAY
17SUPPORT-TRAY RH
18WCI G158229
195304455650 Frigidaire Refrigerator Screw
20GASKET-TRAY (NON-ILLUSTRATED)
215309918806 Frigidaire Refrigerator Light Switch Door
22WCI G163211-31
23WCI G174781-17
24BRACKET-CONTROL
25SOCKET LIGHT
26WCI Q63749
27WCI G179612
28WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
29SHIM, HINGE
30TAPPING PLATE (2)
31NUT, ANCHOR (2)
32LEG-LEVELING (2)
33WCI G166912
34PAN, STORAGE
35COVER-CRISPER
36SHELF-SLIDING (2)
37CONTROL, TEMPERATURE
39BRACKET, HINGE, LOWER
405303001321 Frigidaire Refrigerator Lower Hinge Pin
41LABEL-BAFFLE (NON-ILLUSTRATED)
