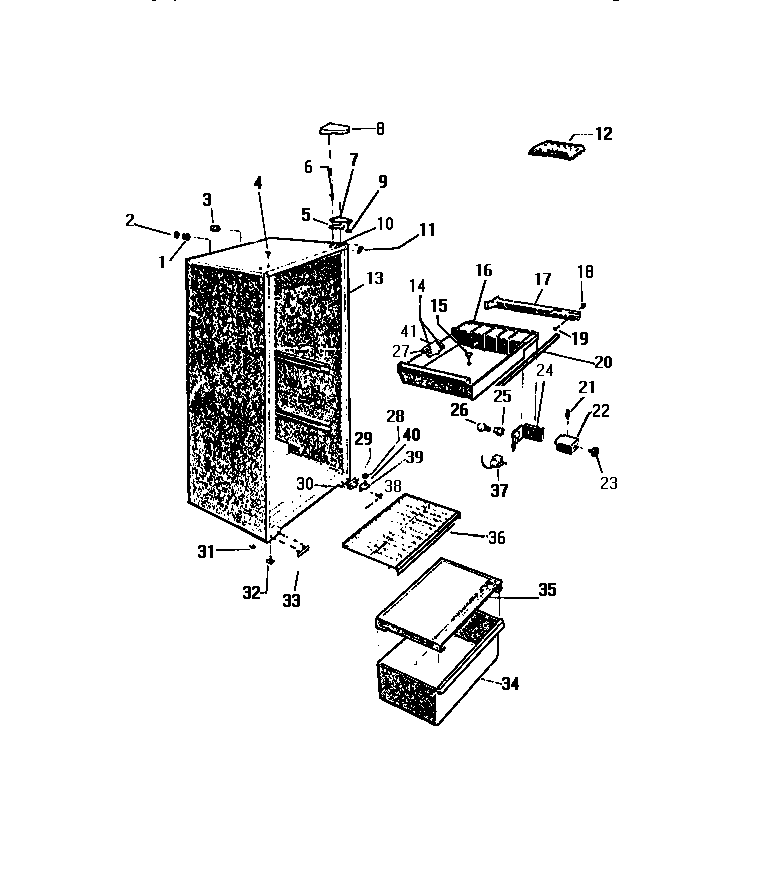

RC131GCW3 03 – CABINET, SHELVES, DIVIDER, FAN ASSE

RC131GCW3 03 – CABINET, SHELVES, DIVIDER, FAN ASSE

Written by

in

RC131GCW3 03 – CABINET, SHELVES, DIVIDER, FAN ASSE

Products

PositionProduct
1WCI G174733
2WCI G174734
3TUBE, INSULATION (2)
4WCI G174747–01
5WCI G183861
6241710601 Frigidaire Refrigerator Screw
7BRACKET, TOP HINGE
8COVER HINGE, WHITE
9WCI G103903
10WCI G15759
11TRIM (4)
12ICE TRAY
13WCI Q162892-01
14CLIP-CANOE (2) (NON-ILLUSTRATED)
15STOPPER-RUBBER
16DRIP TRAY
17SUPPORT-TRAY RH
18WCI G158229
195304455650 Frigidaire Refrigerator Screw
20GASKET-TRAY (NON-ILLUSTRATED)
215309918806 Frigidaire Refrigerator Light Switch Door
22WCI G163211-31
23WCI G174781-17
24BRACKET-CONTROL
25SOCKET LIGHT
26WCI Q63749
27WCI G179612
28WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
29SHIM, HINGE
30TAPPING PLATE (2)
31NUT, ANCHOR (2)
32LEG-LEVELING (2)
33WCI G166912
34PAN, STORAGE
35COVER-CRISPER
36SHELF-SLIDING (2)
37CONTROL, TEMPERATURE
39BRACKET, HINGE, LOWER
405303001321 Frigidaire Refrigerator Lower Hinge Pin
41LABEL-BAFFLE (NON-ILLUSTRATED)
