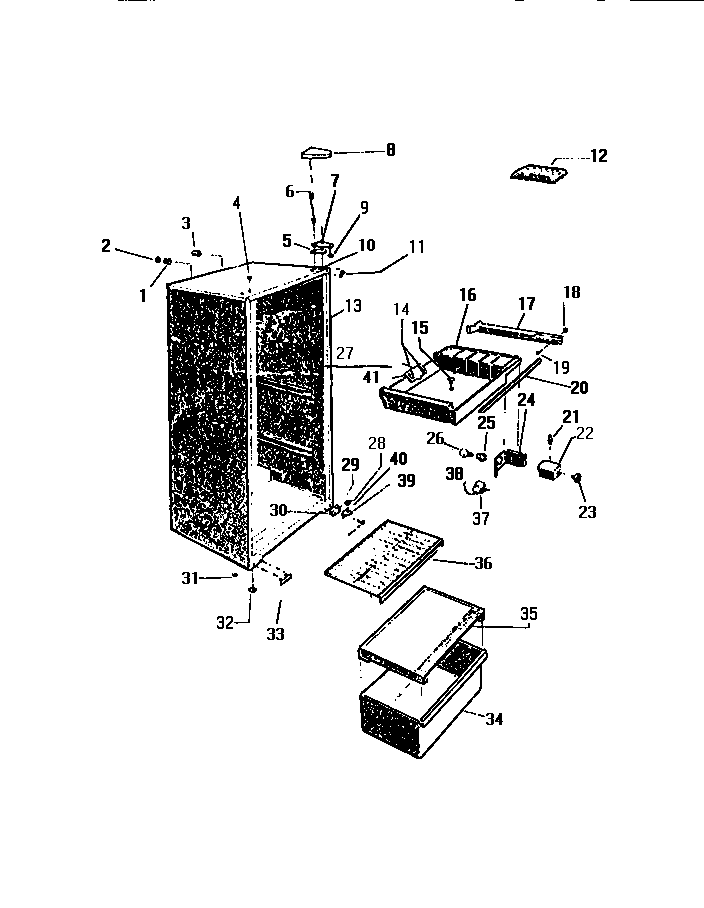

RC131GCW7 03 – CABINET, SHELVES, DIVIDER

Products

Position	Product
1	WCI G174733
2	WCI G174734
3	TUBE, INSULATION (2)
4	WCI G174747–01
5	WCI G183861
6	241710601 Frigidaire Refrigerator Screw
7	BRACKET, TOP HINGE
8	COVER HINGE, WHITE
9	WCI G103903
11	TRIM (4)
12	ICE TRAY
13	BUTTON, PLUG, LINER (2)
14	CLIP-CANOE (2) (NON-ILLUSTRATED)
15	STOPPER-RUBBER
16	DRIP TRAY
17	SUPPORT-TRAY RH
18	WCI G158229
19	5304455650 Frigidaire Refrigerator Screw
20	GASKET-TRAY (NON-ILLUSTRATED)
21	5309918806 Frigidaire Refrigerator Light Switch Door
22	WCI G163211-31
23	WCI G174781-17
24	BRACKET-CONTROL
25	SOCKET LIGHT
26	WCI Q63749
27	LABEL-BAFFLE (NON-ILLUSTRATED)
28	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
29	SHIM, HINGE
30	TAPPING PLATE (2)
31	NUT, ANCHOR (2)
32	LEG-LEVELING (2)
33	WCI G166912
34	PAN, STORAGE
35	COVER-CRISPER
36	SHELF-SLIDING (2)
37	CONTROL, TEMPERATURE
39	BRACKET, HINGE, LOWER
40	5303001321 Frigidaire Refrigerator Lower Hinge Pin
41	WCI G179612
