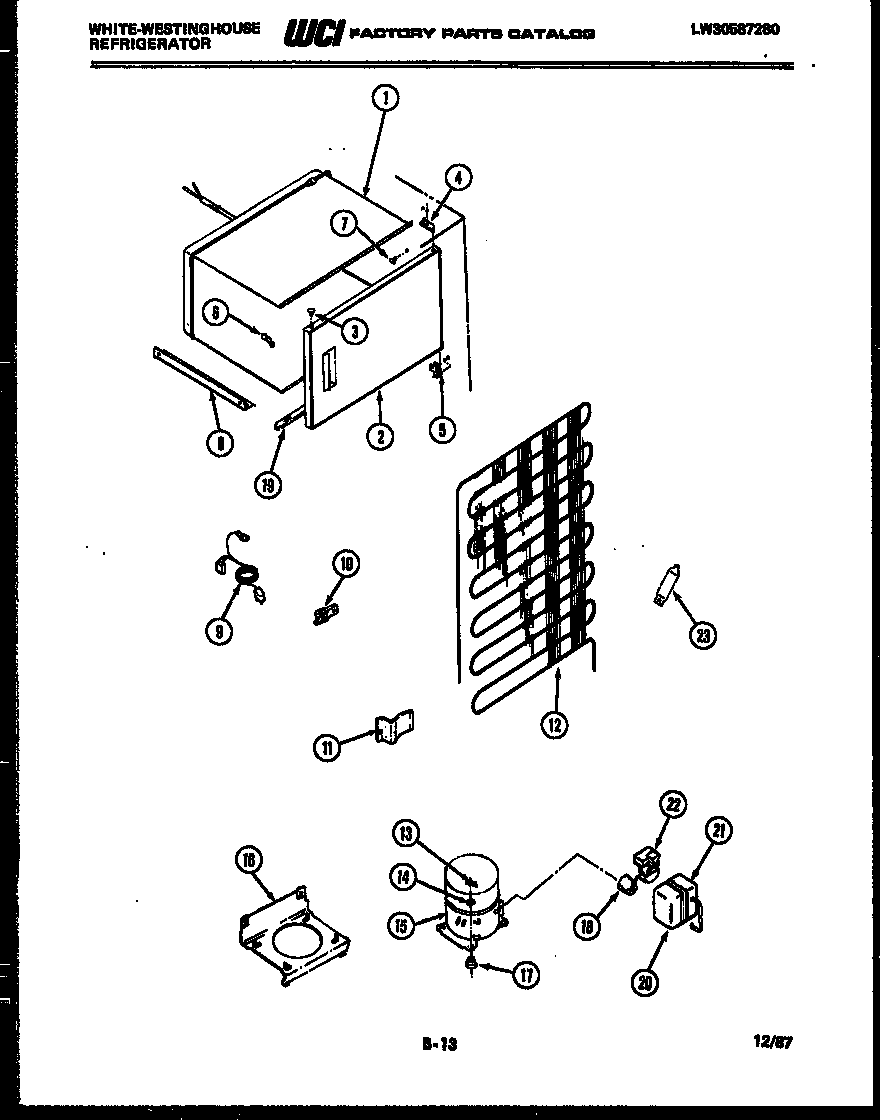

RC131GLW9 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*46132	HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
1	WCI G187582
1A	218843801 Frigidaire Refrigerator Screw
2	WCI G185370
3	WCI G173776
4B	5304455650 Frigidaire Refrigerator Screw
4	WCI G176746
4A	WCI G185054
5	WCI G185297
6A	5304455852 Frigidaire Refrigerator Screw
6	WCI G185059
6B	WASHER (2)
7	BUTTON, PLUG, LINER (2)
8	WCI G176753
9	CORD, SERVICE
10	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
11	BRACKET-CONDENSER MOUNTING (4)
11A	5308000039 Frigidaire Refrigerator Screw
12	WCI G169094
13	CLIP, COMPRESSOR MOUNTING (4)
14	WASHER, COMPRESSOR MOUNTING (4)
15	WCI G186041
16	WCI G162822
17	218513300 Frigidaire Refrigerator Compressor Mount Grommet
18	WCI G187467
19	WCI G181105
20	STRAP-COVER
21	WCI G185792
22	WCI G182225 14
23	5303305677 Frigidaire Replacement Filter Dryer Filters
