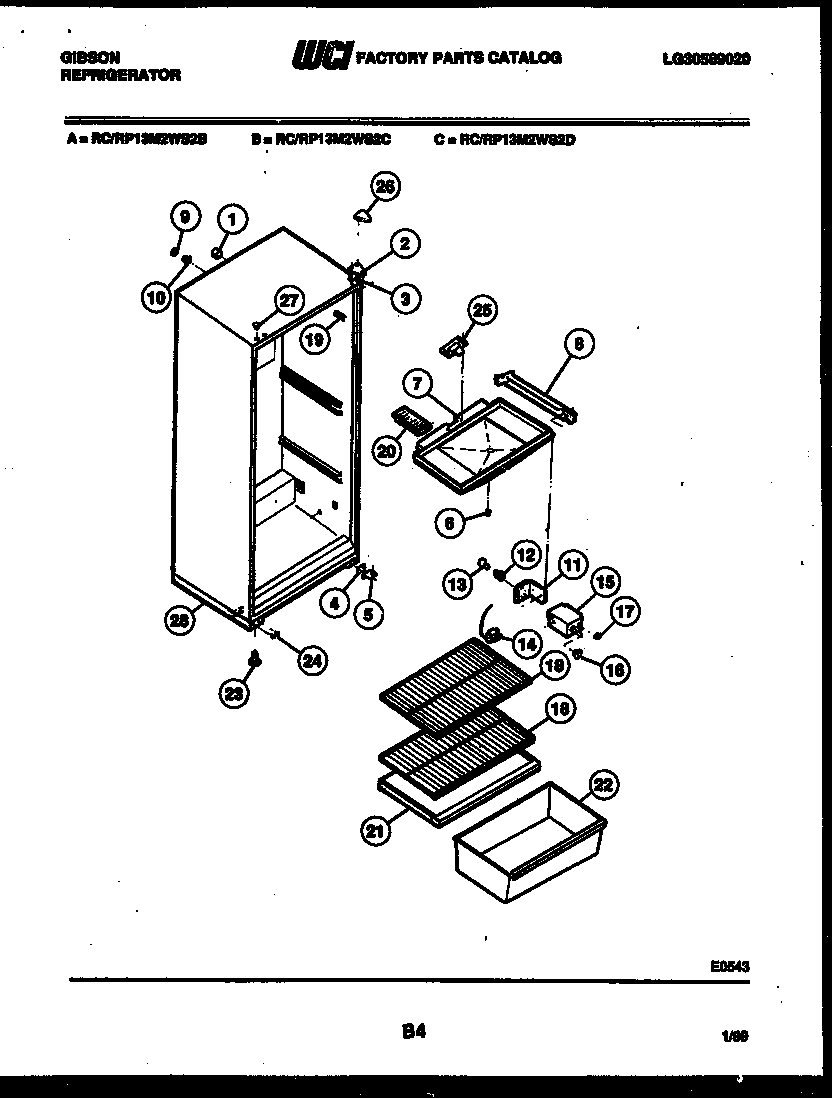

RC13M2WS2B 03 – CABINET PARTS

RC13M2WS2B 03 – CABINET PARTS

Written by

in

RC13M2WS2B 03 – CABINET PARTS

Products

PositionProduct
1TUBE, INSULATION (2)
2BRACKET, TOP HINGE
2A241710601 Frigidaire Refrigerator Screw
2BWCI G103903
3WCI G183861
4SHIM, HINGE
4ATAPPING, PLATE (2)
5BWASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
5BRACKET, HINGE, LOWER
5A5303001321 Frigidaire Refrigerator Lower Hinge Pin
6STOPPER-RUBBER
7DRIP TRAY
7AGASKET-TRAY (NON-ILLUSTRATED)
8SUPPORT-TRAY RH
9WCI G174734
10WCI G174733
11BRACKET-CONTROL
12SOCKET LIGHT
13316538904 Frigidaire Oven Lamp Light
14AWCI G107080
14WCI G162205-08
15ASCREW-GROUND (2) (NON-ILLUSTRATED)
15WCI G163211-31
16WCI G174781-03
175309918806 Frigidaire Refrigerator Light Switch Door
18SHELF (2)
19TRIM-CAB CORNER-AVOC
19TRIM, COFFEE
19TRIM, WHEAT
19TRIM (4)
19TRIM CORNER-ALMOND
20215667501 Frigidaire Refrigerator Ice Tray Primary
21COVER, CRISPER
22PAN, STORAGE
22AWCI G186183
23LEG-LEVELING (2)
23ANUT, ANCHOR (2)
24WCI G166912
25WCI G179612
25BLABEL-BAFFLE (NON-ILLUSTRATED)
25ACLIP-CANOE (2) (NON-ILLUSTRATED)
26COVER, TOP HINGE, ALMOND
26COVER, TOP HINGE, AVOCADO
26COVER HINGE, WHITE
26COVER HINGE, WHEAT
26COVER HINGE, COFFEE
27WCI G174747-09
27WCI G174747-10
27WCI G174747-11
27WCI G174747–01
27WCI G174747-08
28BASE-CABINET
