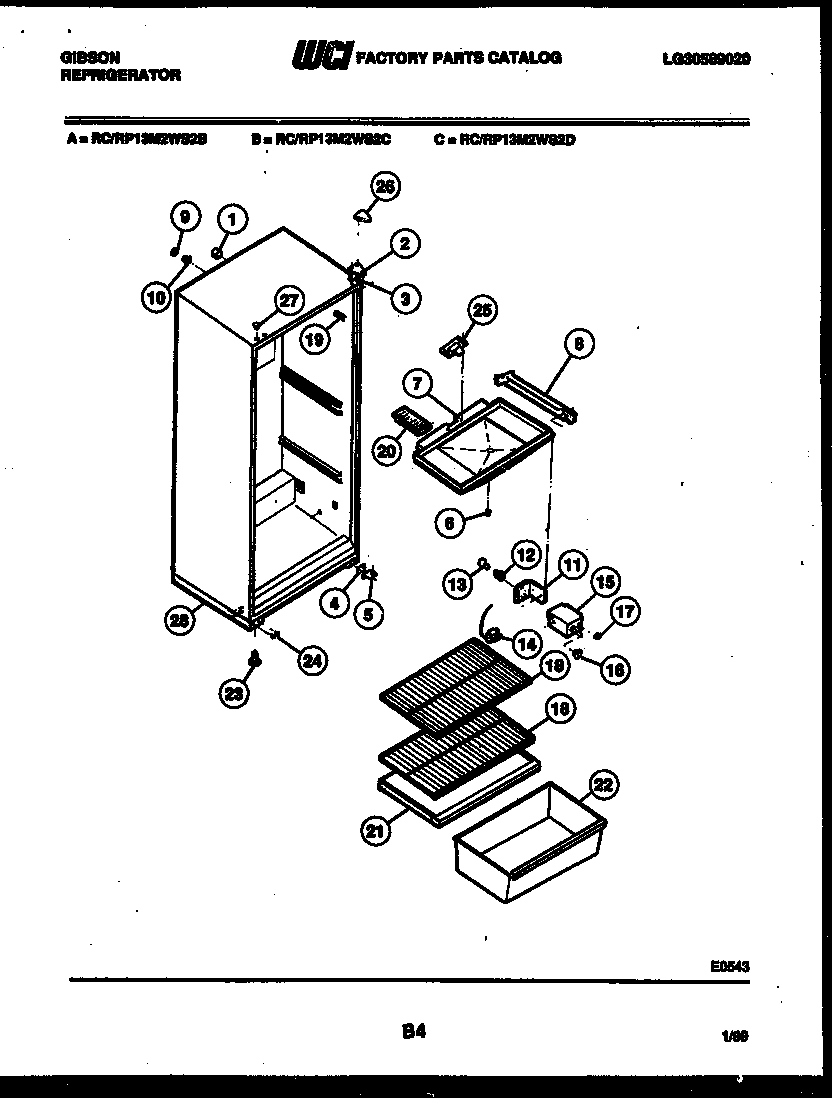

RC13M2WS2C 03 – CABINET PARTS

Products

Position	Product
1	TUBE, INSULATION (2)
2	BRACKET, TOP HINGE
2A	241710601 Frigidaire Refrigerator Screw
2B	WCI G103903
3	WCI G183861
4	SHIM, HINGE
4A	TAPPING, PLATE (2)
5B	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
5	BRACKET, HINGE, LOWER
5A	5303001321 Frigidaire Refrigerator Lower Hinge Pin
6	STOPPER-RUBBER
7	DRIP TRAY
7A	GASKET-TRAY (NON-ILLUSTRATED)
8	SUPPORT-TRAY RH
9	WCI G174734
10	WCI G174733
11	BRACKET-CONTROL
12	SOCKET LIGHT
13	316538904 Frigidaire Oven Lamp Light
14A	WCI G107080
14	WCI G162205-08
15A	SCREW-GROUND (2) (NON-ILLUSTRATED)
15	WCI G163211-31
16	WCI G174781-03
17	5309918806 Frigidaire Refrigerator Light Switch Door
18	SHELF (2)
19	TRIM-CAB CORNER-AVOC
19	TRIM, COFFEE
19	TRIM, WHEAT
19	TRIM (4)
19	TRIM CORNER-ALMOND
20	215667501 Frigidaire Refrigerator Ice Tray Primary
21	COVER, CRISPER
22	PAN, STORAGE
22A	WCI G186183
23	LEG-LEVELING (2)
23A	NUT, ANCHOR (2)
24	WCI G166912
25	WCI G179612
25B	LABEL-BAFFLE (NON-ILLUSTRATED)
25A	CLIP-CANOE (2) (NON-ILLUSTRATED)
26	COVER, TOP HINGE, ALMOND
26	COVER, TOP HINGE, AVOCADO
26	COVER HINGE, WHITE
26	COVER HINGE, WHEAT
26	COVER HINGE, COFFEE
27	WCI G174747-09
27	WCI G174747-10
27	WCI G174747-11
27	WCI G174747--01
27	WCI G174747-08
28	BASE-CABINET
