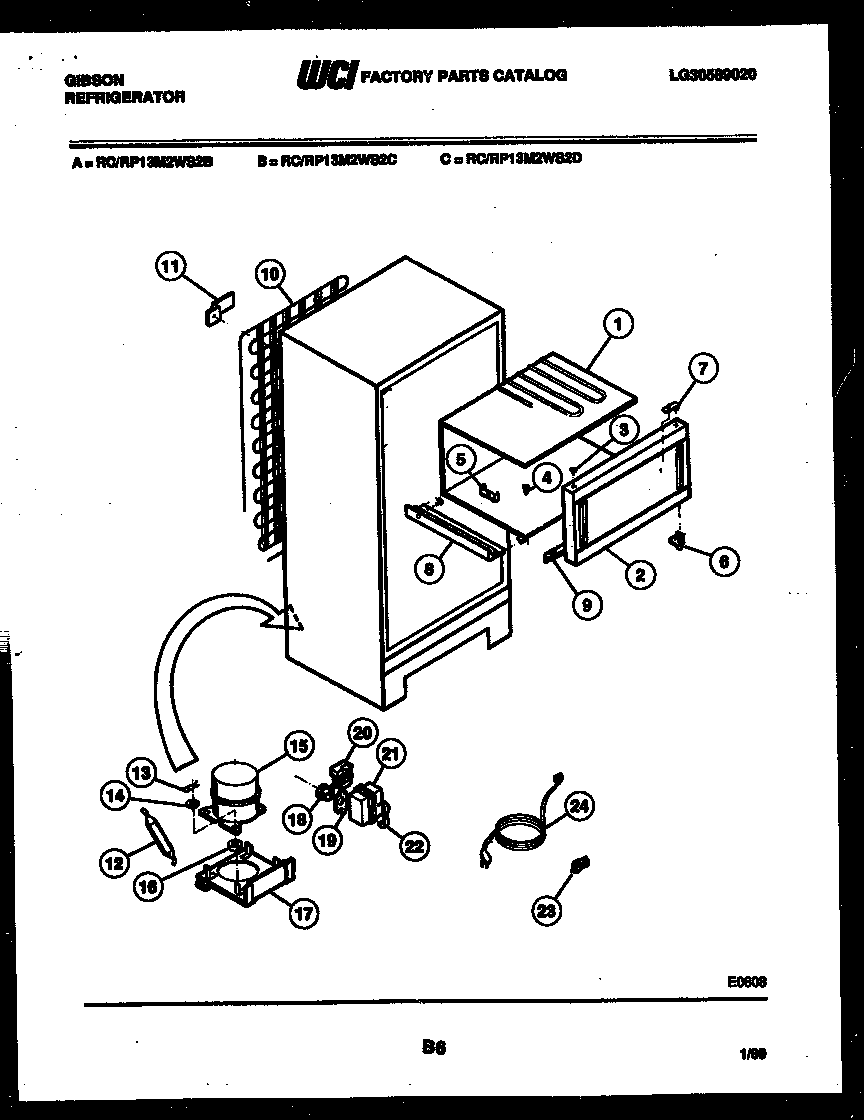

RC13M2WS2C 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*16462	WCI G177673
1	WCI G187582
2A	WCI G185054
2	WCI G186193
3	WCI G173776
4	BUTTON, PLUG, LINER (2)
5	WCI G185059
6	WCI G185297
6B	WASHER (2)
7A	5304455650 Frigidaire Refrigerator Screw
7	WCI G176746
8A	5304455852 Frigidaire Refrigerator Screw
8	WCI G176753
9	WCI G181105
10	WCI G169094
11A	5308000039 Frigidaire Refrigerator Screw
11	BRACKET-CONDENSER MOUNTING (4)
11B	WCI G164280
12	5303305677 Frigidaire Replacement Filter Dryer Filters
13	CLIP, COMPRESSOR MOUNTING (4)
14	WASHER, COMPRESSOR MOUNTING (4)
15	WCI G187466
16	218513300 Frigidaire Refrigerator Compressor Mount Grommet
17	WCI G162822
18	WCI G187467
20	WCI G182225 14
21	WCI G185792
22	STRAP-COVER
23	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
24	CORD, SERVICE
