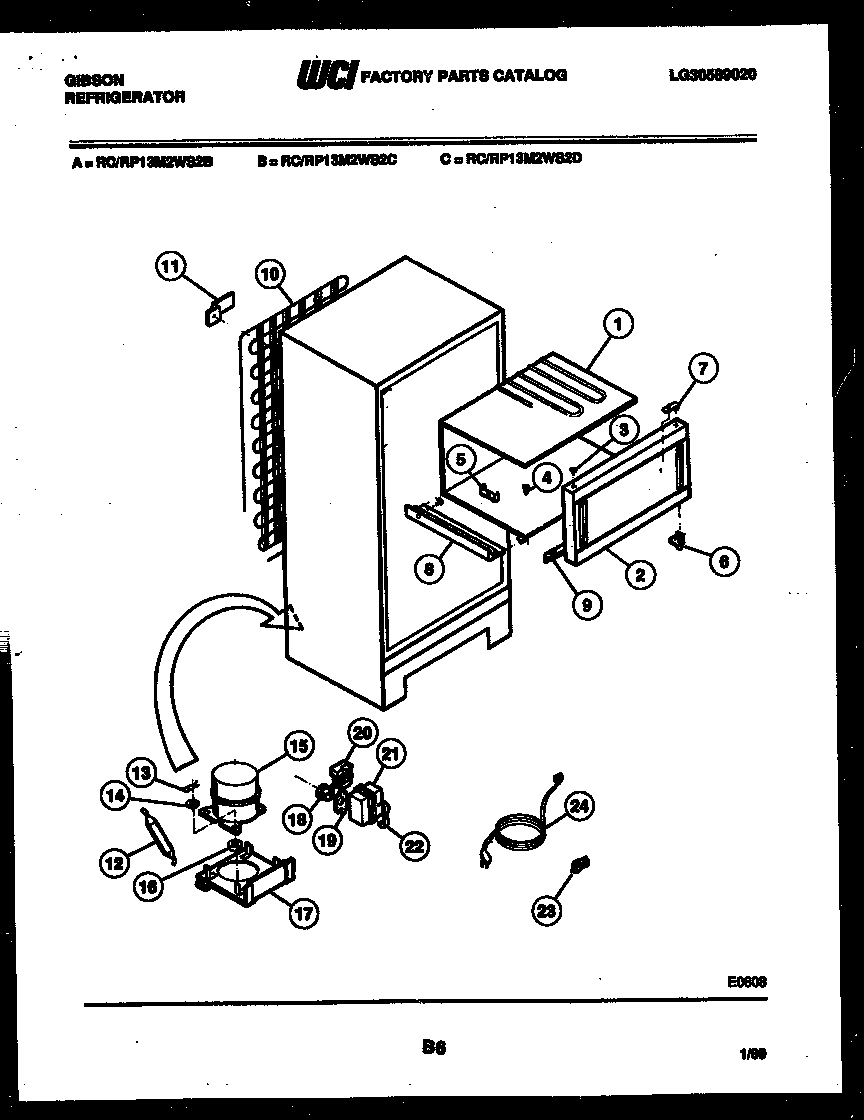

RC13M2WS2D 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*16462WCI G177673
1WCI G187582
2AWCI G185054
2WCI G186193
3WCI G173776
4BUTTON, PLUG, LINER (2)
5WCI G185059
6WCI G185297
6BWASHER (2)
7A5304455650 Frigidaire Refrigerator Screw
7WCI G176746
8A5304455852 Frigidaire Refrigerator Screw
8WCI G176753
9WCI G181105
10WCI G169094
11A5308000039 Frigidaire Refrigerator Screw
11BRACKET-CONDENSER MOUNTING (4)
11BWCI G164280
125303305677 Frigidaire Replacement Filter Dryer Filters
13CLIP, COMPRESSOR MOUNTING (4)
14WASHER, COMPRESSOR MOUNTING (4)
15WCI G187466
16218513300 Frigidaire Refrigerator Compressor Mount Grommet
17WCI G162822
18WCI G187467
20WCI G182225 14
21WCI G185792
22STRAP-COVER
235303001199 Frigidaire Refrigerator Wiring Harness Clamp
24CORD, SERVICE
