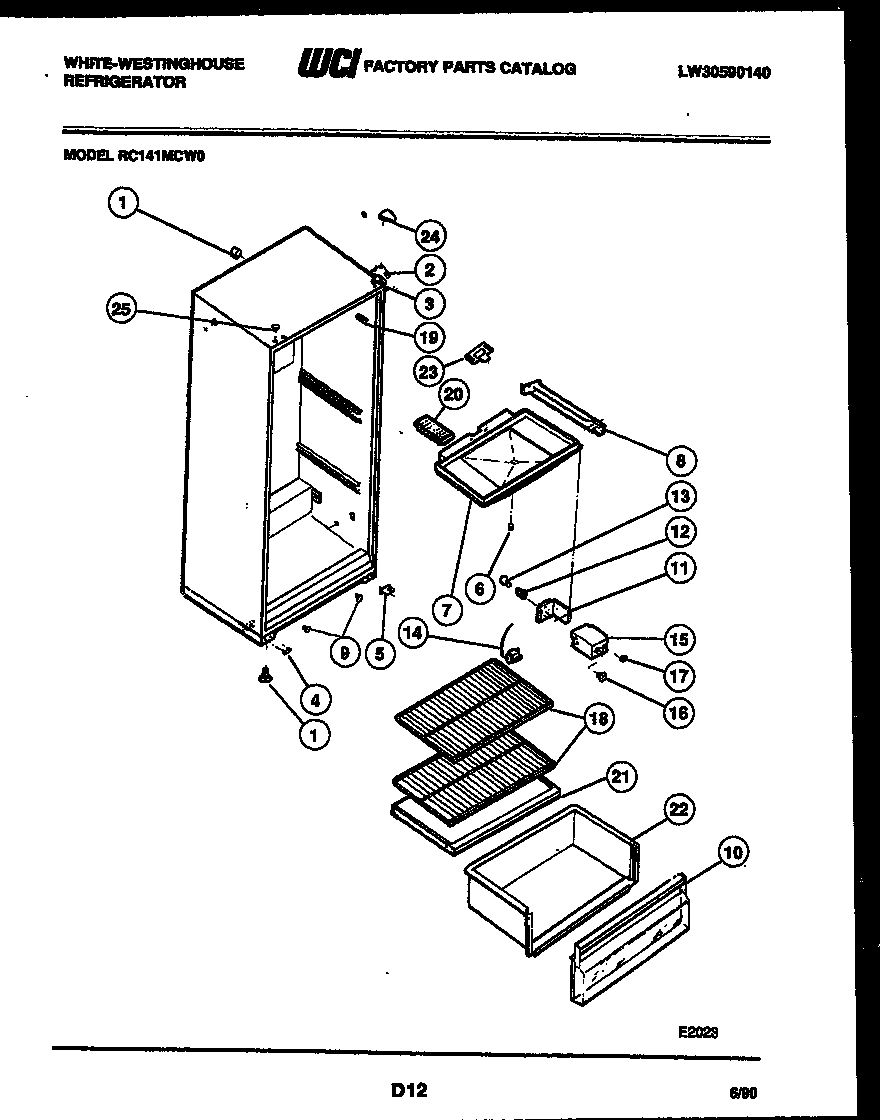

RC141MCW0 03 – CABINET PARTS

Products

Position	Product
1	SCREW-LEVELING, (2)
2B	WASHER, .34 X .62 X .05, NYLON
2	WCI 3206100
3	SHIM - UPPER HINGE
4A	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
4	WCI 3206135
5B	WASHER, .28 X .62 X .19, NYLON
5A	5303001321 Frigidaire Refrigerator Lower Hinge Pin
5	WCI 3206136
5C	241710601 Frigidaire Refrigerator Screw
6	WCI 08009779
7A	WCI 5300179982
7	WCI 5317766801
8A	5304455650 Frigidaire Refrigerator Screw
8	WCI 5300163217
9	PLUG-BUTTON
10	WCI 3206106
11	WCI 5300163210
11A	5304455852 Frigidaire Refrigerator Screw
12	SOCKET-LIGHT/LAMP
13	316538904 Frigidaire Oven Lamp Light
14A	WCI 5303001260
14	WCI 5316266703
15A	SCREW-MOUNTING (2) (NON-ILLUSTRATED)
15	WCI 5303209951
16	WCI 5303209953
17	5309918806 Frigidaire Refrigerator Light Switch Door
18	WCI 5303209934
19	TRIM-CABINET CORNER, WHITE
20	215667501 Frigidaire Refrigerator Ice Tray Primary
21	WCI 5303209935
22	PAN-CRISPER, FULL-WIDTH
23B	WCI 5300179540
23	WCI 5300179612
23A	WCI 5300183114
24	WCI 3206101
25	PLUG-BUTTON, WHITE
