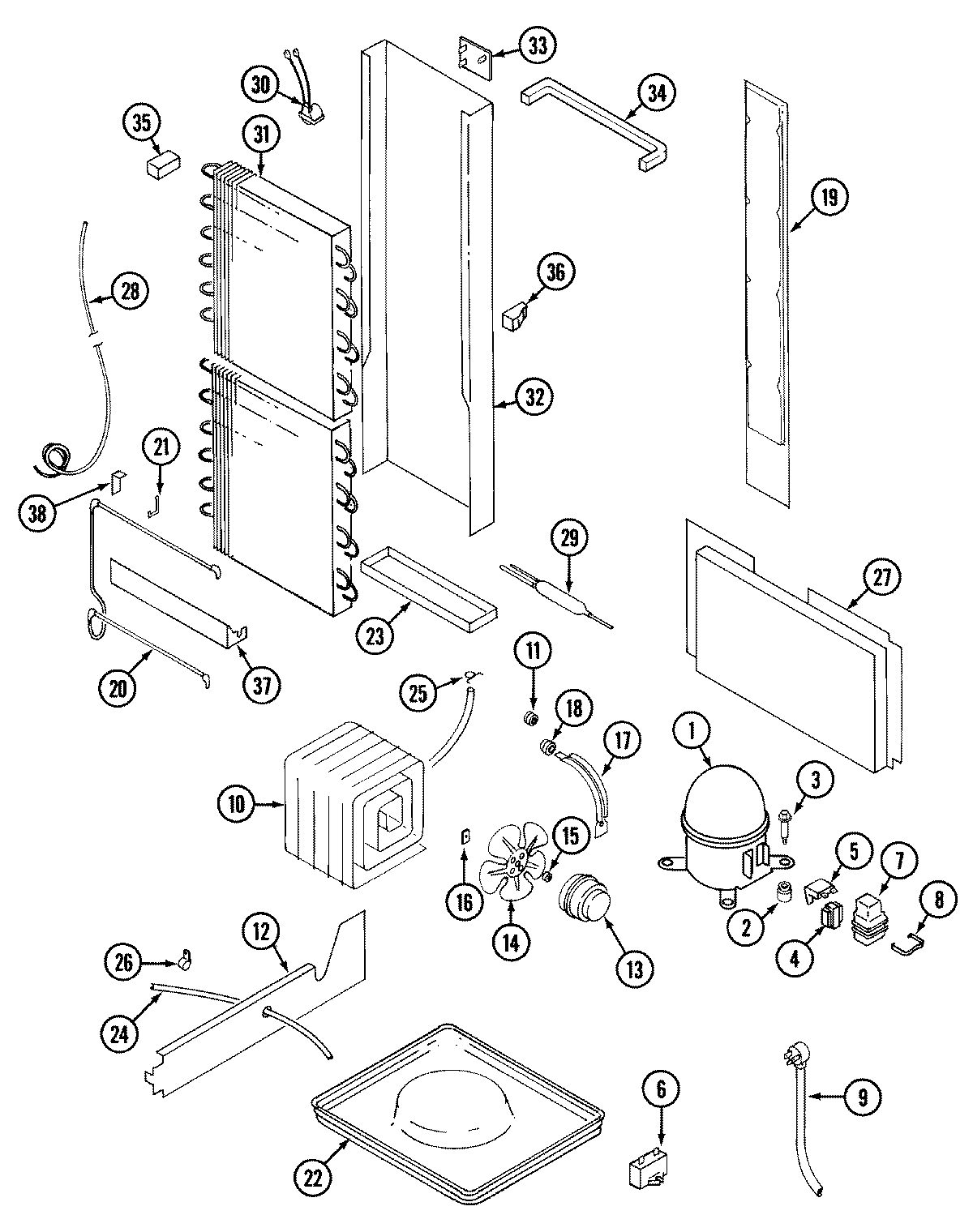

RC223AM 09 – UNIT COMPARTMENT & SYSTEM

Products

Position	Product
1	MAY 69062-1
1	W10309995 Whirlpool Refrigerator Compressor
1	MAY 12000006
1	MAY 61001017
2	MAY 17245-4
3	MAY 65275-9
4	WP10097202 Whirlpool Refrigerator Start Device
4	WP10097204 Whirlpool Start Relay
5	MAY 69105-3
5	MAY 61001785
6	WP65889-4 Whirlpool Refrigerator Capacitor
6	WP2262343 Whirlpool Refrigerator/Freezer Capacitor
7	MAY 61002020
7	MAY 69754-1
8	MAY 59596-1
8	MAY 61002620
9	MAY 52890-3
10	MAY 60408-2
10	MAY 414001-1
10	MAY 64998-1
11	MAY 53351-1
12	MAY 61001515
12	WP488729 Whirlpool Refrigerator Door Screw
13	833697 Whirlpool Condenser Fan Motor
13	MAY 65275-33
13	MAY 61001018
14	WP12587601 Whirlpool Refrigerator Condenser Blade
15	MAY 69063-1
16	WP486692 Whirlpool Refrigerator Nut
17	MAY 69181-1
18	MAY 56933-1
19	MAY 70267-2
19	MAY 66381-1
20	MAY 61001139
21	MAY 52067-1
23	MAY 53523-1
24	MAY 26911-18
25	WP596669 Whirlpool Hose Clamp
26	MAY 53516-5
27	MAY 61001228
27	MAY 65275-5
28	MAY 65013-25
28	MAY 26088-23
29	MAY 13900
30	MAY 52085-29
31	MAY 52551-21
32	MAY 68834-1
33	MAY 55878-1
34	MAY 66325-17
35	MAY 65063-1
36	MAY 65064-1
37	WP489478 Whirlpool Refrigerator Screw
37	MAY 29915-12
38	MAY 52561-1
39	MAY 108429-3
