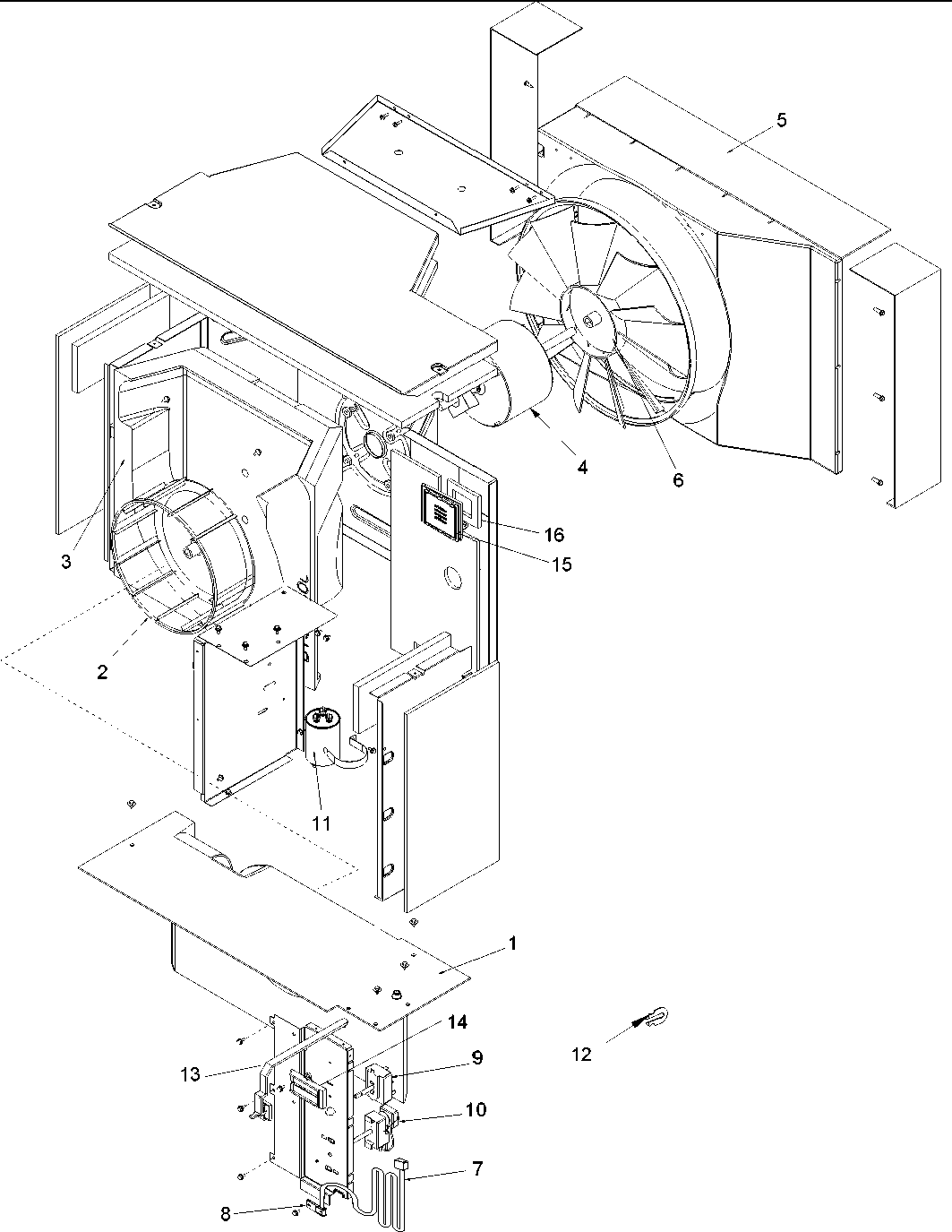

RC24087C2D 01 – Center Partition Assy and Controls

RC24087C2D 01 – Center Partition Assy and Controls

Written by

in

RC24087C2D 01 – Center Partition Assy and Controls

Products

PositionProduct
ORDER GRAPHICS PANEL FROM THE SOURCE WHERE THE DRYER WAS PURCHASED. INCLUDE THECOMPLETE MODEL AND SERIAL NUMBERS WITH ORDER.
NIMAY 3093200S
1MAY BT3010004
2MAY BT1368016
3MAY BT3006004
4MAY BT1340005
5MAY BT3011002
6MAY BT1086706
7MAY BT1210006
8MAY BT1393401
9MAY BT1370803
10MAY BT1370801
11MAY BT9457005
12MAY BT1531802
13MAY BT3076219
14MAY BT3076302
15MAY BT3076100
16MAY BT1392611
